D-Link DWL-8610AP User Manual

Viewing Multicast Forwarding Database Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 241
D-Link UWS User Manual
MFDB MLD Snooping Table
Use the MLD Snooping Table page to view all of the entries in the Multicast Forwarding Database that were
created for MLD Snooping.
To access the MLD Snooping Table page, click LAN > Monitoring> Multicast Forwarding Database > MLD
Snooping Table in the navigation tree.

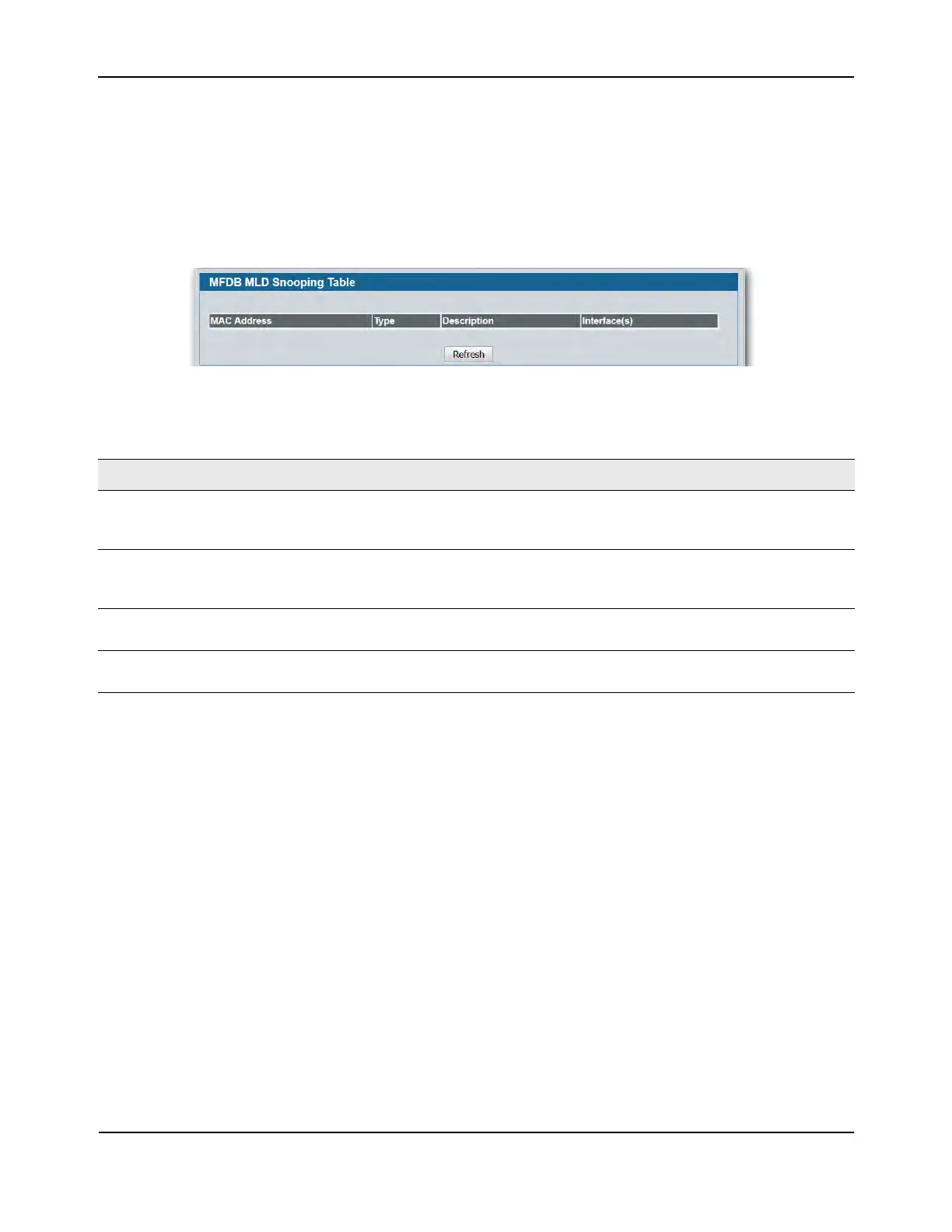

Figure 146: MFDB MLD Snooping Table
• Click Refresh to update the information on the screen with the most current data.
• Click Clear Entries to tell the MLD Snooping component to delete all of its entries from the multicast
forwarding database.
Table 130: MLD Snooping Table Fields
Field Description
MAC Address A VLAN ID/multicast MAC address pair for which the switch has forwarding
and or filtering information. The format is 8 two-digit hexadecimal numbers
that are separated by colons, for example, 00:01:23:45:67:89:AB:CD.
Type This displays the type of the entry. Static entries are those that are configured
by the end user. Dynamic entries are added to the table as a result of a
learning process or protocol.
Description The text description of this multicast table entry. Possible values are
Management Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering
(Flt) for the associated address.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
