D-Link DWL-8610AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 533
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
WDS AP Group Status
The WDS AP Group Status page displays detailed information about the configured APs and links in the WDS
Group. From this page, you can also send a new password to group members.

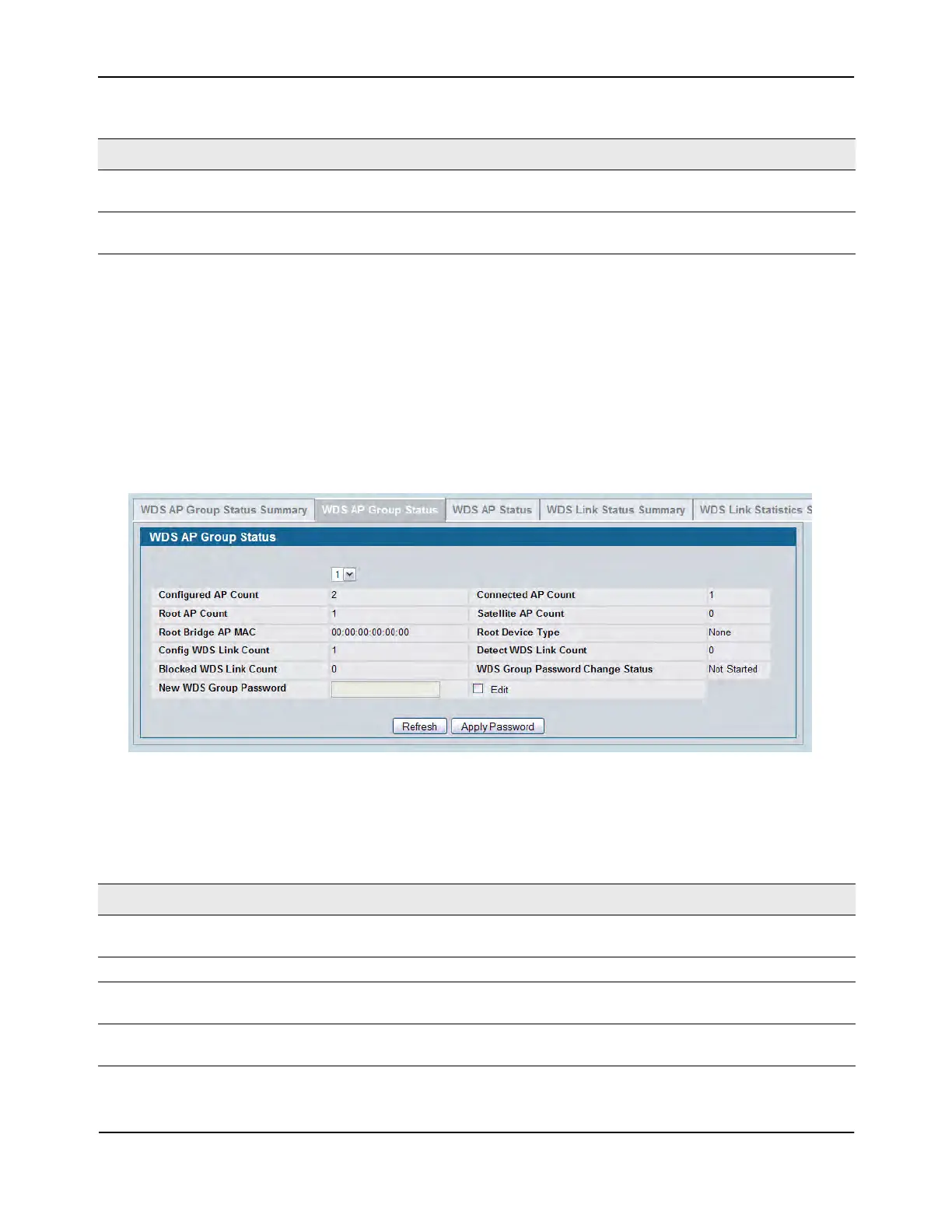

Figure 352: WDS AP Group Status
The following table describes the fields on the WDS AP Group Status page.
Configured WDS Link
Count
Number of configured bidirectional links in the WDS AP group.
Detected WDS Links
Count
Number of WDS links detected in the system. APs on both sides of the link must
detect each other in order for the link to be counted.
Table 320: WDS AP Group Status
Field Description
Group ID Use the drop-down menu above the fields to select the group number that identifies
the configured WDS AP group.
Configured AP Count Number of APs configured in this WDS AP group
Connected AP Count Number of APs managed by the switch that are members of this WDS AP group. This
number is the sum of the connected root APs and connected satellite APs.
Root AP Count Number of root APs currently being managed by the switch that are members of this
WDS AP group.
Table 319: WDS Group Status Summary (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
