D-Link DWL-8610AP User Manual

Understanding the User Interfaces
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 58
D-Link UWS User Manual
Click the port you want to view or configure to see a menu that displays statistics and configuration options.
Click the menu option to access the page that contains the configuration or monitoring options.

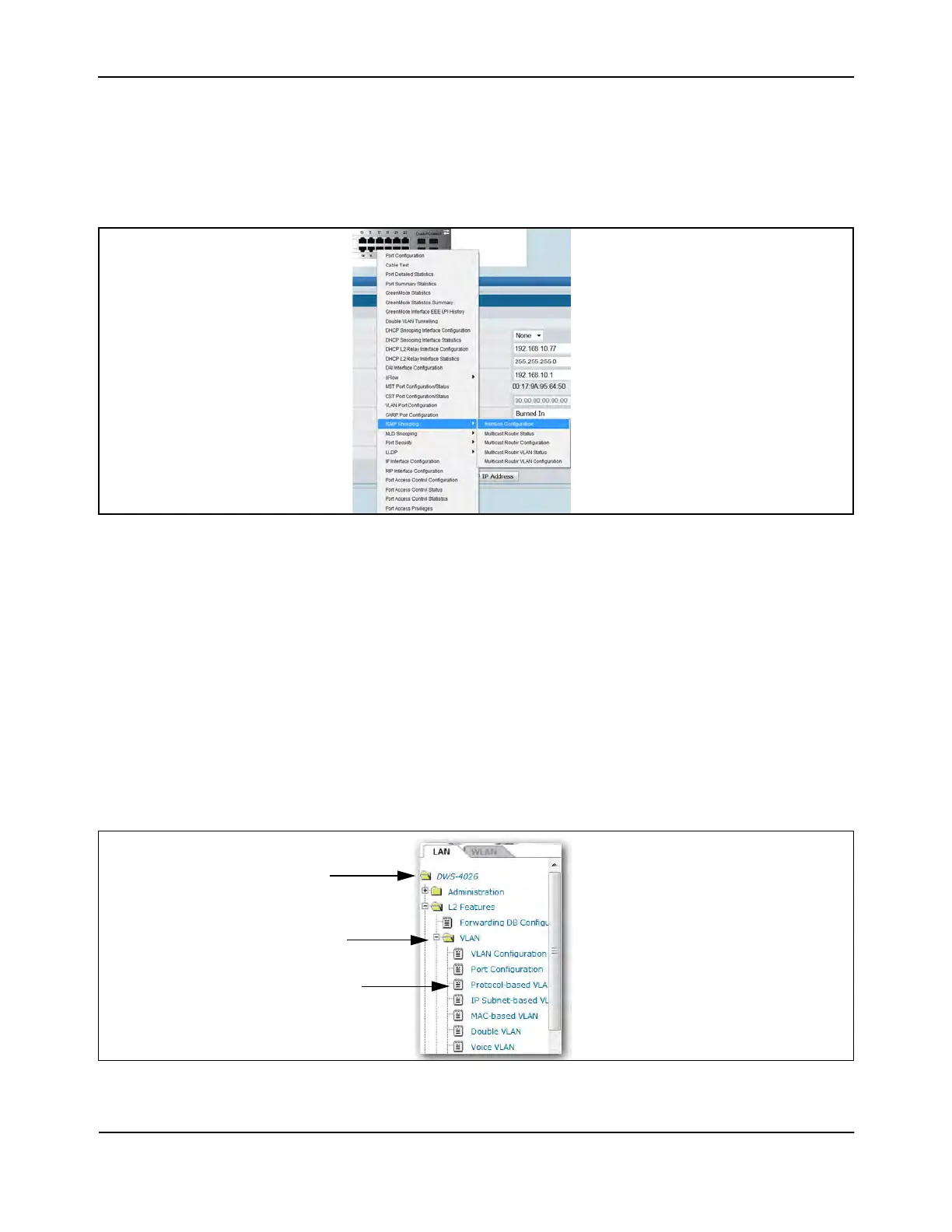

If you click the graphic but do not click a specific port, the main menu appears, as Figure 3 shows. This menu
contains the same option as the navigation menu on the left side of the page.
Figure 3: Cascading Navigation Menu
Navigation Tree View
The hierarchical-tree view is on the left side of the Web interface. The tree view contains a list of various device
features. The branches in the navigation tree can be expanded to view all the components under a specific
feature, or retracted to hide the feature's components.
The tree consists of a combination of folders, subfolders, and configuration and status HTML pages. Click the
folder to view the options in that folder. Each folder contains either subfolders or HTML pages, or a
combination of both. Figure 4 shows an example of a folder, subfolder, and HTML page in the navigation
menu. When you click a folder or subfolder that is preceded by a plus sign (+), the folder expands to display
the contents. If you click an HTML page, a new page displays in the main frame. A folder or subfolder has no
corresponding HTML page.
Figure 4: Navigation Tree View
Folder
Subfolder
HTML Page

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
