D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 197
D-Link UWS User Manual
Double VLAN Tunneling Summary
The Double VLAN Tunneling Summary page shows the double VLAN tunneling configuration status for all ports
on the system.
To access the Double VLAN Tunneling Summary page, click LAN > Monitoring > VLAN Summary > Double VLAN
Status in the navigation tree.

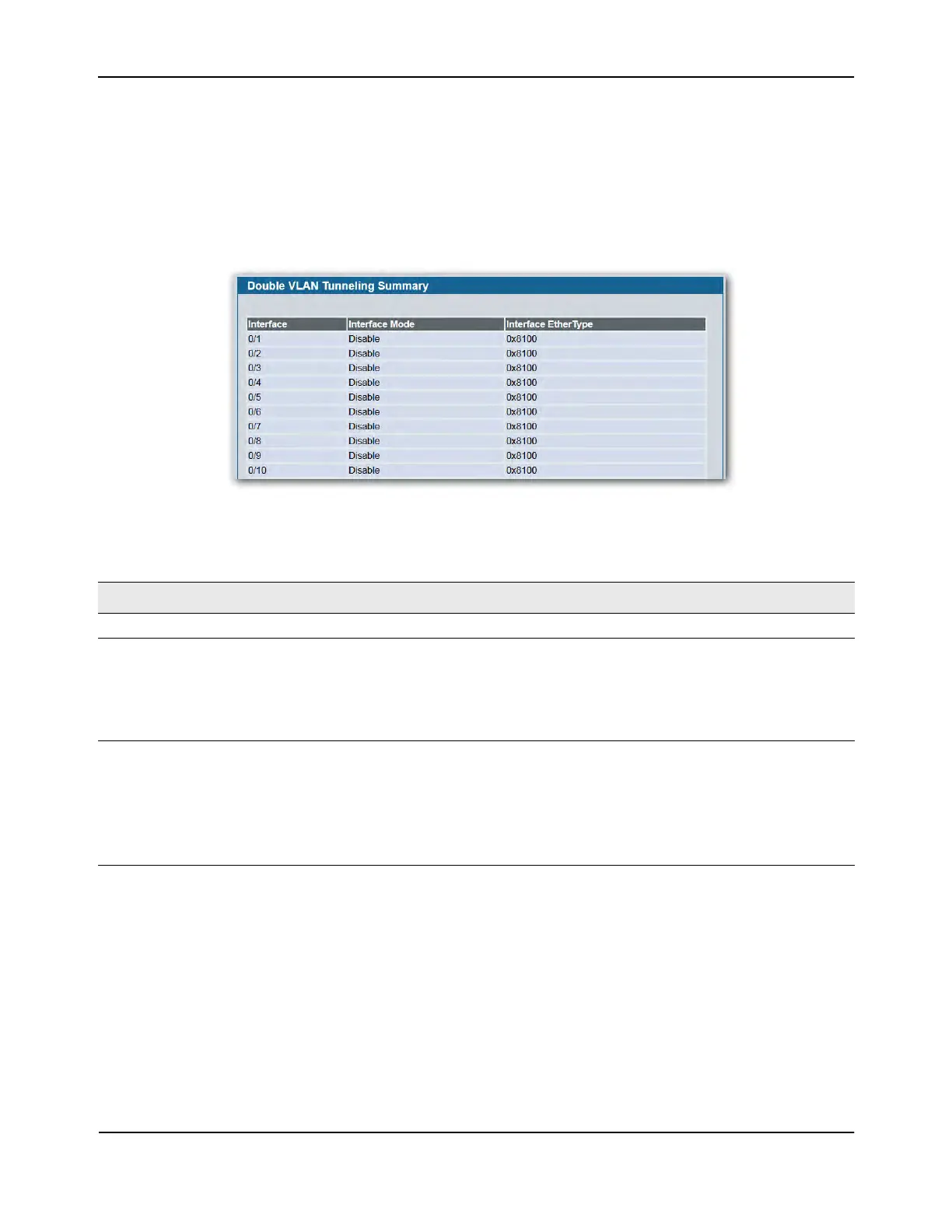

Figure 107: Double VLAN Tunneling Summary
• Click Refresh to display the most current information from the router.
Table 93: Double VLAN Tunneling Summary Fields
Field Description
Interface Select the physical interface for which you want to display or configure data.
Interface Mode This specifies the administrative mode for Double VLAN Tagging:
• Enable: Double VLAN Tagging is enabled for the specified port (or All
ports).
• Disable: Double VLAN Tagging is disabled for the specified port (or All
ports), which is the default value.
EtherType The two-byte hex EtherType to be used as the first 16 bits of the Double VLAN
tag:
• 802.1Q Tag: Commonly used tag representing 0x8100
• vMAN Tag: Commonly used tag representing 0x88A8
• Custom Tag: Indicates that a custom tag has been configured and displays
its value.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
