IP ACL Rule Summary
Use the IP ACL Rule Summary page to view a summary of the IP ACLs that have been configured on the switch.
To access the page, click LAN > Monitoring > Access Control Lists > IP Access Control Lists > Summary.

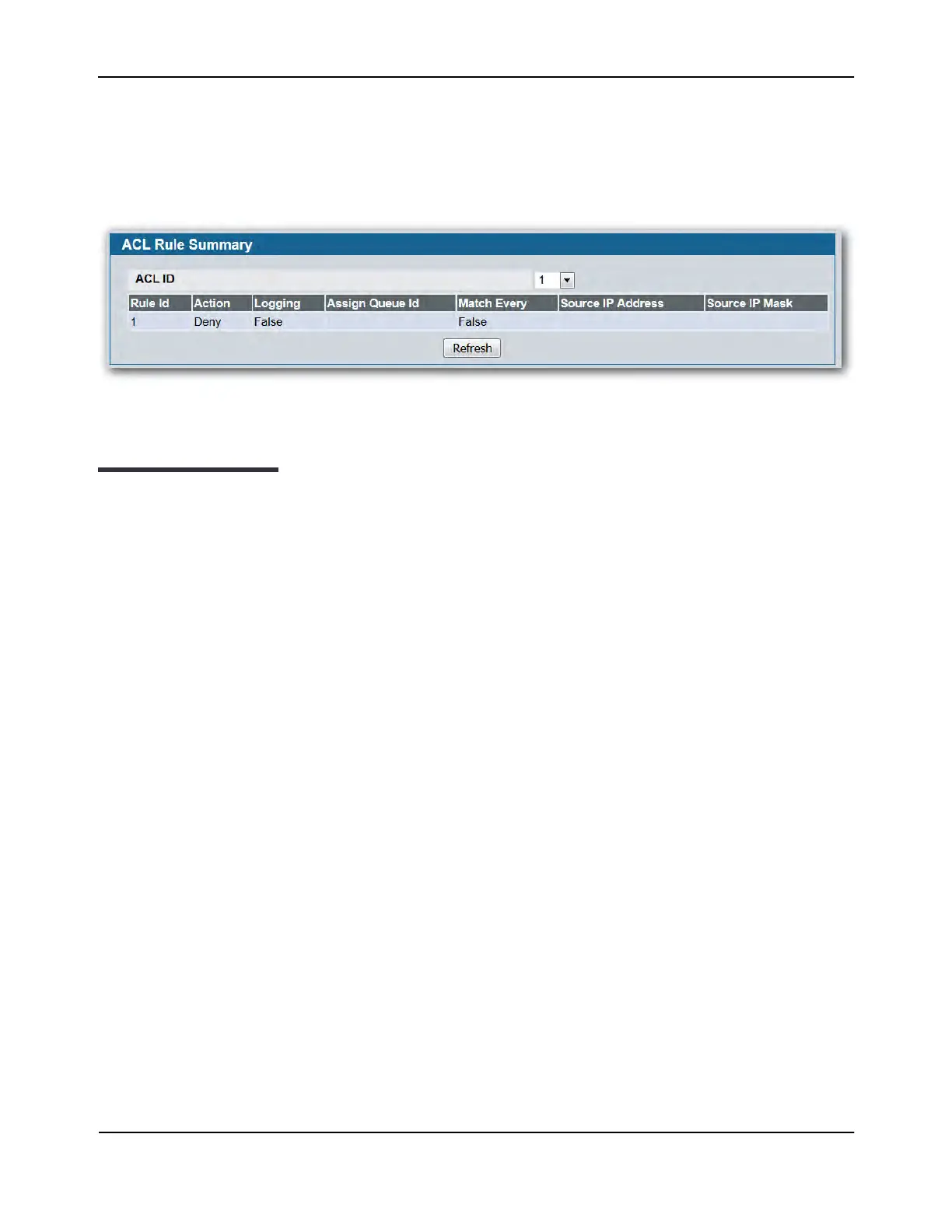

Figure 243: IP ACL Rule Summary
MAC Access Control Lists
A MAC ACL consists of a set of rules which are matched sequentially against a packet. When a packet meets
the match criteria of a rule, the specified rule action (Permit/Deny) is taken and the additional rules are not
checked for a match. On this menu the interfaces to which an MAC ACL applies must be specified. Rules for
the MAC ACL are specified/created using the MAC ACL Rule Configuration menu.
To configure a MAC ACL:
1. Use the “MAC ACL Configuration” page to define the ACL type and assign an ID to it.
2. Use the “MAC ACL Rule Configuration” page to create rules for the ACL.
3. Use the “ACL Interface Configuration” to assign the ACL by its ID number to a port or VLAN.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
