D-Link DWL-8610AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 501
D-Link UWS User Manual
Command Buttons
The page includes the following buttons:
• Disassociate—Disassociates the client from the managed AP.
• Refresh—Updates the page with the latest information.
Viewing Associated Client QoS Status
The WLAN > Monitoring > Client > Associated Clients > Client QoS page for the associated client status shows
information about the bandwidth restrictions for each client associated to an AP managed by the switch. Use
the menu above the table to select the MAC address of the client with the information to view.

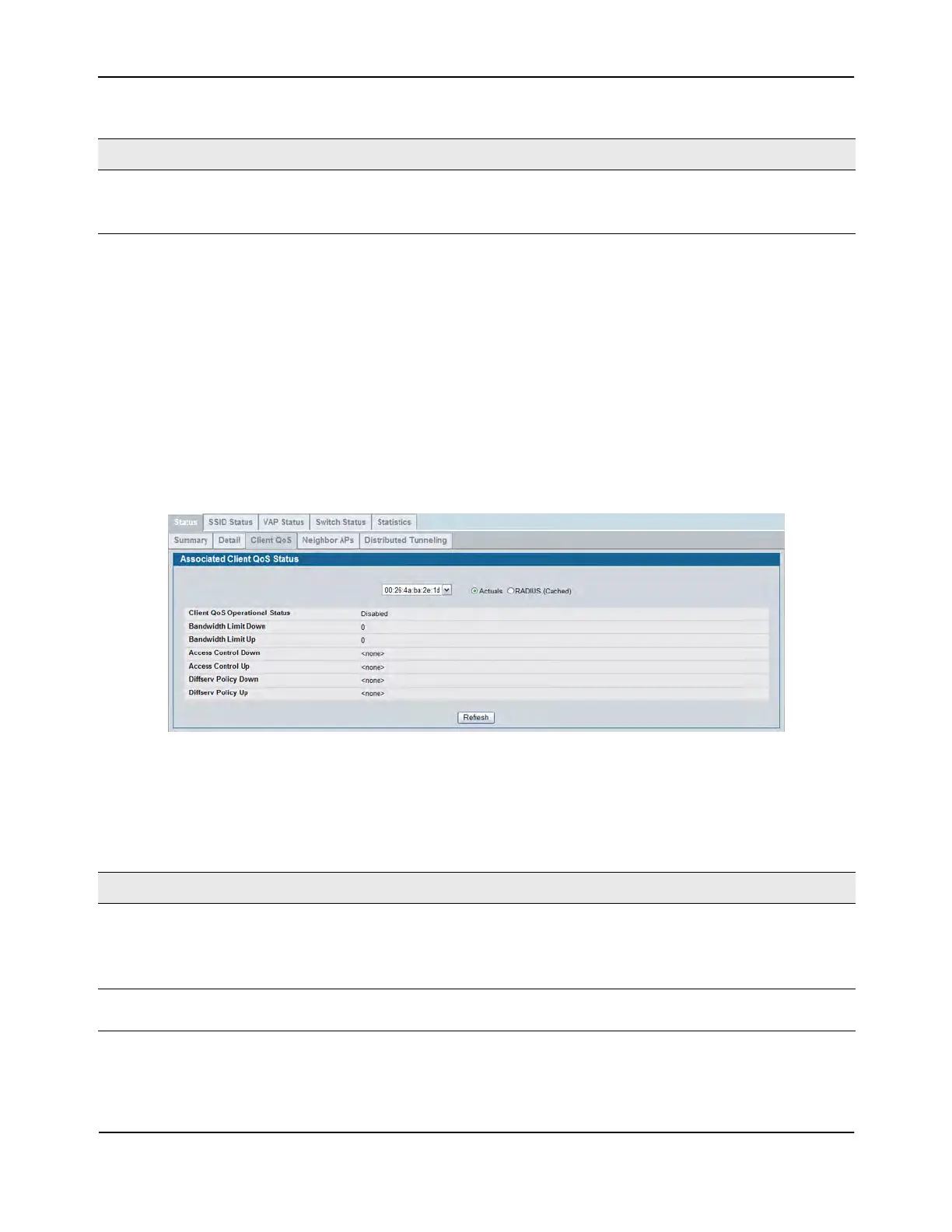

Figure 326: Associated Client QoS Status
Table 294 on page 501 describes the information available on the Client QoS page for the associated client
status.
Captive Portal If client is authenticated via Captive Portal, this field contains a link to the associated
Captive Portal client status page.
Note: This field is visible only for Captive Portal-enabled switch configurations.
Table 294: Associated Client QoS Status
Field Description
Actual
RADIUS (Cached)
Use the selector to determine the source of the information the page displays:
• Select Actual to display either the actual status parameters configured on the AP.
• Select RADIUS (Cached) to display any client QoS parameters that were obtained
for the client from a RADIUS server when using 802.1X authentication.
Client QoS Operational
Status
Shows whether QoS is enforced for the client.
Table 293: Detailed Associated Client Status (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
