Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing Detailed Associated Client Session Statistics
The statistics on the WLAN > Monitoring > Client > Associated Clients > Statistics > Session Detail page show
information about the traffic a wireless client receives and transmits while it is connected to the same WLAN
network shared by APs that the switch manages. Use the menu above the table to view details about an
associated client. Each client is identified by its MAC address.

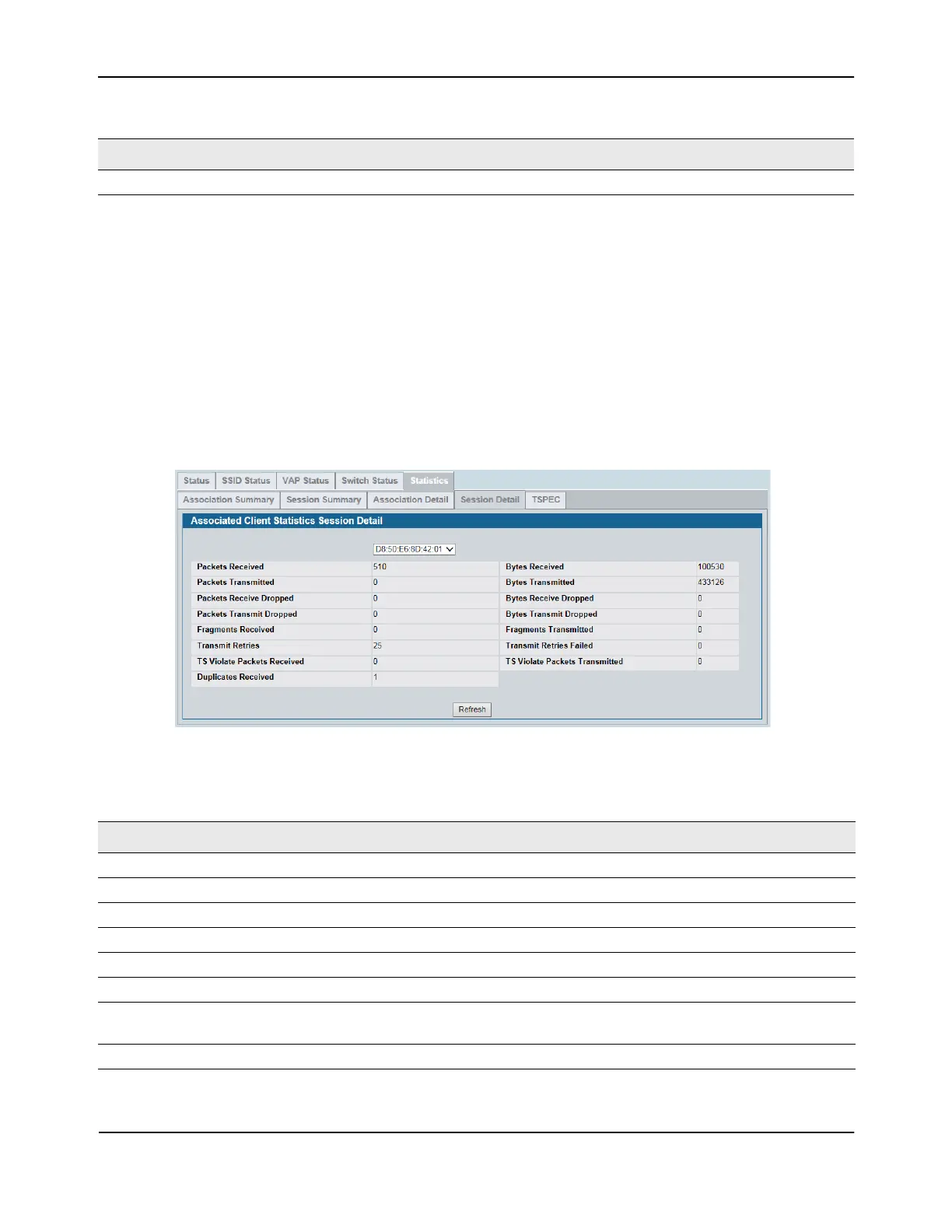

Figure 337: Associated Client Session Detail Statistics
Duplicates Received Total duplicate packets received from the client station.
Table 305: Associated Client Session Detail Statistics
Field Description
Packets Received Total packets received from the client station.
Bytes Received Total bytes received from the client station.
Packets Transmitted Total packets transmitted to the client station.
Bytes Transmitted Total bytes transmitted to the client station.
Packets Receive Dropped Number of packets received from the client station that were dropped.
Bytes Receive Dropped Number of bytes received from the client station that were dropped.
Packets Transmit Dropped Number of packets transmitted to the client station that were
dropped.
Bytes Transmit Dropped Number of bytes transmitted to the client station that were dropped.
Table 304: Associated Client Association Detail Statistics (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
