IP Address
The network interface is the logical interface used for in-band connectivity with the switch via any of the
switch's front panel ports. The configuration parameters associated with the switch's network interface do not
affect the configuration of the front panel ports through which traffic is switched or routed.
The Network Connectivity page allows you to change the IP information using the Web interface.
To access the page, click LAN > Administration > IP Address in the navigation tree.
Note that the page displays differently depending on the IP protocol version chosen.

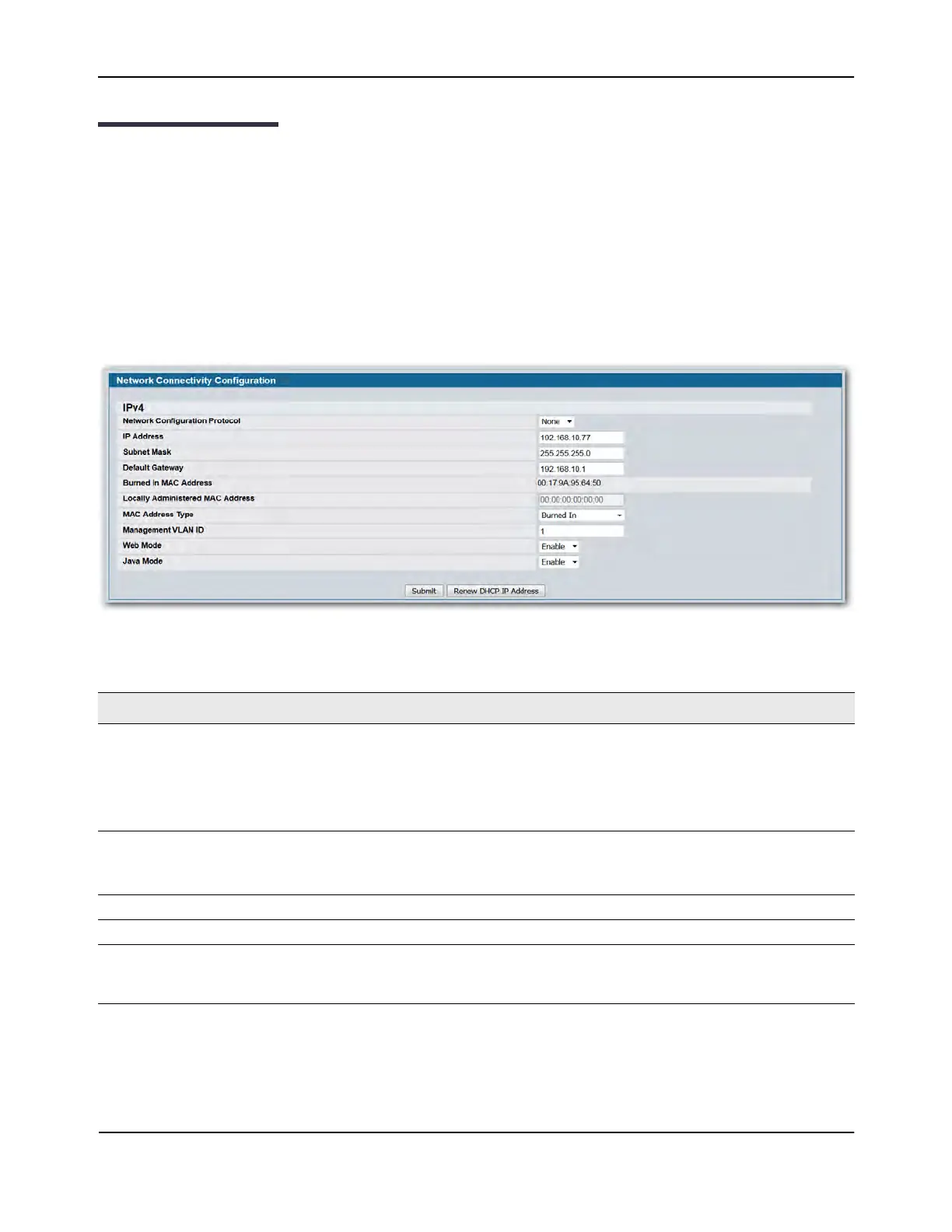

Figure 15: Network Connectivity
Table 10: Network Connectivity Fields
Field Description
Network Configuration
Protocol Current
Specify what the switch should do following power-up. The factory default is
None. The options are as follows:
• BootP: Transmit a Bootp request
• DHCP: Transmit a DHCP request
• None: Do not send any requests following power-up.
IP Address The IP address of the network interface. The factory default value is 0.0.0.0
Note: Each part of the IP address must start with a number other than zero.
For example, IP addresses 001.100.192.6 and 192.001.10.3 are not valid.
Subnet Mask The IP subnet mask for the interface. The factory default value is 0.0.0.0.
Default Gateway The default gateway for the IP interface. The factory default value is 0.0.0.0.
Burned-in MAC Address This read-only field displays the MAC address that is burned-in to the network
card at the factory. This MAC address is used for in-band connectivity if you
choose not to configure a locally administered address.
