Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 261
D-Link UWS User Manual
Interface Summary
Use the LLDP Interface Summary page to view the LLDP parameters configured on each physical port on the
system.
To display the LLDP Interface Summary page, click LAN > Monitoring > LLDP StatusInterface Summaryin
the navigation tree.

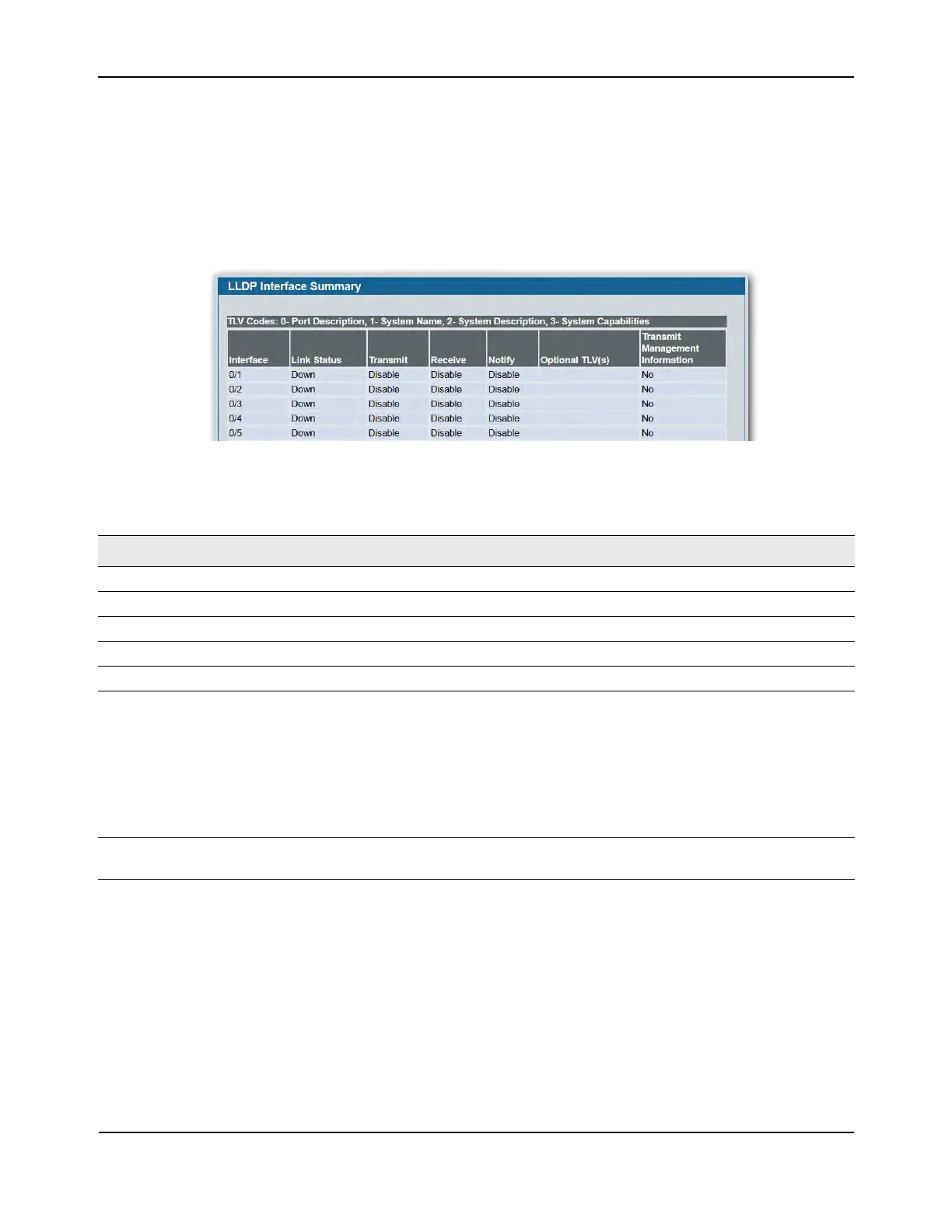

Figure 160: LLDP Interface Summary
• To update the page with the latest data, click Refresh.
Table 143: LLDP Interface Summary Fields
Field Description
Interface Displays all the ports on which LLDP-802.1AB can be configured.
Link Status Displays whether the link status of the ports is up or down.
Transmit Displays the LLDP-802.1AB transmit mode of the interface.
Receive Displays the LLDP-802.1AB receive mode of the interface.
Notify Displays the LLDP-802.1AB notification mode of the interface.
Optional TLV(s) Shows the LLDP-802.1AB optional type-length values (TLV) that are included.
If no TVLs are sent, the entry is blank. The field can contain one or more of the
following TVLs.
• System Name
• System Capabilities
• System Description
• Port Description.
Transmit Management
Information
Shows whether the management address is transmitted in the LLDP frames.
