Configuring IGMP Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 218
D-Link UWS User Manual
• Click Refresh to re-display the page with the latest information from the router.
Multicast Router Configuration
If a multicast router is attached to the switch, its existence can be learned dynamically. You can also statically
configure a switch port as a multicast router interface. Use the Multicast Router Configuration page to
manually configure an interface as a static multicast router interface.
To access the IGMP Snooping Multicast Router Configuration page, click LAN > L2 Features> IGMP Snooping
> Multicast Router Configuration in the navigation tree.

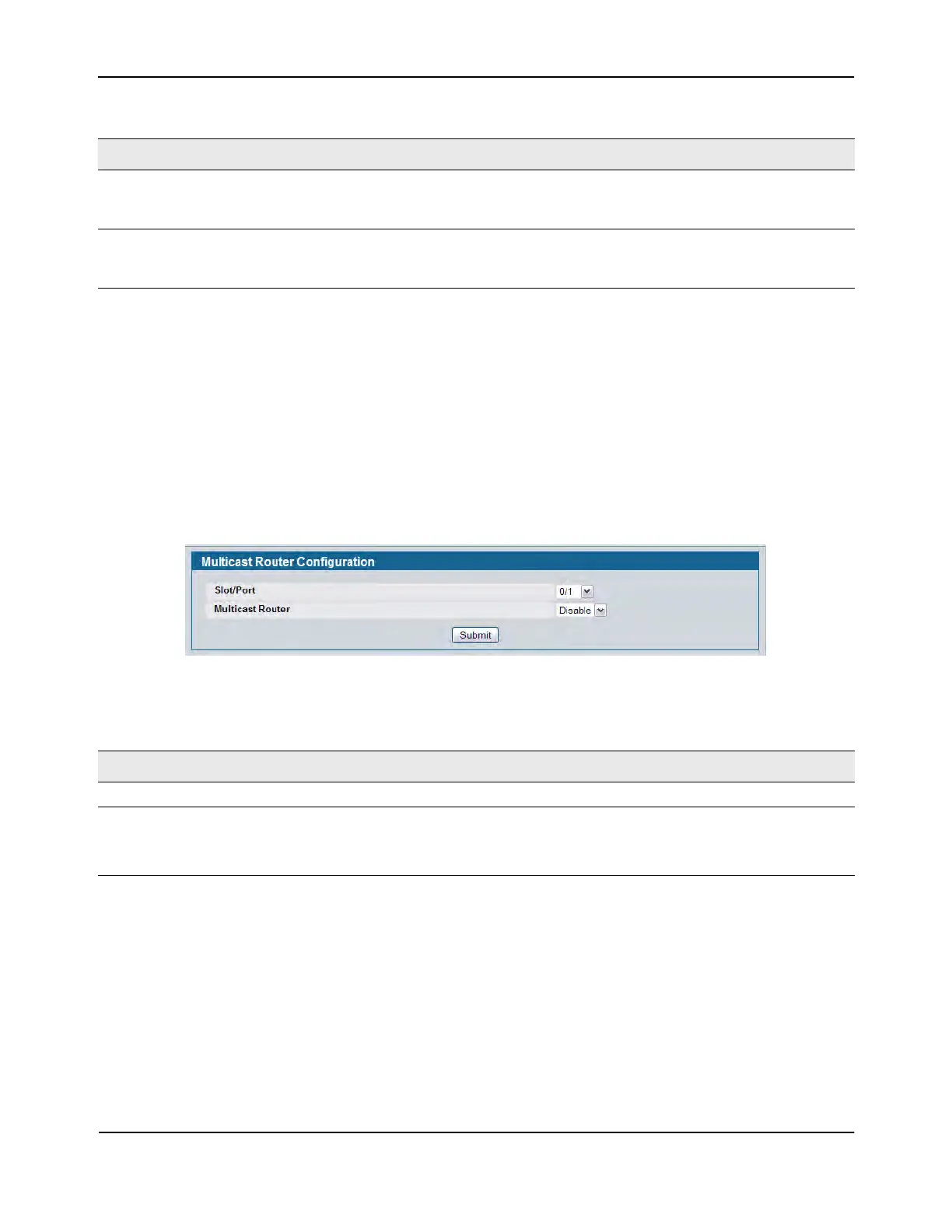

Figure 123: Multicast Router Configuration
If you enable or disable multicast router configuration on an interface, click Submit to apply the new settings
to the switch.
Operational Maximum
Response Time
Displays the value for maximum response time of IGMP Snooping for the
specified VLAN ID. Its value is learned dynamically from the IGMPv2 or
IGMPv3 queries received on this VLAN.
Multicast Router Expiry Time Shows the amount of time to wait before removing an interface that is
participating in the VLAN from the list of interfaces with multicast routers
attached. The interface is removed if a query is not received.
Table 107: Multicast Router Configuration Fields
Field Description
Slot/Port Select the physical or LAG interface to display.
Multicast Router Set the multicast router status:
• Enabled: The port is a multicast router interface.
• Disabled: The port does not have a multicast router configured.
Table 106: IGMP Snooping VLAN Status Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
