Interface Status
The pages available from the Interface Status link provide information about the captive portal interfaces and
their capabilities.
Viewing Interface Activation Status
The Interface Activation Status page shows information for every interface assigned to a captive portal
instance. Use the drop-down menus to select the portal or interface for which you want to view information.

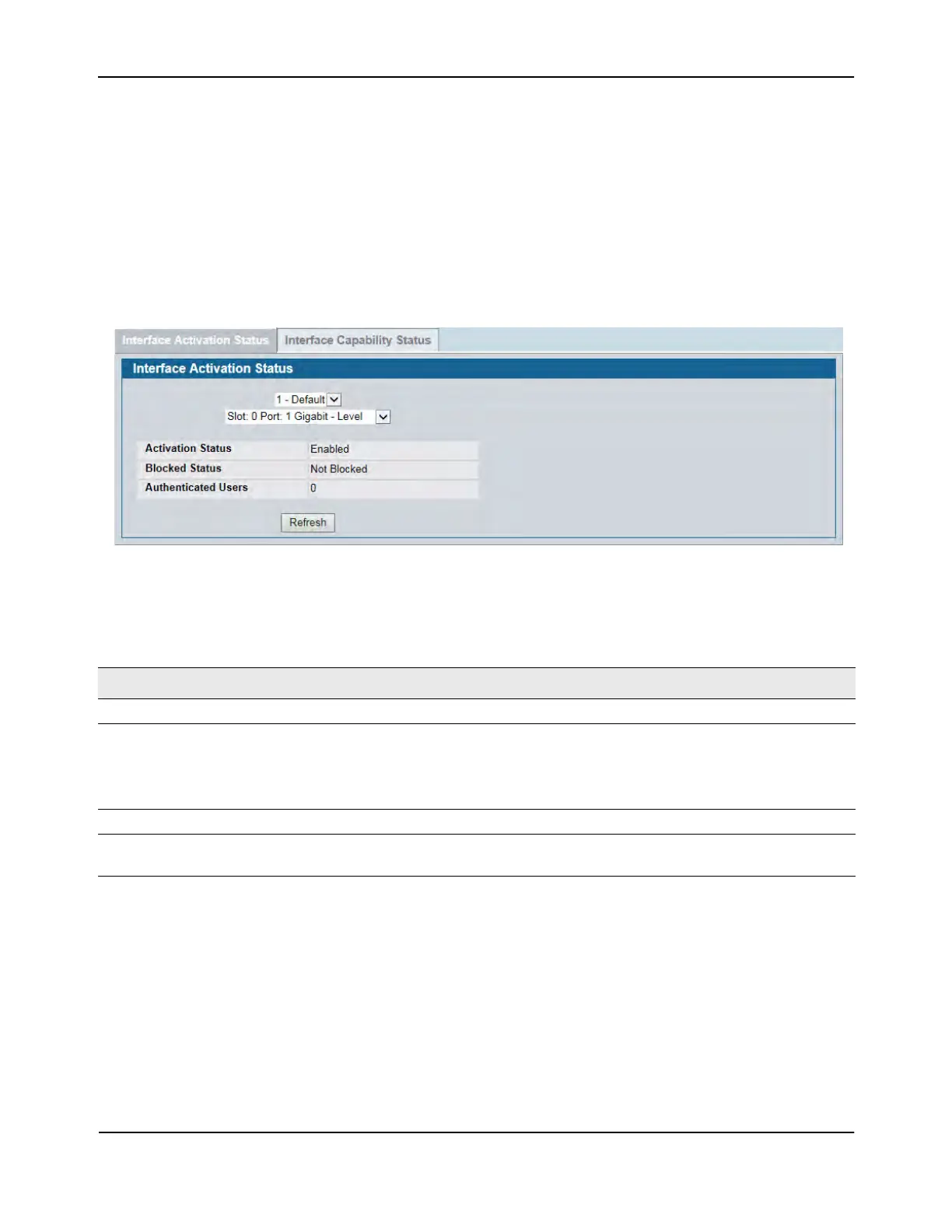

Figure 273: Interface Activation Status
The following table describes the fields on the Interface Activation Status page.
Table 234: Interface Activation Status
Field Description
Operational Status Shows whether the portal is active on the specified interface.
Disable Reason If the selected CP is disabled on this interface, this field indicates the reason, which can
be one of the following:
• Interface Not Attached
• Disabled by Administrator
Blocked Status Indicates whether the captive portal is temporarily blocked for authentications.
Authenticated
Users
Displays the number of authenticated users using the captive portal instance on this
interface.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
