Port Access Control
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 426
D-Link UWS User Manual

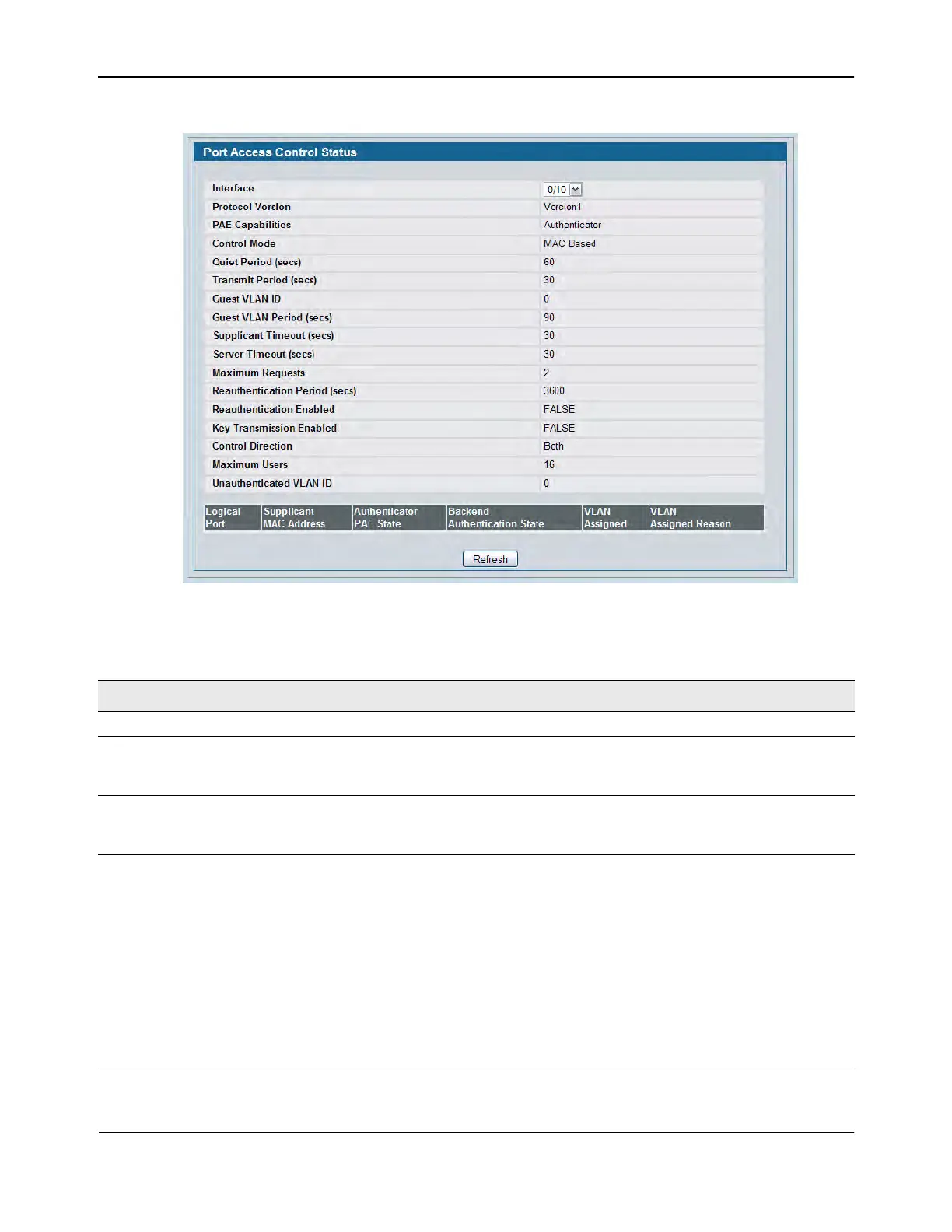

Figure 296: Port Access Control Status - MAC-based Control Mode
Table 251: Port Access Control Status Fields
Field Description
Interface Selects the Unit and Port to view.
Protocol Version This field displays the protocol version associated with the selected port. The
only possible value is 1, corresponding to the first version of the 802.1x
specification. This field is not configurable.
PAE Capabilities This field displays the port access entity (PAE) functionality of the selected
port. Possible values are "Authenticator" or "Supplicant". This field is not
configurable.
Control Mode Defines the port authorization state. The control mode is only set if the link
status of the port is link up. The possible field values are:
• Auto: Automatically detects the mode of the interface.
• Force Authorized: Places the interface into an authorized state without
being authenticated. The interface sends and receives normal traffic
without client port-based authentication.
• Force Unauthorized: Denies the selected interface system access by
moving the interface into unauthorized state. The switch cannot provide
authentication services to the client through the interface.
• MAC-based: Sets the mode of the interface to authentication on a per
supplicant basis.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
