MAC Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 367
D-Link UWS User Manual

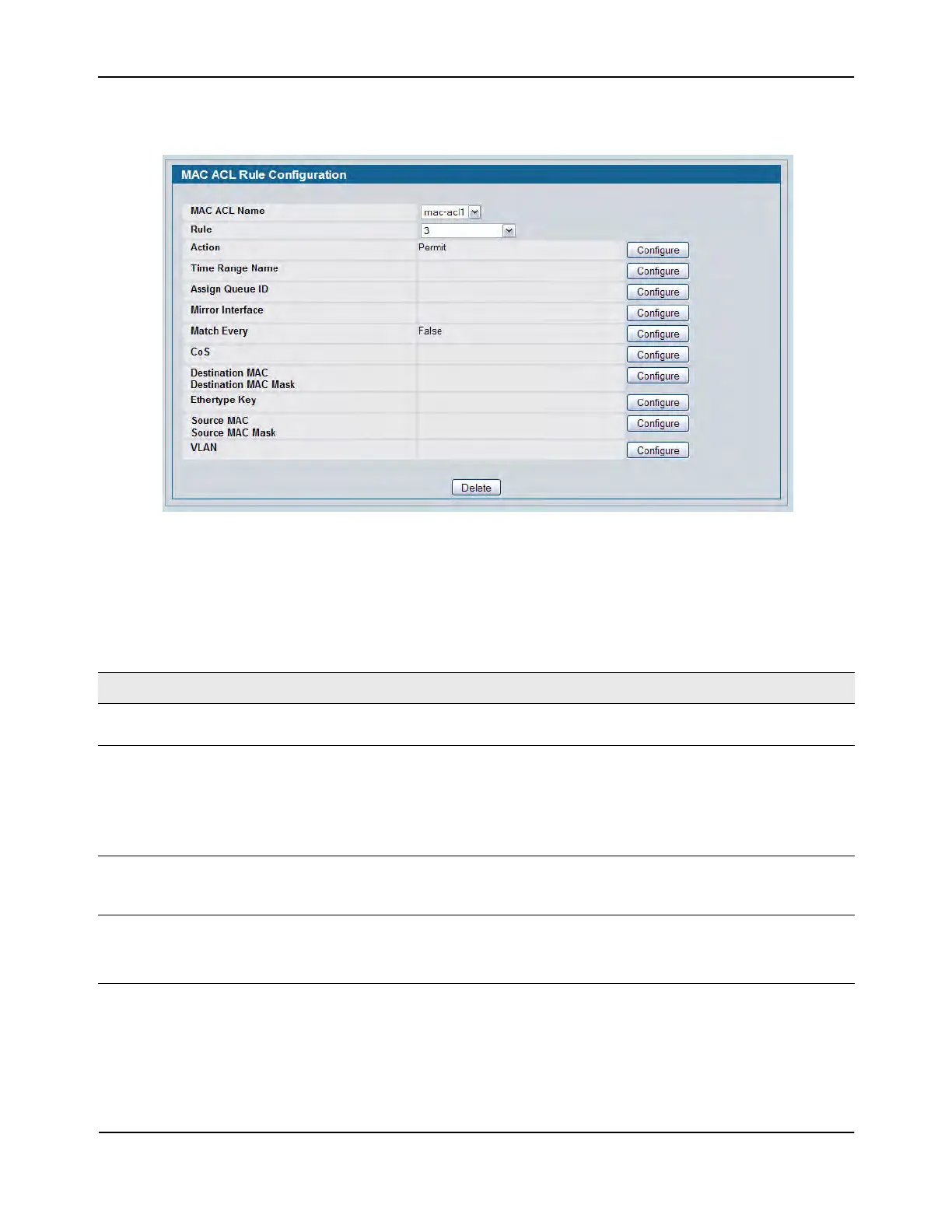

Figure 247 shows the fields available when you create a rule for a MAC ACL.
Figure 247: MAC ACL Rule Configuration (Permit Action)
Table 215 shows all possible fields on the MAC ACL Rule Configuration page. The actual fields available on the
page depend on whether you create a new rule or modify an existing rule, and whether the rule action is
Permit or Deny.
Table 215: MAC ACL Rule Configuration Fields
Field Description
MAC ACL Specifies an existing MAC ACL. To set up a new MAC ACL use the “MAC Access
Control Lists” page.
Rule Select an existing Rule ID to modify or select Create Rule to configure a new
ACL Rule. Enter a whole number in the range of 1 to 12 that will be used to
identify the rule. New rules cannot be created if the maximum number of
rules has been reached. For each rule, a packet must match all the specified
criteria in order to be true against that rule and for the specified rule action
(Permit/Deny) to take place.
Rule ID This field is only available if you select Create Rule from the Rule field. Enter a
new Rule ID. After you click Submit, the new ID is created and you can
configure the rule settings. You can create up to 12 rules for each ACL.
Action Specify what action should be taken if a packet matches the rule's criteria:
• Permit: Forwards packets that meet the ACL criteria.
• Deny: Drops packets that meet the ACL criteria.
