D-Link DWL-8610AP User Manual

Configuring the IP Helper Features
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 284
D-Link UWS User Manual
To add a relay entry, click Add. The page refreshes and provides the configurable fields to add a UDP
destination port and server IP address.

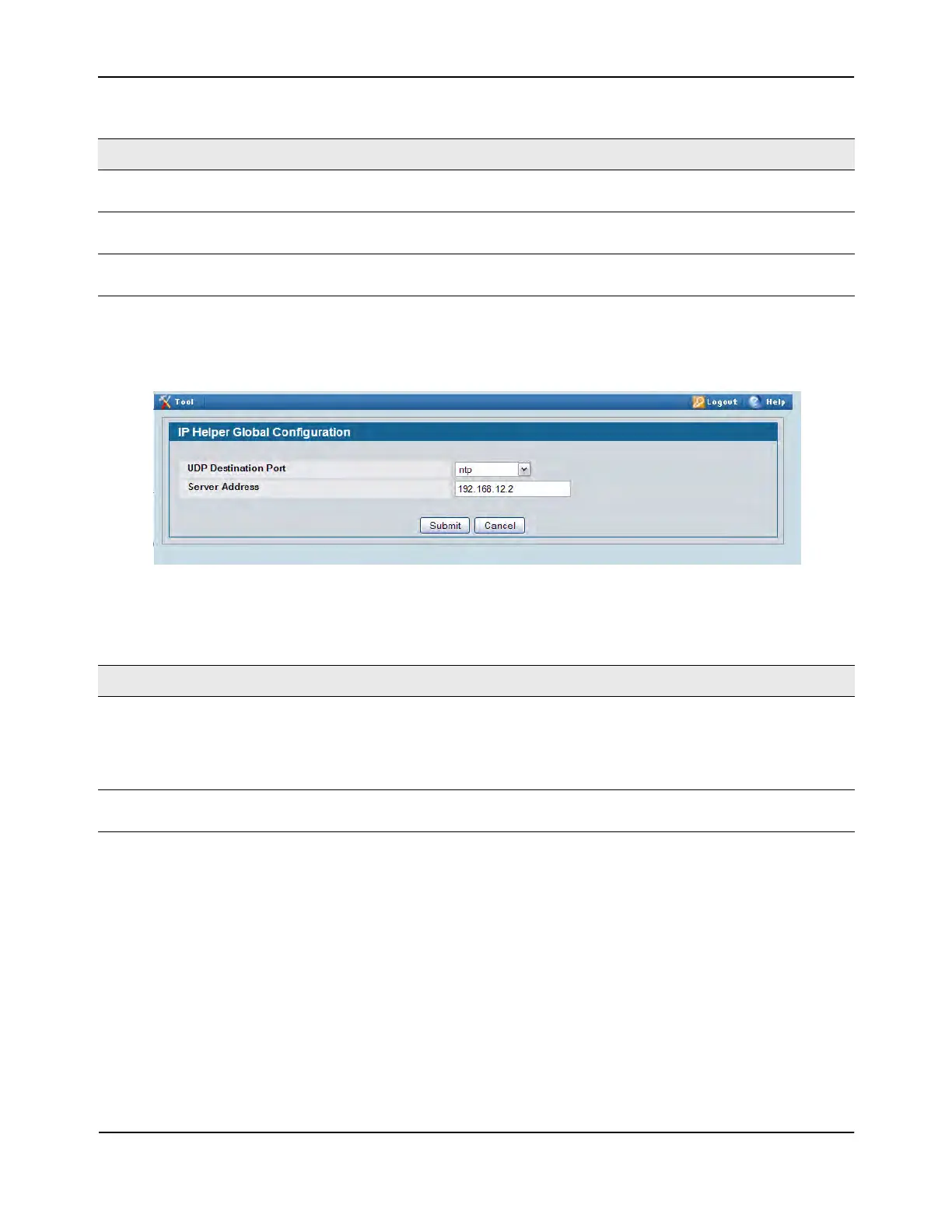

Figure 180: Adding a Global IP Helper Entry
• Click Submit to send the updated configuration to the switch. These changes will not be retained across a
power cycle unless a Save configuration is performed.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value
of the switch.
Server Address Shows the Server Address to which the packets with the given UDP
Destination Port will be relayed.
Hit Count Shows the number of times a packet has been forwarded or discarded
according to this entry.
Remove To delete a configured helper entry, select the Remove check box for the
appropriate entry and click Submit.
Table 163: IP Helper Global Configuration Add Fields
Field Description
UDP Destination Port (0-
65535)
The destination UDP port ID/Port Name of UDP packets to be relayed. Select
the protocol from the menu. If you want to configure other than the listed
protocols, select Other from the menu. Then user will be prompted with the
UDP Destination Port field. Select the DefaultSet to configure for the relay
entry for the default set of protocols.
Server Address The Server Address to which the packets with the given UDP Destination Port
will be relayed.
Table 162: IP Helper Global Configuration Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
