Service Detailed Statistics
Use the Service Detailed Statistics page to display class-oriented statistical information for the policy, which is
specified by the interface and direction. The Member Classes drop-down menu is populated on the basis of
the specified interface and direction and hence the attached policy (if any). Highlighting a member class name
displays the statistical information for the policy-class instance for the specified interface and direction.
To display the page, click LAN > Monitoring > Differentiated Services > Service Detailed Statistics in the
navigation menu.

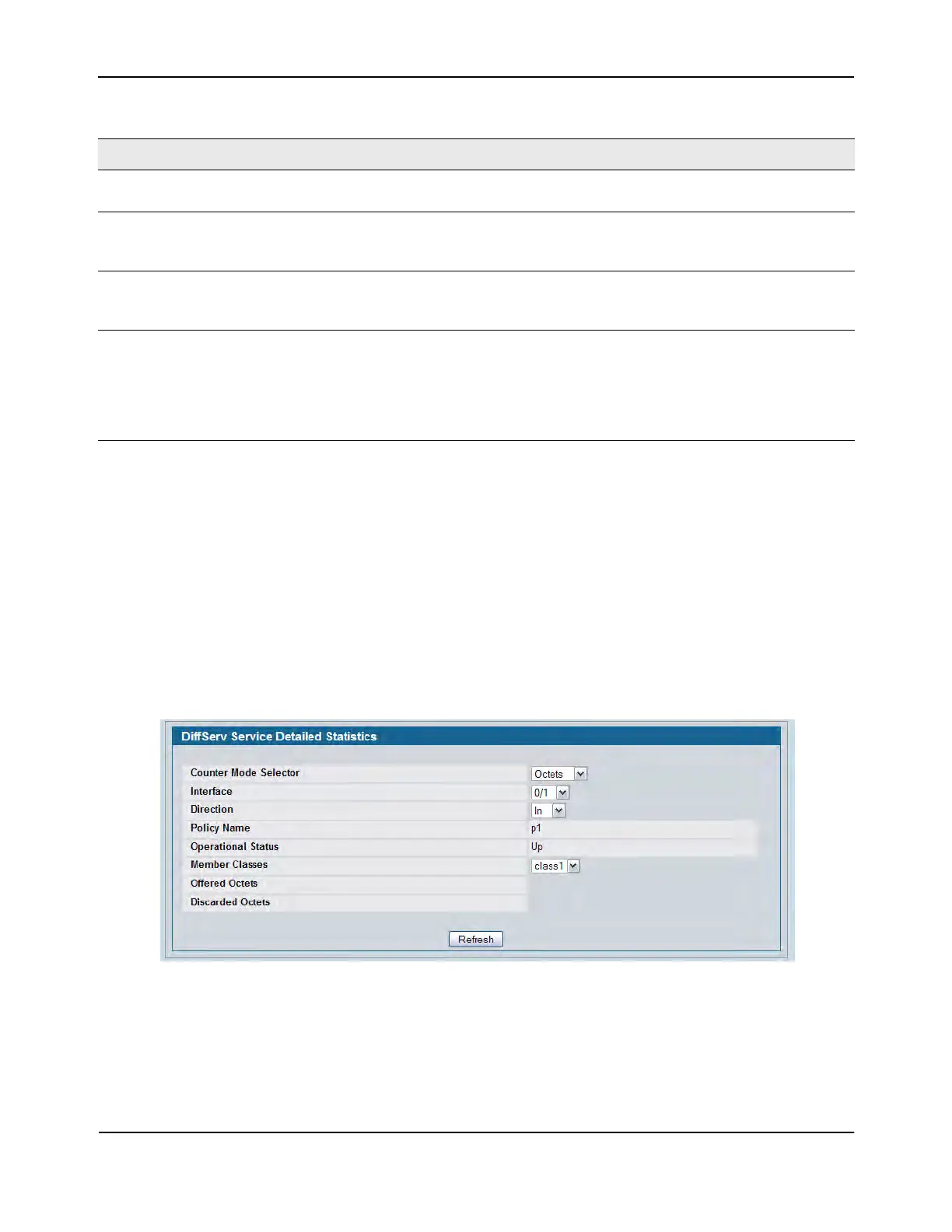

Figure 236: Service Detailed Statistics
Operational Status Shows the operational status of this service interface, which is either Up or
Down.
Offered Octets Shows the total number of packets/octets offered to all class instances in this
service policy before their defined DiffServ treatment is applied. This is the
overall count per-interface, per-direction.
Discarded Octets/Packets Shows the total number of packets/octets discarded for all class instances in
this service policy for any reason due to DiffServ treatment. This is the overall
count per-interface, per-direction.
Sent Octets/Packets Shows the total number of packets/octets forwarded for all class instances in
this service policy after their defined DiffServ treatments were applied. In this
case, forwarding means the traffic stream was passed to the next functional
element in the data path, such as the switching or routing function of an
outbound link transmission element. This is the overall count per-interface,
per-direction.
Table 209: Service Statistics Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
