Initiating Manual Power Adjustments
If you select Manual as the Power Adjustment Mode on the Configuration tab, you can manually initiate the
power adjustment algorithm on the Manual Power Adjustments page.

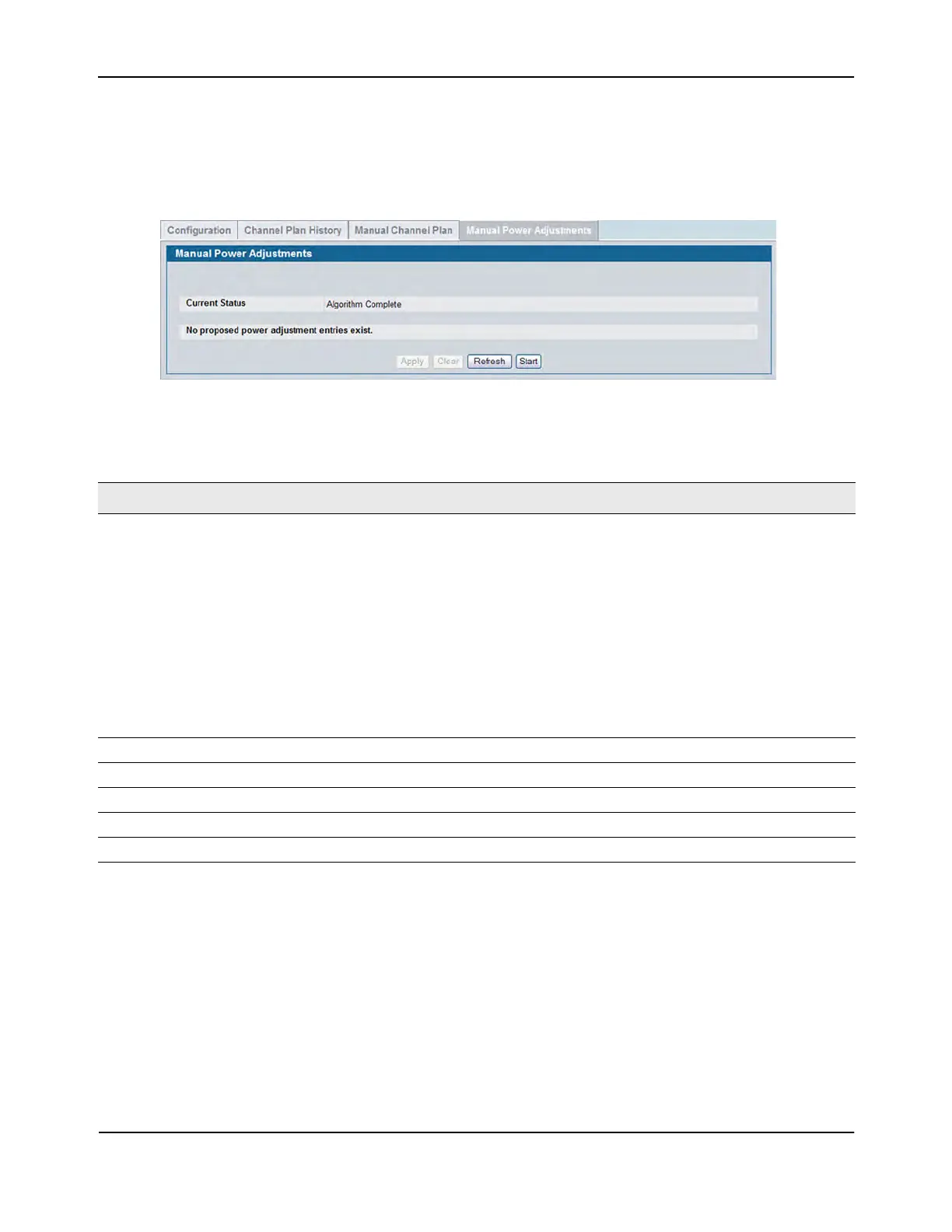

Figure 372: Manual Power Adjustments
Command Buttons
The page includes the following buttons:
• Apply—Apply the proposed power adjustment to the AP and change the current power level to the new
power.
• Clear—Clear the proposed power adjustment information.
• Refresh—Updates the page with the latest information.
• Start—Initiate the power adjustment algorithm.
Table 341: Manual Power Adjustments
Field Description
Current Status Shows the current status of the plan, which is one of the following states:
• None: The power adjustment algorithm has not been manually run since the last
switch reboot.
• Algorithm In Progress: The power adjustment algorithm is running.
• Algorithm Complete: The power adjustment algorithm has finished running.
• A table displays to indicate proposed power adjustments. Each entry shows the
AP along with the current and new power levels. To accept the proposed change,
click Apply. You must manually apply the power adjustment for the proposed
assignments to be applied.
• Apply In Progress: The switch is adjusting the power levels that the APs use.
• Apply Complete: The algorithm and power adjustment are complete.
AP MAC Address Identifies the AP MAC address.
Location Identifies the location of the AP, which is set in the Valid AP database.
Radio Identifies the radio.
Current Power Shows the current power level for the AP.
New Power Shows the proposed power level for the AP.
