Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing Associated Client SSID Status
Each managed AP can have up to 16 different networks that each have a unique SSID. Although several
wireless clients might be connected to the same physical AP, they might not connect by using the same SSID.
The WLAN > Monitoring > Client > Associated Clients > SSID Status page lists the SSIDs of the networks that
each wireless client associated with a managed AP has used for WLAN access.
To disconnect a client from an AP, select the box next to the SSID, and then click Disassociate.

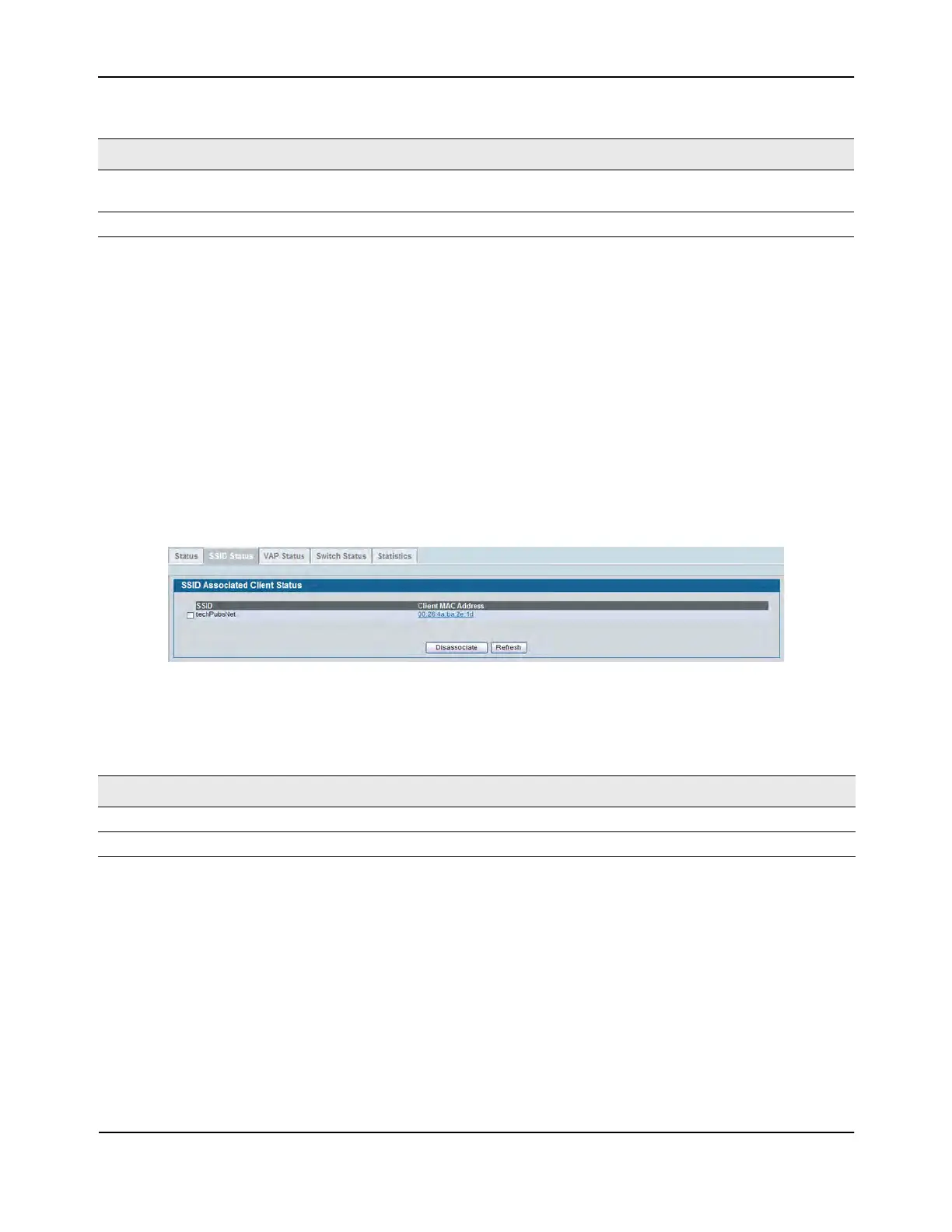

Figure 331: SSID Associated Client Status
Command Buttons
The page includes the following buttons:
• Disassociate—Disassociates the client from the managed AP.
• Refresh—Updates the page with the latest information.
RRM Beacon Passive Measurement
Mode
Indicates whether the client supports passive scan capability.
RRM Channel Load Measurement Mode Indicates whether the client supports channel load measurement
Table 299: SSID Associated Client Status
Field Description
SSID Indicates the network on which the client is connected.
Client MAC Address The Ethernet address of the client station.
Table 298: Associated Client RRM Status (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
