D-Link DWL-8610AP User Manual

Configuring the IP Helper Features
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 286
D-Link UWS User Manual
To add a relay entry, click Add. The page refreshes and provides the configurable fields to add a UDP
destination port and server IP address.

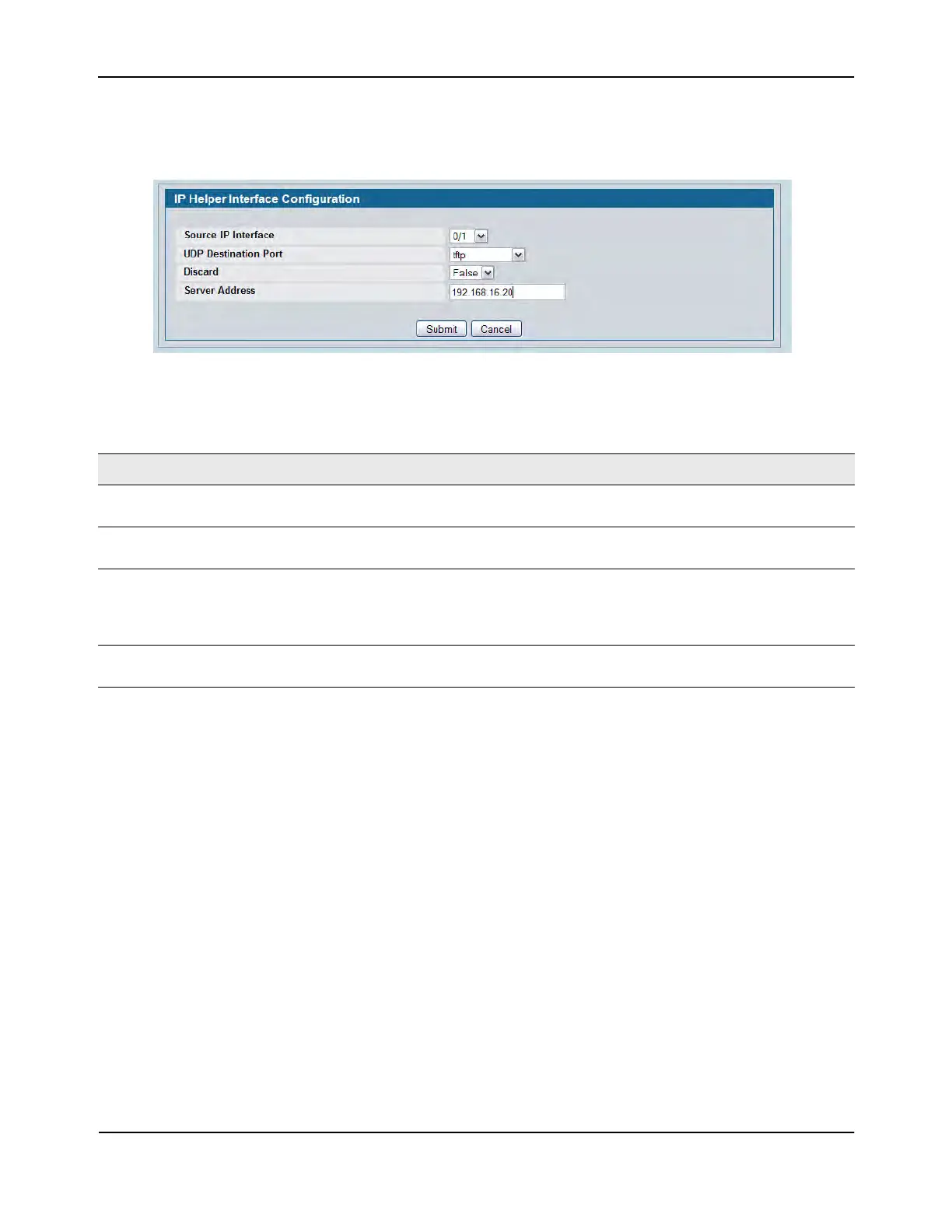

Figure 182: Adding an IP Helper Entry to an Interface
• Click Submit to send the updated configuration to the switch. These changes will not be retained across a
power cycle unless a Save configuration is performed.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value
of the switch.
Table 165: IP Helper Interface Configuration Add Fields
Field Description
Source IP Interface The the interface from the pulldown menu to for which user wants to
configure the relay entry.
UDP Destination Port The the Destination UDP port Name from the pull down menu or configure
the port number to configure the Relay Entry on selected interface.
Discard If set to True, packets arriving on the given interface with the given
destination UDP port are discarded rather than relayed. Discard entries are
used to override global IP helper address entries which otherwise might
apply to a packet.
Server Address The IPv4 address of the server to which packets are relayed for the specific
UDP Destination Port.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
