Port Access Control
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 429
D-Link UWS User Manual
Port Summary
Use the Port Access Control Port Summary page to view summary information about the port access control
settings on all physical ports.
To access the Port Based Access Control Port Summary page, click Security > Port Based Access Control > Port
Summary in the navigation menu.

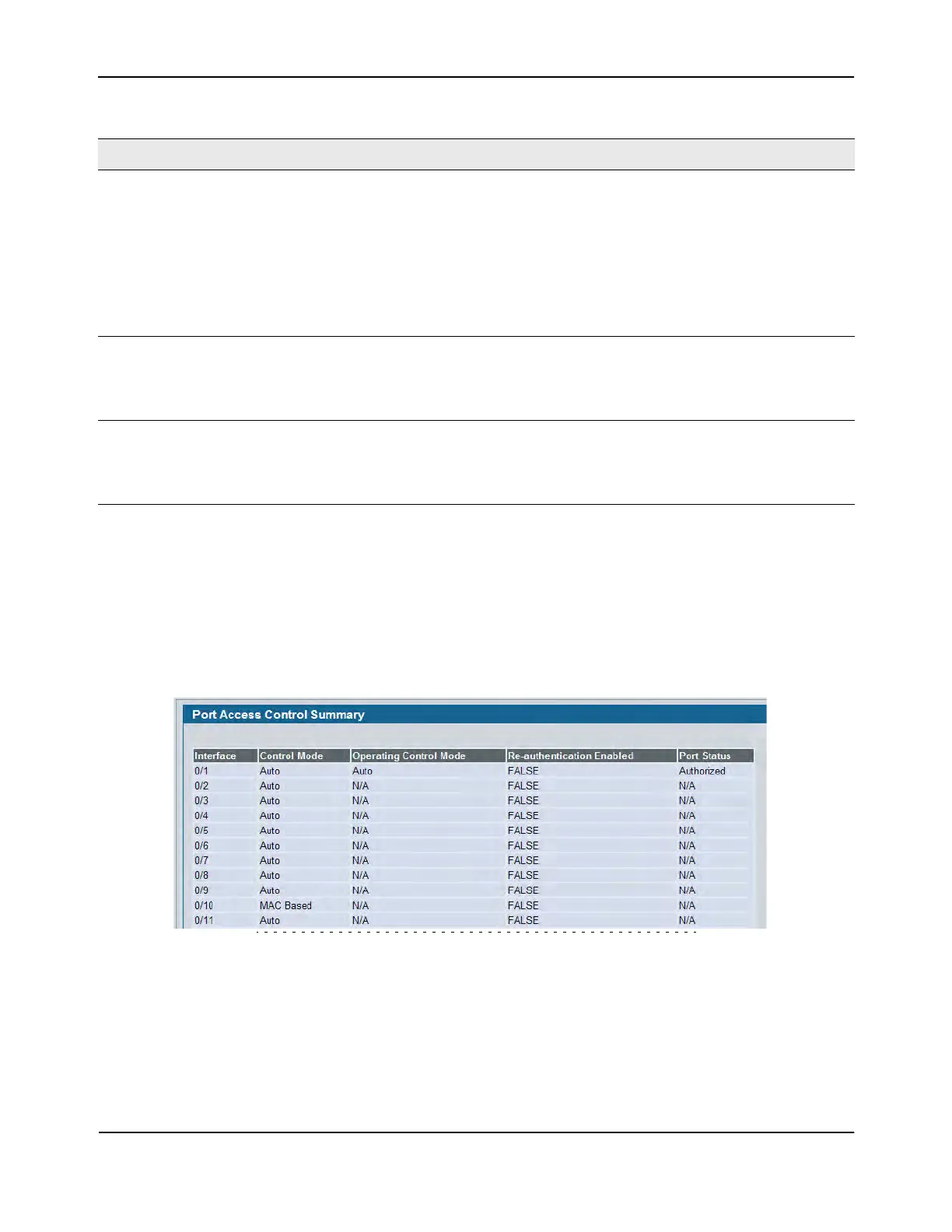

Figure 297: Port Access Control Port Summary
Session Termination Action Displays the Termination Action set by the RADIUS Server for the selected
port. Possible values are:
• Default
• Reauthenticate
If the termination action is Default then, at the end of the session, the client
details are initialized. Otherwise, re-authentication is attempted.
Note: This field is displayed only when the port control mode of the selected
port is not MAC-based.
Logical Port Displays the logical port number associated with the supplicant that is
connected to the port. This field is not configurable.
Note: This field is displayed when the port control mode of the selected port
is MAC-based.
Supplicant MacAddress This field displays the supplicant’s MAC address that is connected to the port.
This field is not configurable.
Note: This field is displayed when the port control mode of the selected port
is MAC-based.
Table 251: Port Access Control Status Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
