D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 191
D-Link UWS User Manual
To create and configure a protocol group, enter a group ID and click Submit. The page refreshes and additional
fields appear.

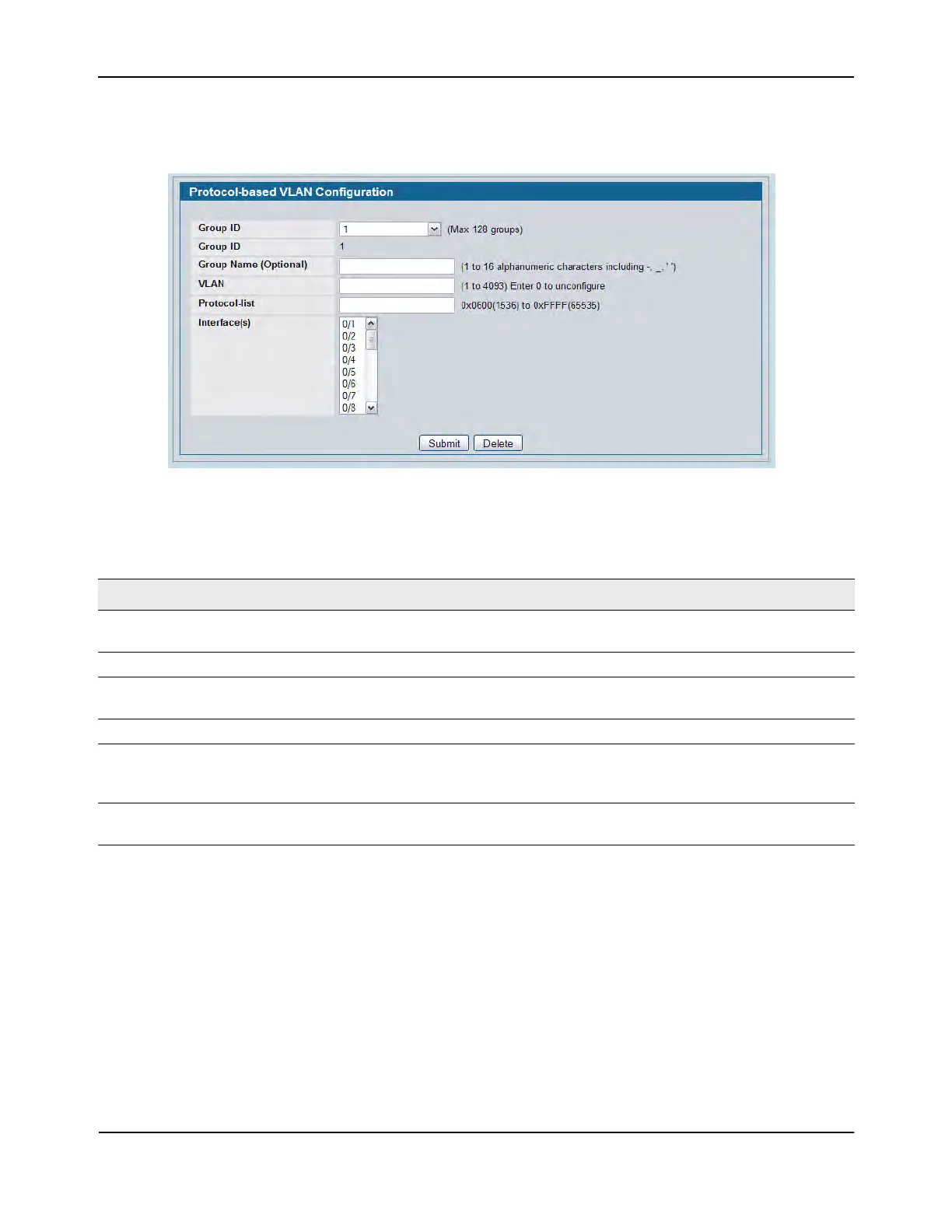

Figure 100: Protocol Group
• To create or modify a protocol-based VLAN group, edit the fields, and then click Submit.
• To delete an existing protocol-based VLAN group, select the group from the Group ID field, and then click
Delete Group.
Table 86: Protocol Group Fields
Field Description
Group ID Use the drop-down menu to create a new group or to configure the selected protocol
group. You can create up to 128 groups.
Group ID Identifies the group to configure.
Group Name Optionally enter a name to associate with protocol group ID. You can modify the name of
an existing group. You can enter up to 16 characters.
VLAN Specify the VLAN ID to associate with this group. The range is 1-3965.
Protocol-list Specify one or more protocols to associate with this group. The protocol list can be any
valid comma(,) separated string with standard arp, ip, ipx keywords, hexadecimal or
decimal values in the range of 0x0600(1536) to 0xFFFF(65535).
Interfaces Selects the interface(s) to add or remove from this group. CTRL + click to select multiple
ports.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
