Command Buttons
The page includes the following button:
• Submit—Updates the switch with the values you enter. To retain the new values across a power cycle,
you must perform a save (Tools > Save Changes).
Viewing the Channel Plan History
The DWS-4000 Series switch stores channel assignment information for the APs it manages. To access the
Channel Plan History information, click the AP Management > RF Management > Channel Plan History tab.
The Cluster Controller switch that controls the cluster maintains the channel history information for all
switches in the cluster. On the Cluster Controller, the page shows information about the radios on all APs
managed by switches in the cluster that are eligible for channel assignment and were successfully assigned a
new channel.

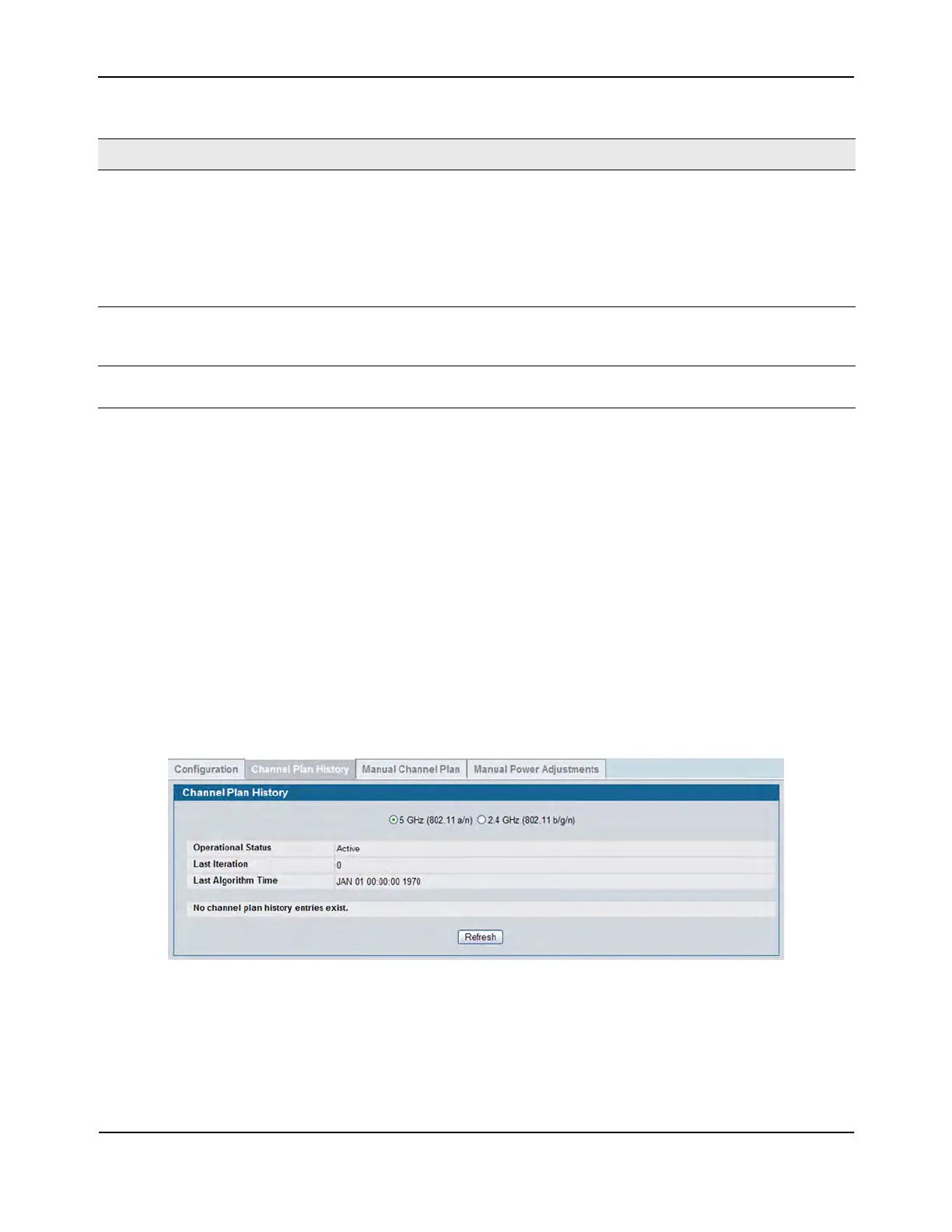

Figure 370: Channel Plan History
Table 339 describes the Channel Plan History fields.
Power Adjustment
Mode
This field indicates the power adjustment mode. The mode of power adjustment can
be one of the following:
• Manual: In this mode, you run the proposed power adjustments manually from
the Manual Power Adjustments page.
• Auto: In this mode, the switch continually calculates the power adjustments and
applies the power for all APs. The interval period begins when you click Start in
Initiate the power plan algorithm field
Power Threshold (dBm) You can set the Power Threshold to indicate Auto Power Algorithm to adjust every
APs power level, and make all the managed APs radio interference not more than
Power Threshold value each other.
Power Algorithm
Current Status
Specifies the current status of AGA.
Table 338: RF Channel Plan and Power Adjustment (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
