D-Link DWL-8610AP User Manual

Configuring the IP Helper Features
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 285
D-Link UWS User Manual
IP Helper Interface Configuration
Use the IP Helper Interface Configuration page to configure per-interface relay settings.
To display the page, click LAN > L3 Features >IP Helper > Interface Configuration in the navigation tree.

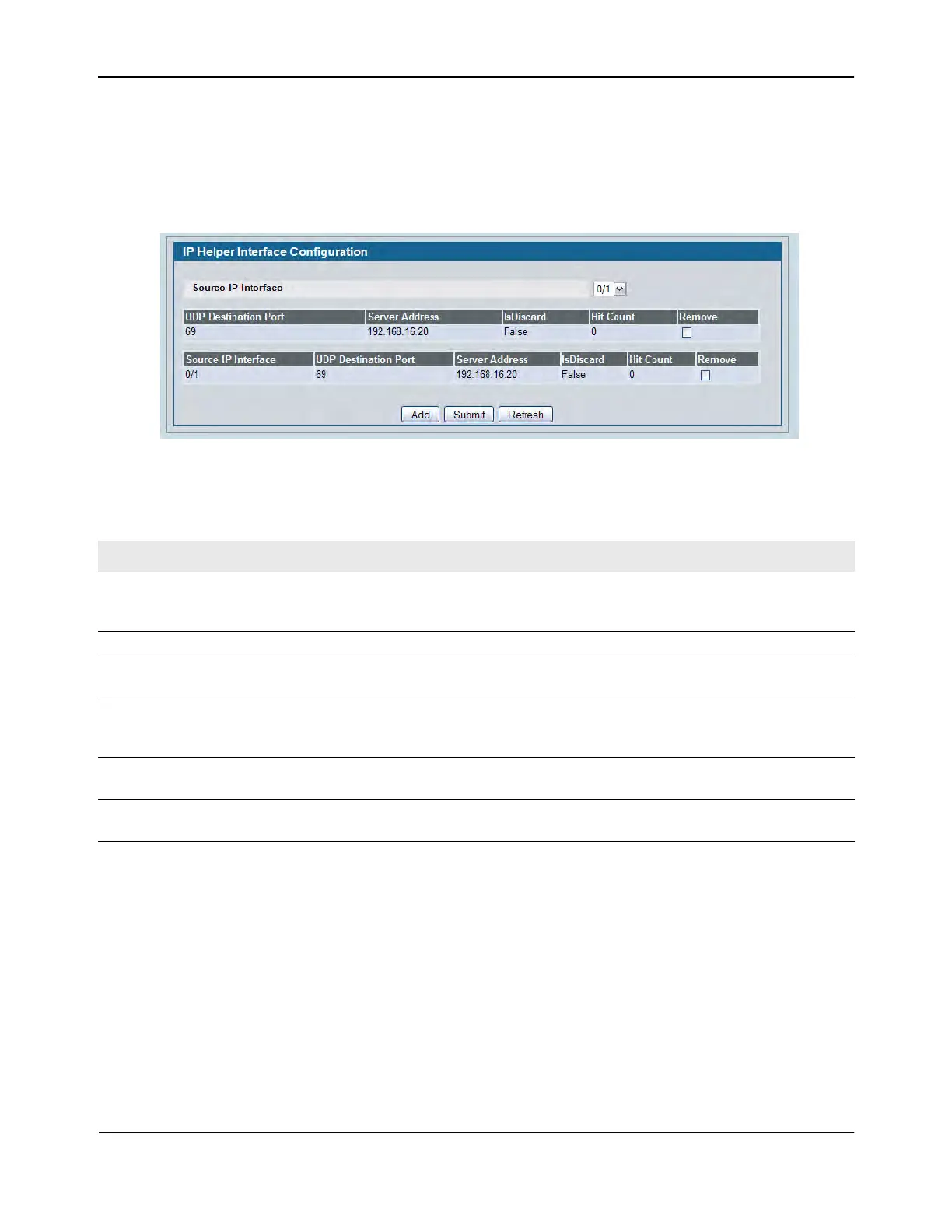

Figure 181: IP Helper Interface Configuration
Table 164: IP Helper Interface Configuration Fields
Field Description
Source IP Interface Select the interface from the pull down menu to get the relay entries
configured on a particular interface. Select All to display all the configured
relay entries on all interfaces.
UDP Destination Port Shows the destination UDP port ID/Port Name of UDP packets to be relayed.
Server Address Shows the Server Address to which the packets with the given UDP
Destination Port will be relayed.
IsDiscard If True, packets arriving on the given interface with the given destination UDP
port are discarded rather than relayed. Discard entries are used to override
global IP helper address entries which otherwise might apply to a packet.
Hit Count Shows the number of times a packet has been forwarded or discarded
according to this entry.
Remove To delete a configured helper entry, select the Remove check box for the
appropriate entry and click Submit.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
