Port Access Control
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 431
D-Link UWS User Manual
Port Access Control Statistics
Use the Port Access Control Statistics page to view EAP and EAPOL information on a specific port.
To access the Port Based Access Control Statistics page, click Security > Port Based Access Control > Statistics
in the navigation menu.

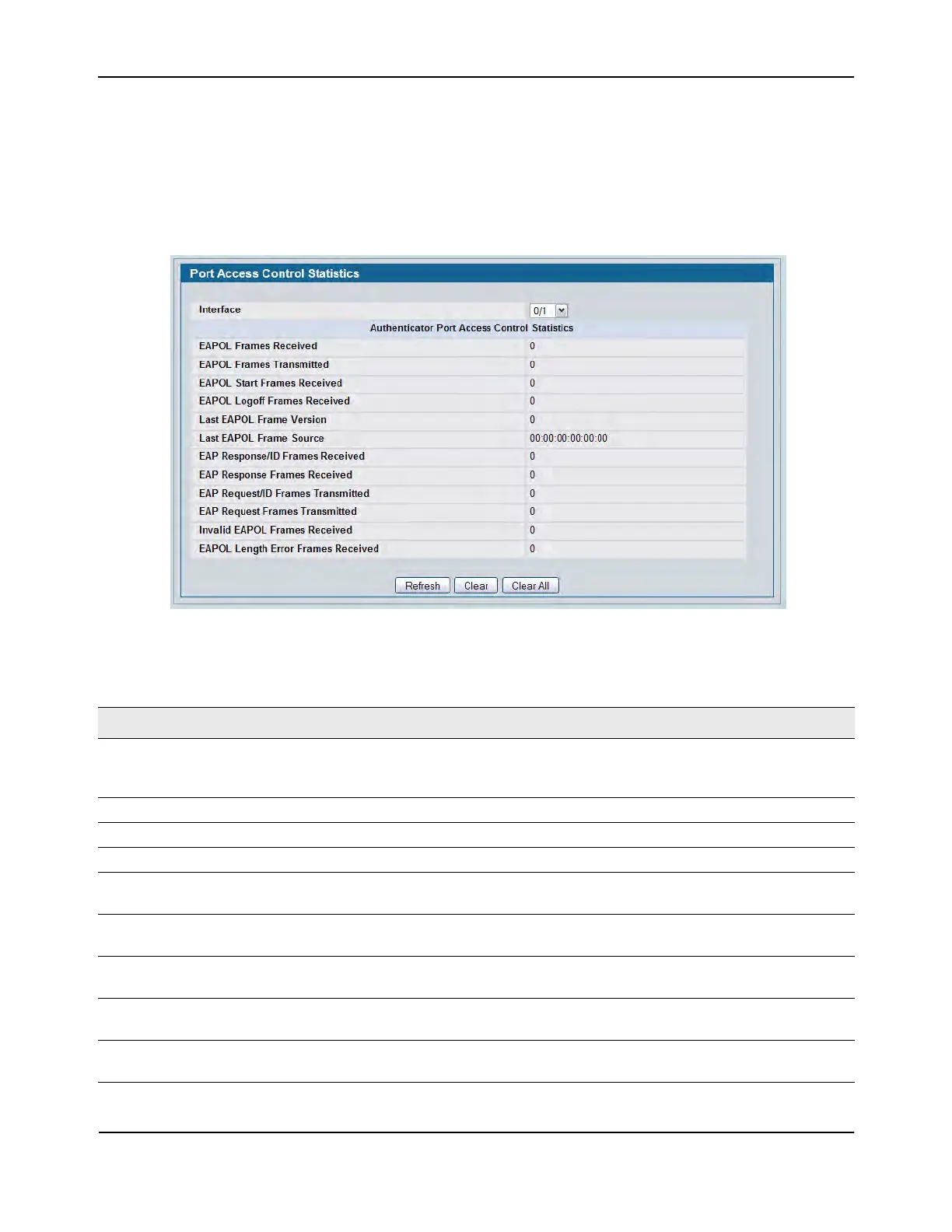

Figure 298: Port Access Control Statistics
Table 253: Port Access Control Statistics Fields
Field Description
Interface Selects the port to be displayed. When the selection is changed, a screen
refresh will occur causing all fields to be updated for the newly selected port.
All physical interfaces are valid.
EAPOL Frames Received Displays the number of valid EAPOL frames received on the port.
EAPOL Frames Transmitted Displays the number of EAPOL frames transmitted via the port.
EAPOL Start Frames Received Displays the number of EAPOL Start frames received on the port.
EAPOL Logoff Frames
Received
Displays the number of EAPOL Log off frames that have been received on the
port.
Last EAPOL Frames Version Displays the protocol version number attached to the most recently received
EAPOL frame.
Last EAPOL Frames Source Displays the source MAC Address attached to the most recently received
EAPOL frame.
EAP Response/ID Frames
Received
Displays the number of EAP Respond ID frames that have been received on the
port.
EAP Response Frames
Received
Displays the number of valid EAP Respond frames received on the port.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
