Configuring IGMP Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 217
D-Link UWS User Manual
• If you make any changes to the page, click Submit to apply the new settings to the system.
VLAN Status
Use the IGMP Snooping VLAN Status page to view information about the VLANs on the system that are
configured for IGMP snooping.
To access the IGMP Snooping VLAN Status page, click LAN > Monitoring> IGMP Snooping Status > VLAN
Status in the navigation tree.

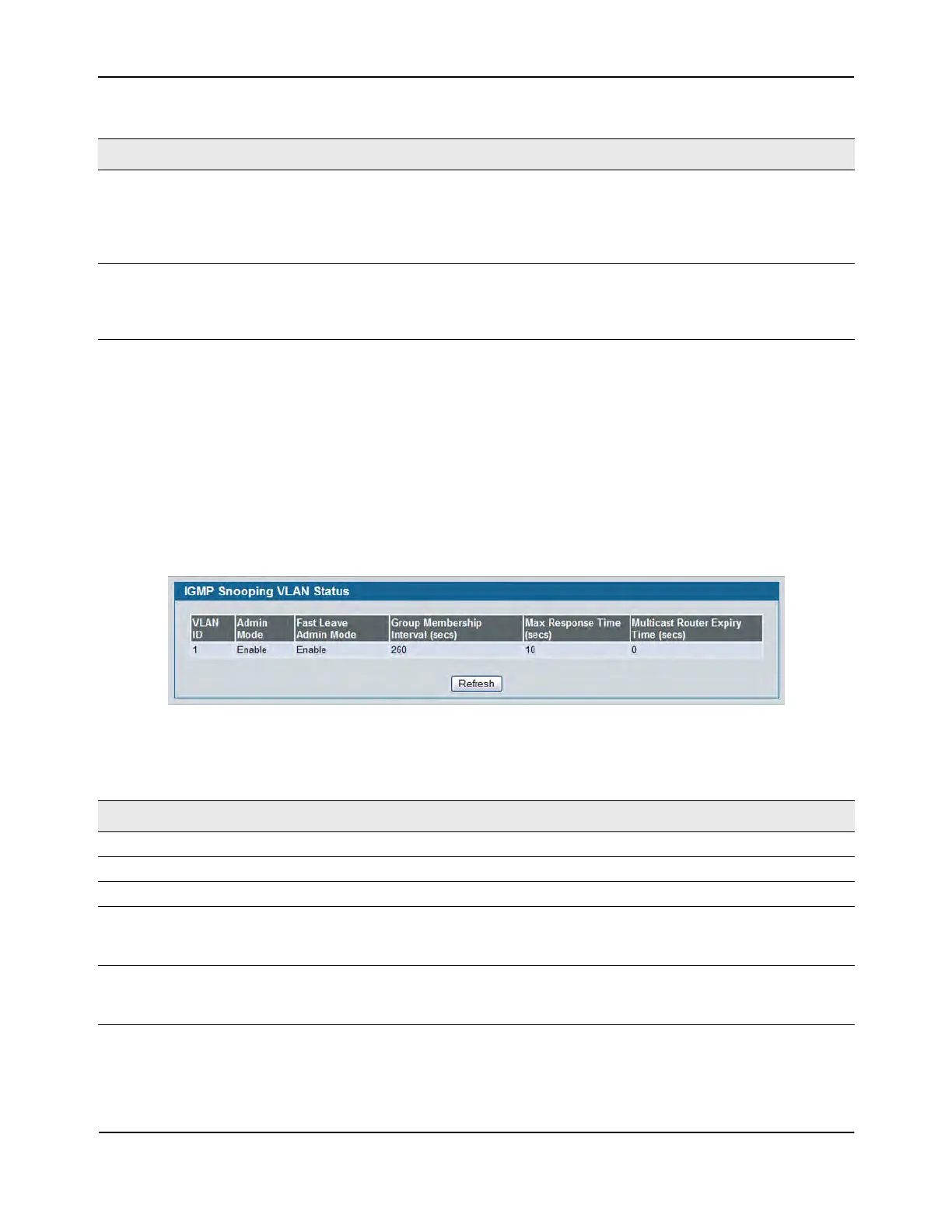

Figure 122: IGMP Snooping VLAN Status
Operational Maximum
Response Time
This read-only field displays the value for maximum response time of IGMP
Snooping for the specified VLAN ID. Its value is learned dynamically from the
IGMPv2 or IGMPv3 queries received on this VLAN. For the multicast traffic not
to get disturbed, you should configure group membership interval to be
greater than this value.
Multicast Router Expiry Time Enter the amount of time in seconds that a switch waits for a query to be
received on an interface before the interface is removed from the list of
interfaces with multicast routers attached. The range is 0 to 3600 seconds. A
value of 0 indicates an infinite time-out; i.e., no expiration.
Table 106: IGMP Snooping VLAN Status Fields
Field Description
VLAN ID Displays the VLAN IDs for which the IGMP Snooping mode is Enabled.
Admin Mode Shows the IGMP Snooping Mode for the VLAN ID.
Fast Leave Admin Mode Indicates whether IGMP Snooping Fast-leave is active on the VLAN.
Group Membership Interval Shows the amount of time in seconds that a switch will wait for a report from
a particular group on a particular interface, which is participating in the VLAN,
before deleting the interface from the entry.
Max Response Time Shows the amount of time the switch waits after it sends a query on an
interface, participating in the VLAN, because it did not receive a report for a
particular group on that interface. This value may be configured.
Table 105: IGMP Snooping VLAN Configuration Fields (Cont.)
Field Description
