D-Link DWL-8610AP User Manual

Configuring Class of Service
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 336
D-Link UWS User Manual
Alternatively, when a port is configured as untrusted, it does not trust any incoming packet priority designation
and uses the port default priority value instead. All packets arriving at the ingress of an untrusted port are
directed to a specific CoS queue on the appropriate egress port(s) in accordance with the configured default
priority of the ingress port. This process is also used for cases where a trusted port mapping is unable to be
honored, such as when a non-IP packet arrives at a port configured to trust the IP precedence or IP DSCP value.
To display the Trust Mode Configuration page, click LAN > QoS > Class of Service > Trust Mode Configuration
in the navigation menu.

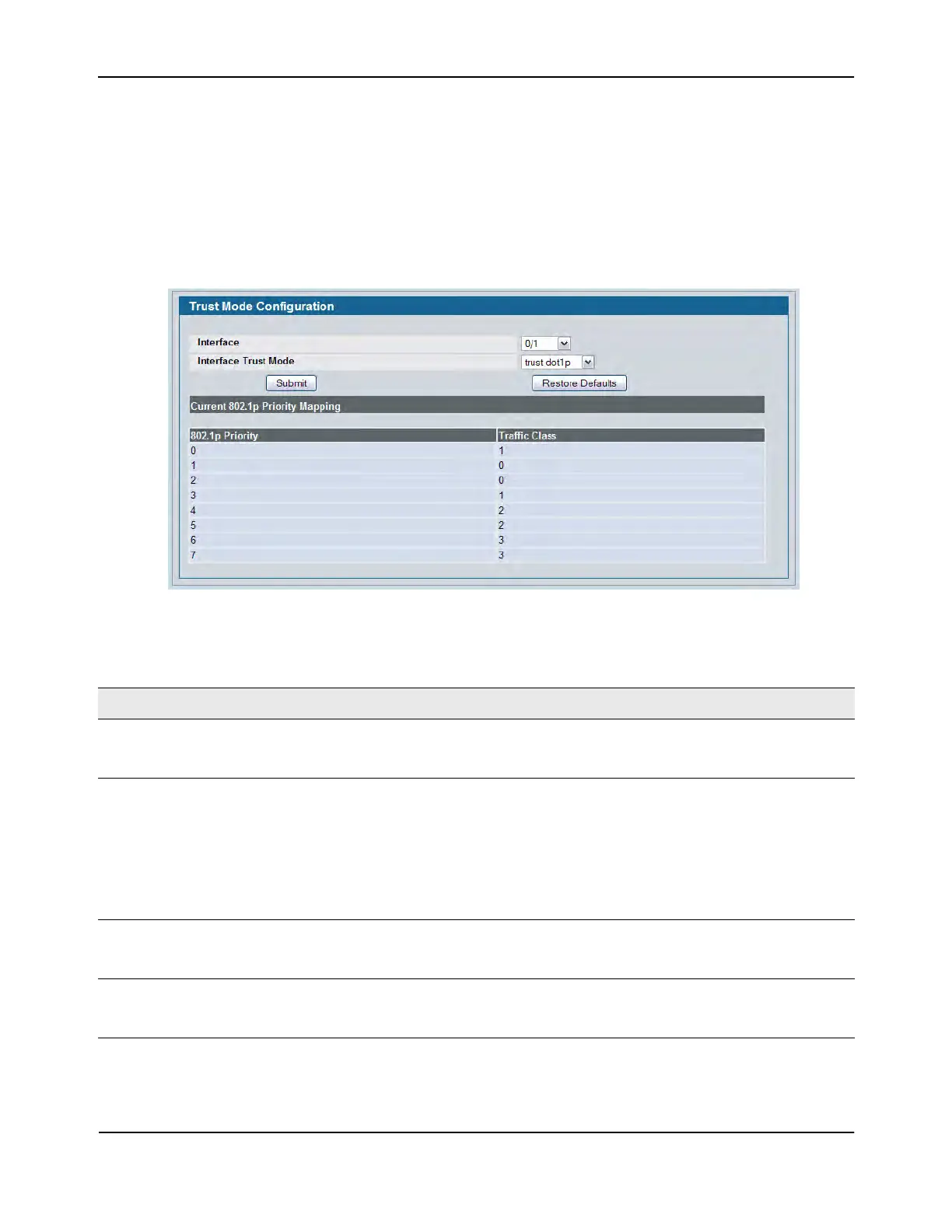

Figure 219: Trust Mode Configuration
Table 200: Trust Mode Configuration Fields
Field Description
Interface The menu contains all CoS configurable interfaces. Select the Global option to
apply the same trust mode to all interfaces. Select an individual interface from
the menu to override the global settings on a per-interface basis.
Interface Trust Mode Specifies whether or not an interface (or all interfaces if the Slot/Port field is
set to Global) trust a particular packet marking when the packet enters the
port. The default value is trust dot1p. The mode can only be one of the
following:
• untrusted
• trust dot1p
• trust ip-dscp
Non-IP Traffic Class This field appears if the trust mode for the selected interface is trust ip-dscp.
The field displays the traffic class (queue) to which all non-IP traffic is directed
when in the interface trust mode is trust ip-dscp. The value is fixed to 1.
Untrusted Traffic Class This field appears if the trust mode for the selected interface is untrusted. The
field displays the traffic class (queue) to which all traffic is directed when in
untrusted mode. The value is fixed to 1.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
