Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 267
D-Link UWS User Manual
LLDP-MED
The Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to LLDP that
features:
• Auto-discovery of LAN policies (such as VLAN, Layer 2 Priority and DiffServ settings), enabling plug and
play networking.
• Device location discovery for creation of location databases.
• Extended and automated power management of Power over Ethernet endpoints.
• Inventory management, enabling network administrators to track their network devices and determine
their characteristics (manufacturer, software and hardware versions, serial/asset number).
LLDP-MED Global Configuration
Use this page to set global parameters for LLDP-MED operation. To display this page, click LAN > L2 Features
> LLDP > LLDP-MED > Global Configuration in the navigation tree.

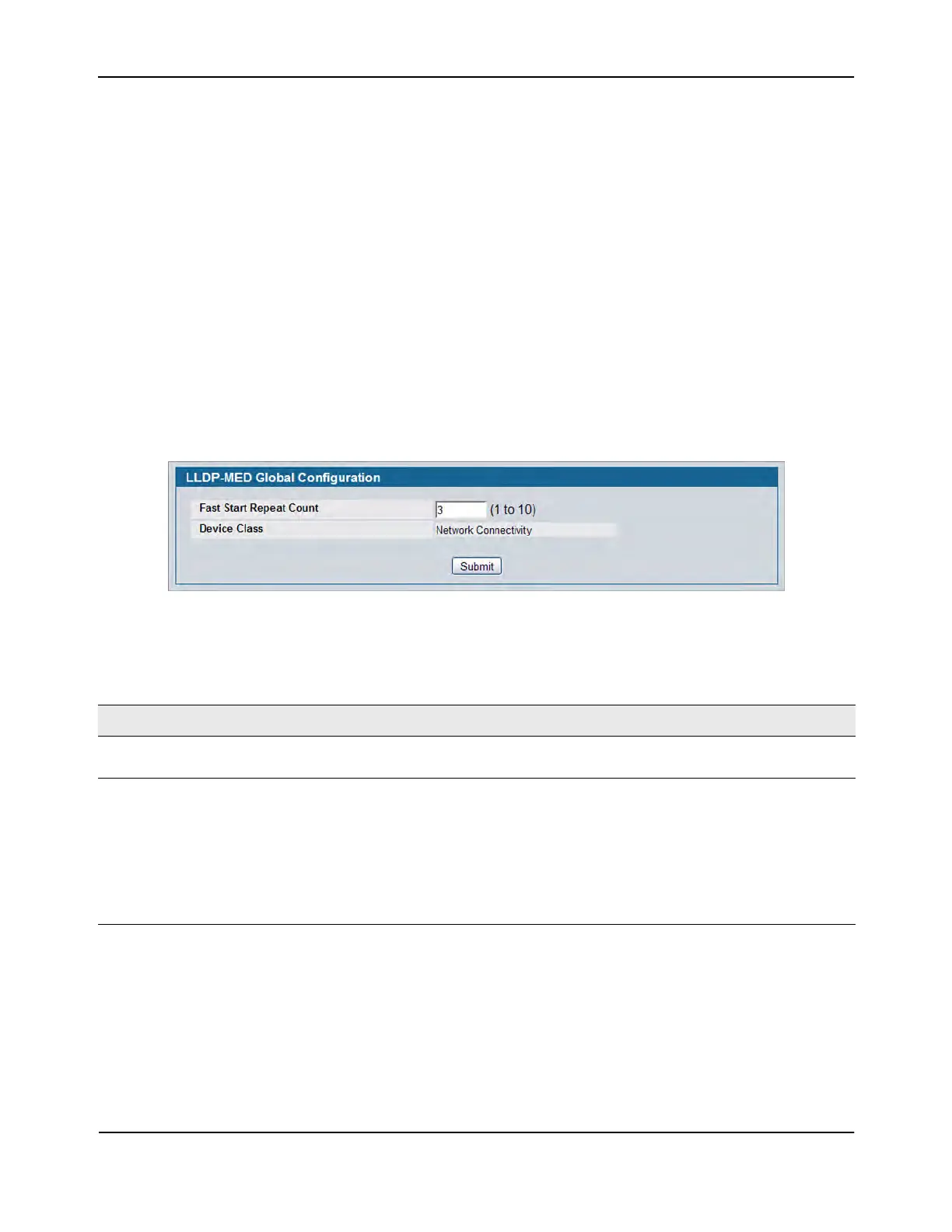

Figure 166: LLDP Global Configuration
• Click Submit to updated the switch. The changes take effect but will not be retained across a power cycle
unless a save is performed.
Table 149: LLDP Global Configuration Fields
Field Description
Fast Start Repeat Count Specifies the number of LLDP PDUs that will be transmitted when the protocol is
enabled. The range is from (1 to 10). The default value s 3.
Device Class Specifies local device's MED Classification. The following three represent the actual
endpoints:
• Class I Generic [IP Communication Controller etc.]
• Class II Media [Conference Bridge etc.]
• Class III Communication [IP Telephone etc.])
The fourth device is Network Connectivity Device, which is typically a LAN switch/
router, IEEE 802.1 bridge, IEEE 802.11 wireless access point, etc.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
