D-Link DWL-8610AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 460
D-Link UWS User Manual
Viewing Peer Switch Configuration Status
You can push portions of the switch configuration from one switch to another switch in the cluster. The Peer
Switch Configuration Status page displays information about the configuration sent by a peer switch in the
cluster. It also identifies the IP address of each peer switch that received the configuration information.

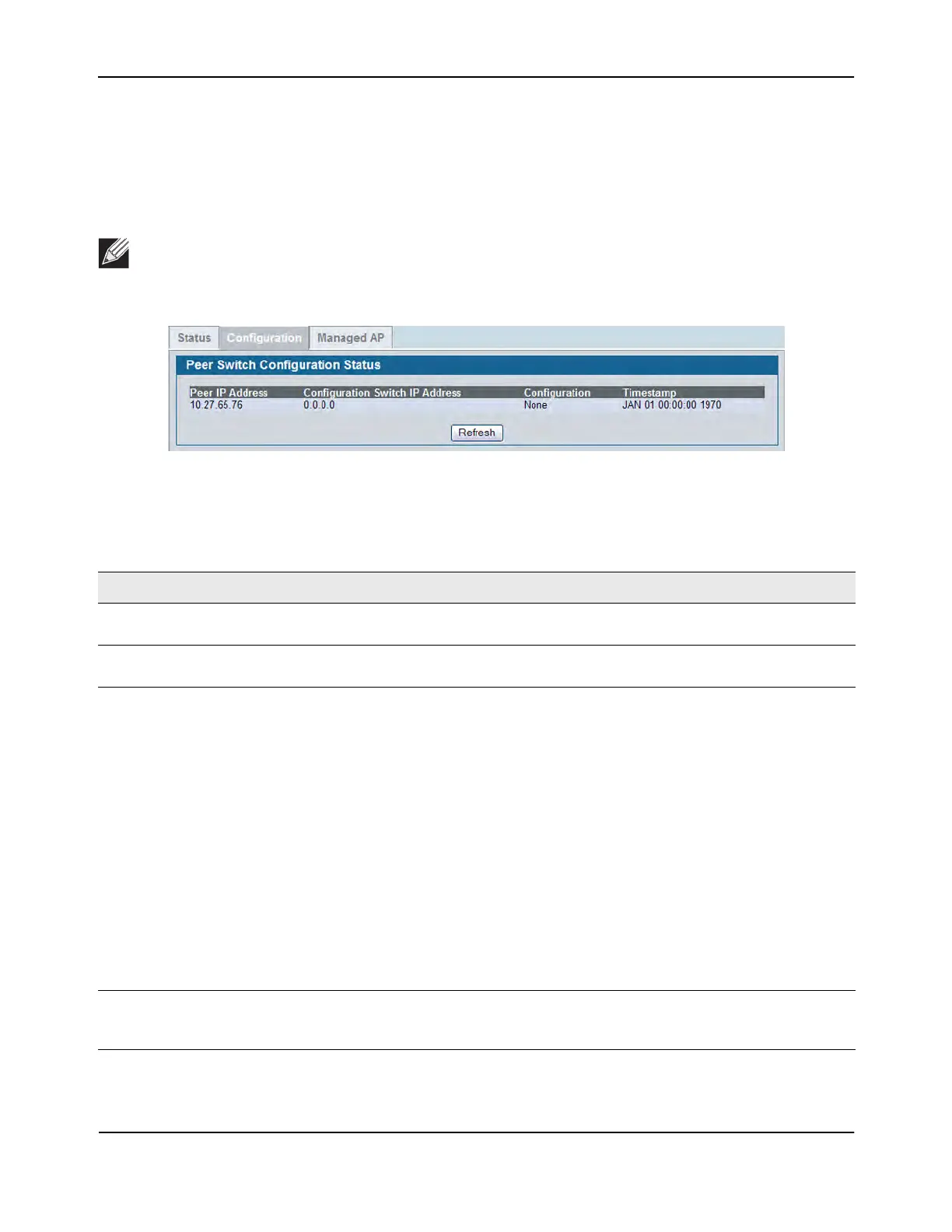

Figure 311: Peer Switch Configuration Status
Table 266 describes the fields available on the Peer Switch Status page.
Note: To view information about the configuration received by the local switch, go to the WLAN >
Monitoring > Global page and click the Configuration Received tab.
Table 266: Peer Switch Configuration Status
Field Description
Peer IP Address Shows the IP address of each peer wireless switch in the cluster that received
configuration information.
Configuration Switch IP
Address
Shows the IP Address of the switch that sent the configuration information.
Configuration Identifies which parts of the configuration the switch received from the peer switch.
The possible configuration elements can be one or more of the following:
• Global
•Discovery
• Channel/Power
• AP Database
• Channel/Power
• AP Profiles
• Known Client
• Captive Portal
• RADIUS Client
• QoS ACL
• QoS DiffServ
If the switch has not received any configuration for another switch, the value is None.
Timestamp Shows when the configuration was applied to the switch. The time is displayed as
UTC time and therefore only useful if the administrator has configured each peer
switch to use NTP
