• Click Add to proceed to the VRRP Interface Tracking page.
• Click Submit to apply the new configuration. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a Save configuration is performed.
• Click Refresh to refresh the page with the most current data from the switch.
• Click Cancel to return to the Virtual Router Configuration page.
VRRP Interface Tracking
Use the VRRP Interface Tracking page to add an interface to the tracking list. This page is accessible by clicking
Add from the Virtual Router Configuration page.

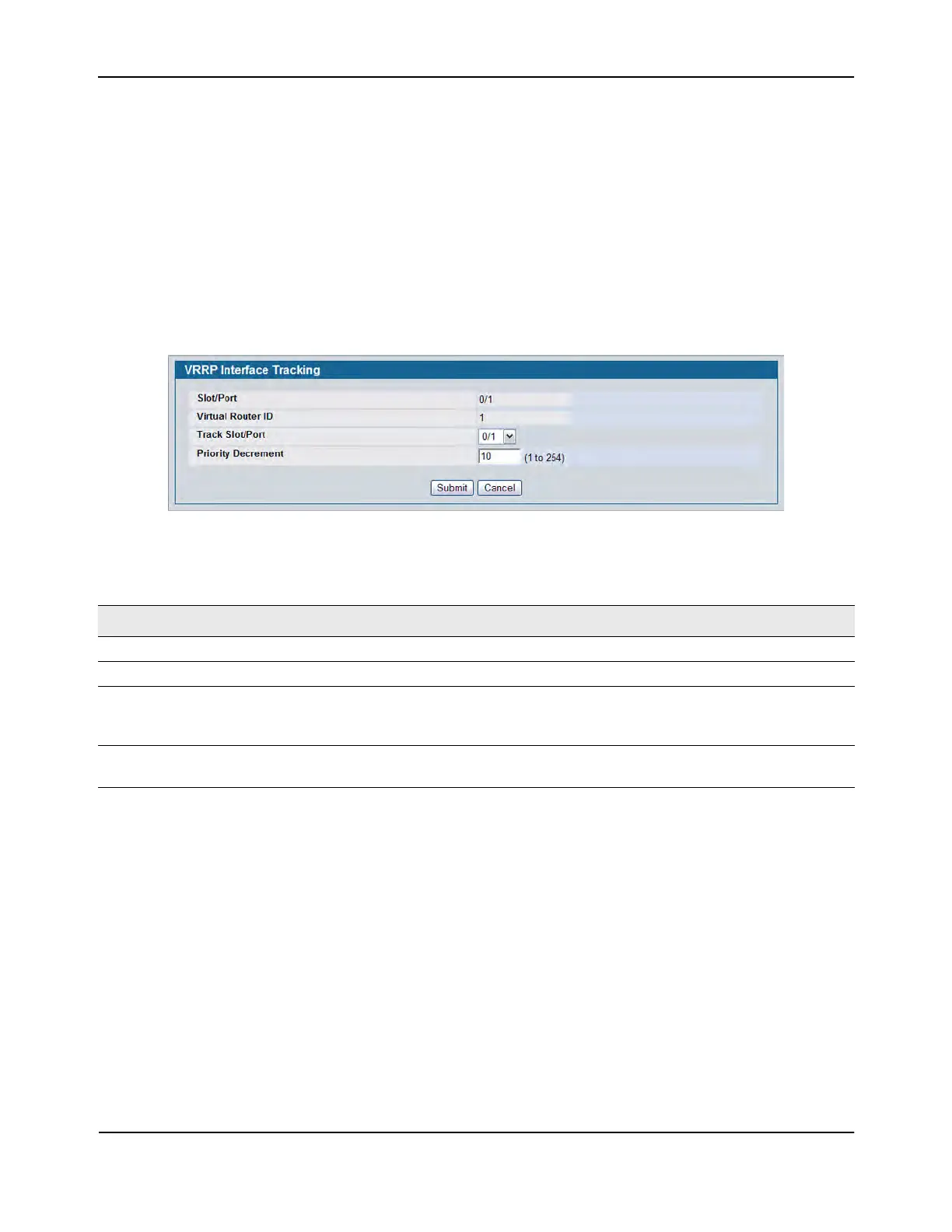

Figure 213: VRRP Interface Tracking
• Click Submit to send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a Save configuration is
performed.
• Click Cancel to return to the VRRP Interface Tracking Configuration page.
Table 194: VRRP Track Interface Fields
Field Description
Slot/Port The interface associated with the Virtual Router ID.
Virtual Router ID The Virtual Router ID for which data is to be displayed.
Track Slot/Port Displays all routing interfaces which are not yet tracked for this Virtual Router
ID and interface configuration. Exceptions to this: loopback and tunnels could
not be tracked.
Priority Decrement The priority decrement for the tracked interface. The valid range is 1-254. The
default value is 10.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
