D-Link DWL-8610AP User Manual

Unified Wired and Wireless Access System Components
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 443
D-Link UWS User Manual
Discovery and Peer Switches
When multiple peer switches are present in the network, you can control which switch or switches are allowed
to discover a particular AP by the discovery method you use.
If you want to make sure that an AP is discovered by one specific switch, use one of the following methods:
• Disable L2 Discovery on all switches and configure the IP address of the AP in only one DWS-4000 Series
switch.
• Configure the IP address of one DWS-4000 Series switch in the AP.

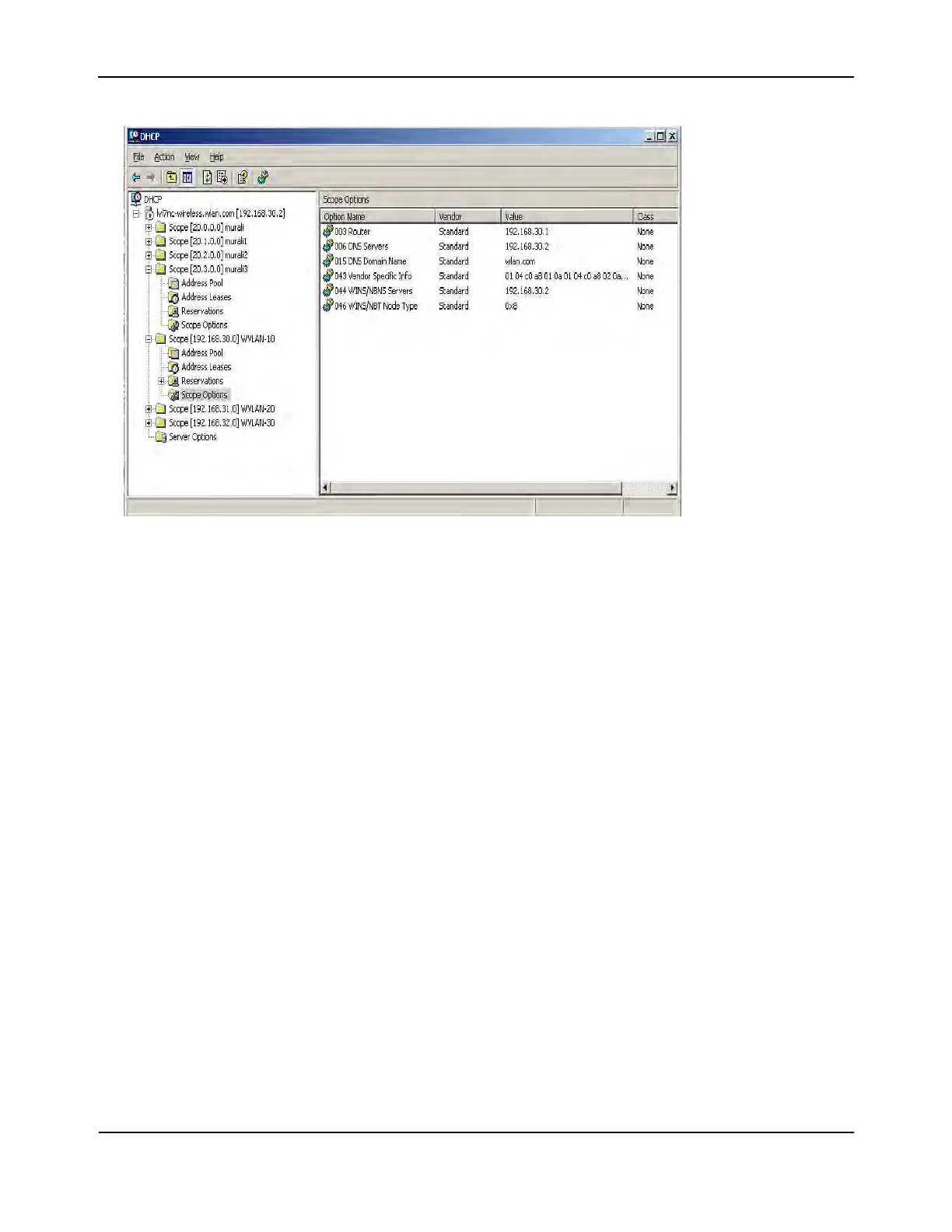

• Configure the DHCP option 43 with the IP address of only one DWS-4000 Series switch.
An alternative approach is to configure the RADIUS server to return a switch IP address during AP MAC address
checking in the AP authentication process. If the RADIUS server indicates that the AP is a valid managed AP and
returns an IP address of a switch that is not the same as this switch, then the switch sends a re-link message
to the access point with the IP address of the wireless switch to which the AP should be talking to. When the
AP gets the re-link message it modifies or sets the wireless switch IP address, breaks the TCP connection with
the current switch and starts a new discovery process.
You can configure the DWS-4000 Series switch so that each AP is allowed to be managed by any switch in a
cluster. If the DWS-4000 Series switch that manages an AP goes down, one of the backup switches takes over
the management responsibilities.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
