D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 189
D-Link UWS User Manual
VLAN Port Summary
Use the VLAN Port Summary page to view VLAN configuration information for all the ports on the system.
To access the VLAN Port Summary page, click LAN > Monitoring> VLAN Summary > VLAN Port Summary in
the navigation menu.

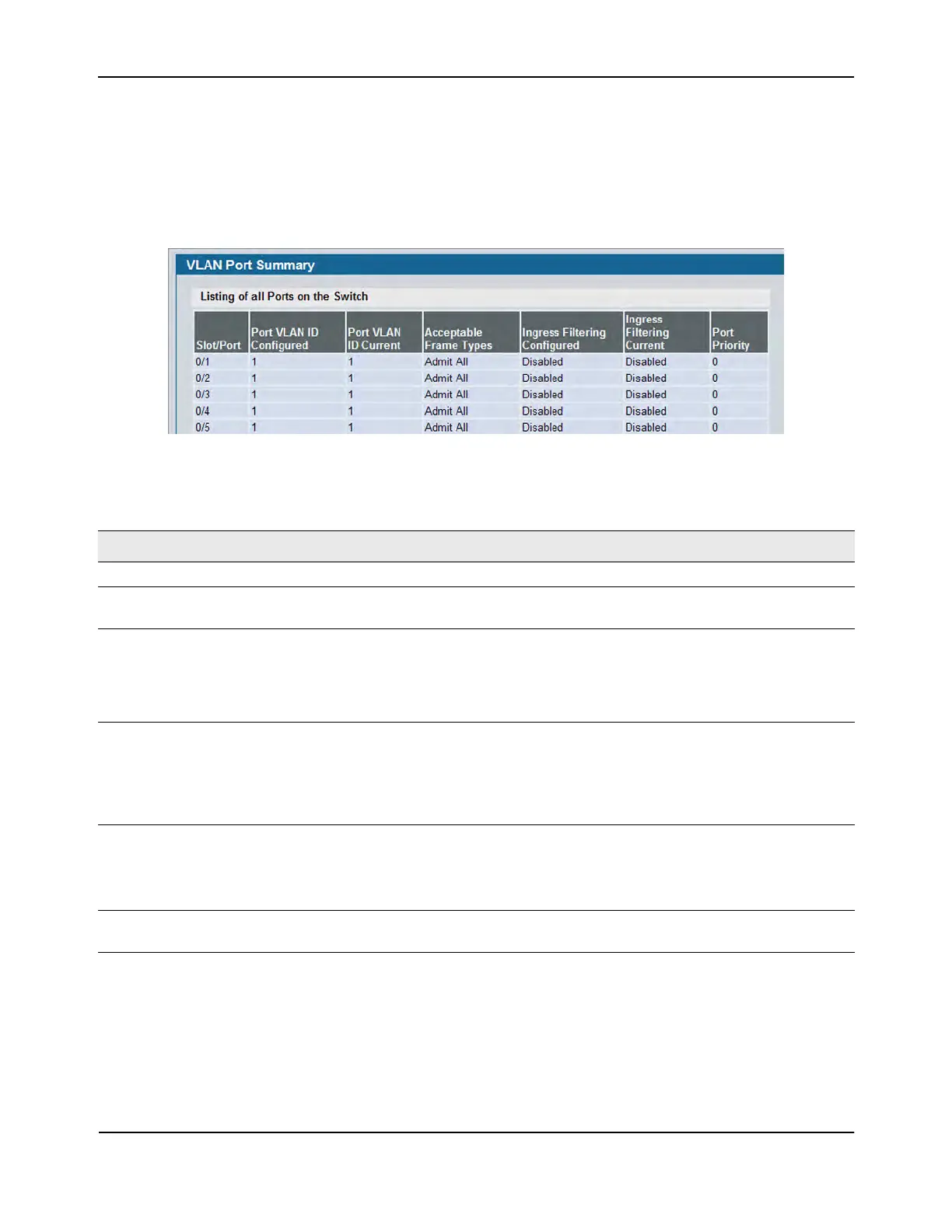

Figure 98: VLAN Port Summary
• Click Refresh to reload the page and view the most current information.
Table 84: VLAN Port Summary Fields
Field Description
Slot/Port Identifies the physical interface associated with the rest of the data in the row.
Port VLAN ID Configured Identifies the VLAN ID assigned to untagged or priority-tagged frames
received on this port. The factory default is 1.
Port VLAN ID Current Displays the actual VLAN ID in use for the port. If the port was acquired by
another module, the actual value may differ from the configured VLAN ID. For
example, if the port is a member of a port channel and the port channel has a
different port VLAN ID setting than the configured value, then the two may
differ.
Acceptable Frame Types Indicates how the port handles untagged and priority tagged frames.
• VLAN Only: The port discards any untagged or priority tagged frames it
receives.
• Admit All: Untagged and priority tagged frames received on the port are
accepted and assigned the value of the Port VLAN ID for this port.
Ingress Filtering Shows how the port handles tagged frames.
• Enable: A tagged frame is discarded if this port is not a member of the
VLAN identified by the VLAN ID in the tag.
• Disable: All tagged frames are accepted, which is the factory default.
Port Priority Identifies the default 802.1p priority assigned to untagged packets arriving at
the port.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
