D-Link UWS User Manual

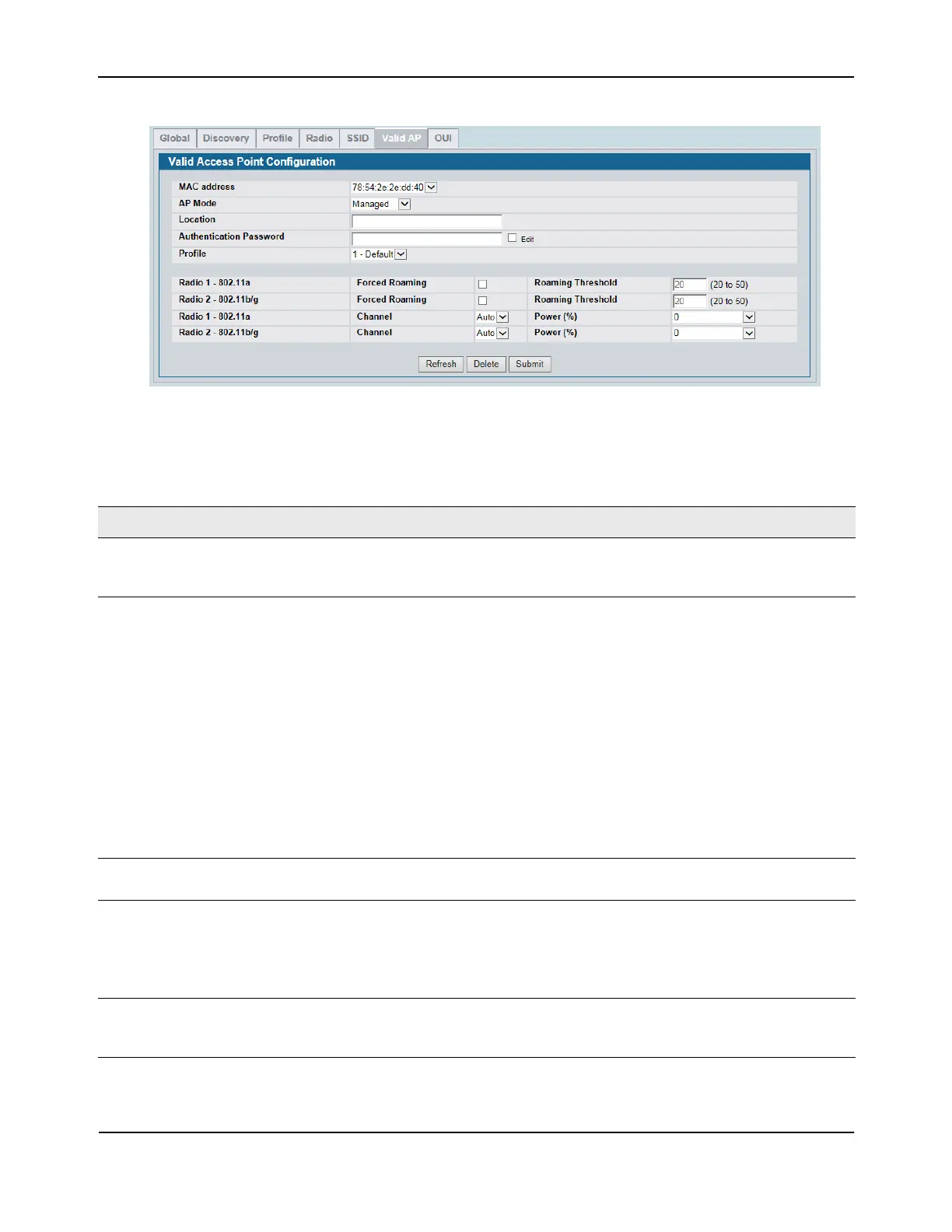

Figure 366: Configuring a Valid AP
Table 334 describes the fields available on the Valid Access Point Configuration page.
Table 334: Valid AP Configuration
Field Description
MAC Address This field shows the MAC address of the AP. To change this field, you must delete the
entire Valid AP configuration and then enter the correct MAC address from the page
that lists all Valid APs.
AP Mode You can configure the AP to be in one of three modes:
• Standalone: The AP acts as an individual access point in the network. You do not
manage the AP by using the switch. Instead, you log on to the AP itself and
manage it by using the Administrator Web User Interface (UI), CLI, or SNMP. If
you select the Standalone mode, the screen refreshes and different fields appear.
See the following table for the Standalone mode field descriptions.
• Managed: The AP is part of the D-Link Unified Switch, and you manage it by using
the DWS-4000 Series switch. If an AP is in Managed Mode, the Administrator
Web UI and SNMP services on the AP are disabled.
• Rogue: Select Rogue as the AP mode if you wish to be notified (through an SNMP
trap, if enabled) when this AP is detected in the network. Additionally, the when
this AP is detected through an RF scan, the status is listed as Rogue. If you select
the Rogue mode, the screen refreshes, and fields that do not apply to this mode
are hidden.
Location To help you identify the AP, you can enter a location. This field accepts up to 32
alphanumeric characters.
Authentication
Password
You can require that the AP authenticate itself with the switch upon discovery. If you
require authentication, which is a setting on the Basic Setup > Global tab, select the
Edit option and enter the password in this field.
The valid password range is between 8 and 63 alphanumeric characters. The
password in this field must match the password configured on the AP.
Profile If you configure multiple AP Profiles, you can select the profile to assign to this AP.
For more information about configuring AP Profiles, see “Advanced Global Settings”
on page 594.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
