D-Link DWL-8610AP User Manual

Configuring Advanced Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 605
D-Link UWS User Manual

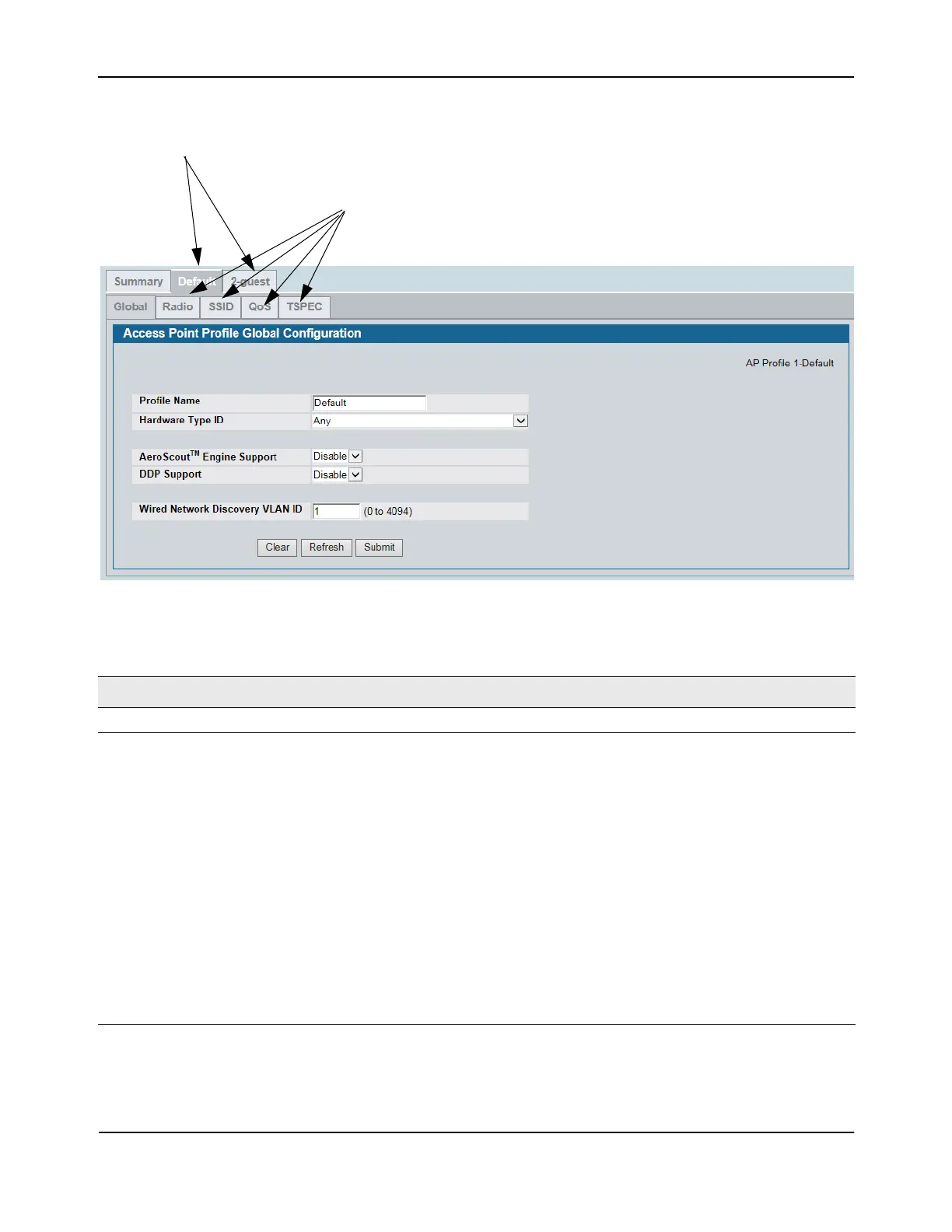

Figure 385: Configuring an AP Profile
Table 353: Access Point Profile Summary
Field Description
Profile Identifies the name of the configured profile.
Profile Status Indicates whether a profile is applied to one or more managed APs and shows the
status for a request to re-apply the profile to its associated managed APs.
The status is one of the following:
• Associated: The profile is configured, and one or more APs managed by the
switch are associated with this profile.
• Associated-Modified: The profile has been modified since it was applied to one
or more associated APs; the profile must be re-applied for the changes to take
effect.
• Apply Requested: After you select a profile and click Apply, the screen refreshes
and shows that an apply has been requested.
• Apply In Progress: The profile is being applied to all APs that use this profile.
During this process the APs reset, and all wireless clients are disassociated from
the AP.
• Configured: The profile is configured, but no APs managed by the switch
currently use this profile.
Profiles
Profile Configuration Pages

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
