D-Link DWL-8610AP User Manual

Managing the BOOTP/DHCP Relay Agent
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 282
D-Link UWS User Manual
BOOTP/DHCP Relay Agent Status
Use the BOOTP/DHCP Relay Agent Status page to display the BOOTP/DHCP Relay Agent configuration and
status information.
To display the page, click LAN > Monitoring > L3 Status > BOOTP/DHCP Relay Agent Status in the navigation
tree.

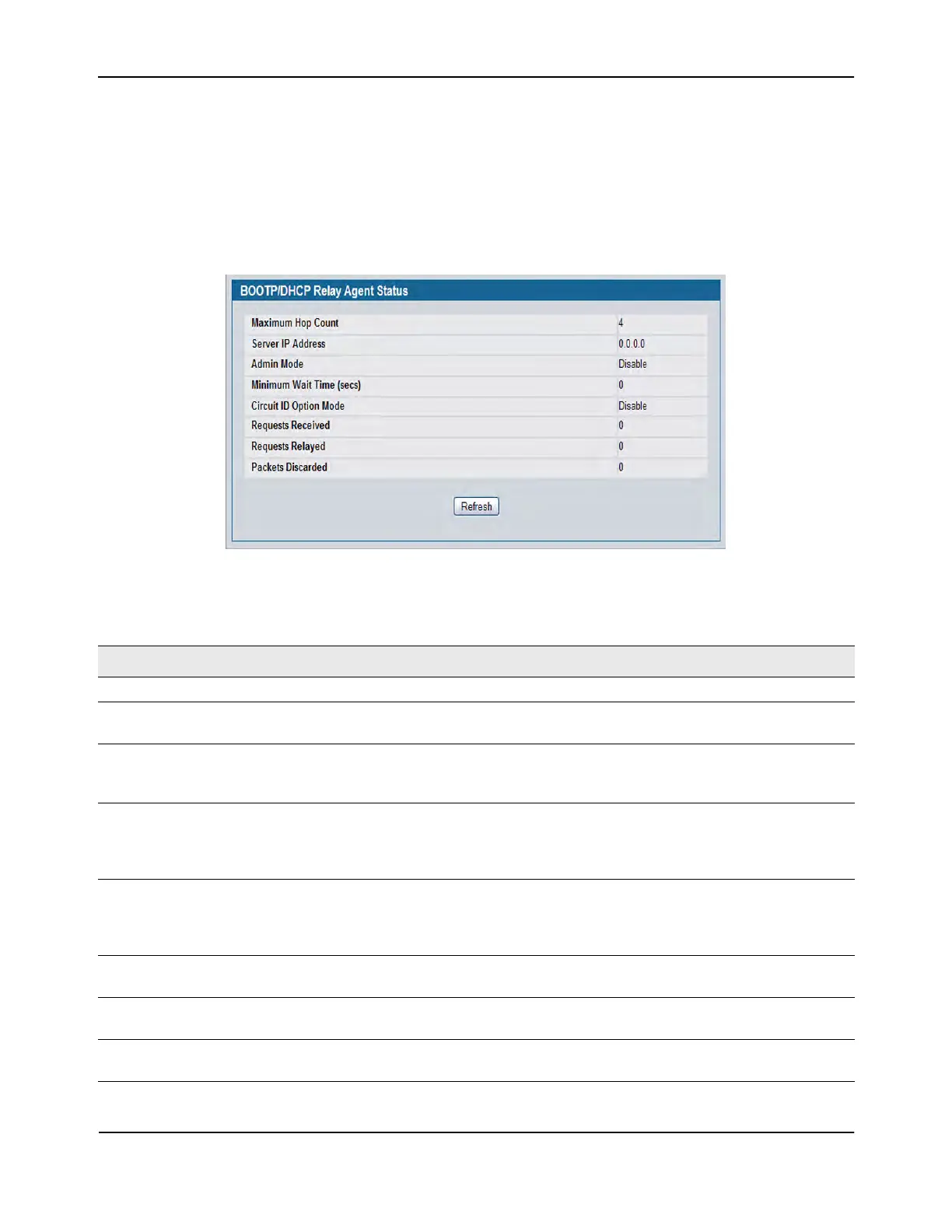

Figure 178: BOOTP/DHCP Relay Agent Status
Table 161: BOOTP/DHCP Relay Agent Status Fields
Field Description
Maximum Hop Count The maximum number of Hops a client request can go without being discarded.
Server IP Address The IP address of the BOOTP/DHCP server or the IP address of the next BOOTP/DHCP
Relay Agent.
Admin Mode The administrative mode of the relay. When you select Enable on the configuration
page, BOOTP/DHCP requests are forwarded to the IP address you entered in the
Server IP address field.
Minimum Wait Time
(secs)
The Minimum time in seconds. This value is compared to the time stamp in the
client's request packets, which should represent the time since the client was
powered up. Packets are only forwarded when the time stamp exceeds the
minimum wait time.
Circuit ID Option Mode This is the Relay agent option, which can be either Enabled or Disabled. If you select
Enable, the relay agent adds Option 82 header packets to the DHCP Request packets
before forwarding them to the server, and strips them off while forwarding the
responses to the client.
Requests Received The total number of BOOTP/DHCP requests received from all clients since the last
time the switch was reset.
Requests Relayed The total number of BOOTP/DHCP requests forwarded to the server since the last
time the switch was reset.
Packets Discarded The total number of BOOTP/DHCP packets discarded by this Relay Agent since the
last time the switch was reset.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
