Configuring Class of Service
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 338
D-Link UWS User Manual
CoS Interface Configuration
Use the CoS Interface Configuration page to apply an interface shaping rate to all ports or to a specific port.
To display the CoS Interface Configuration page, click LAN > QoS > Class of Service > CoS Interface
Configuration in the navigation menu.

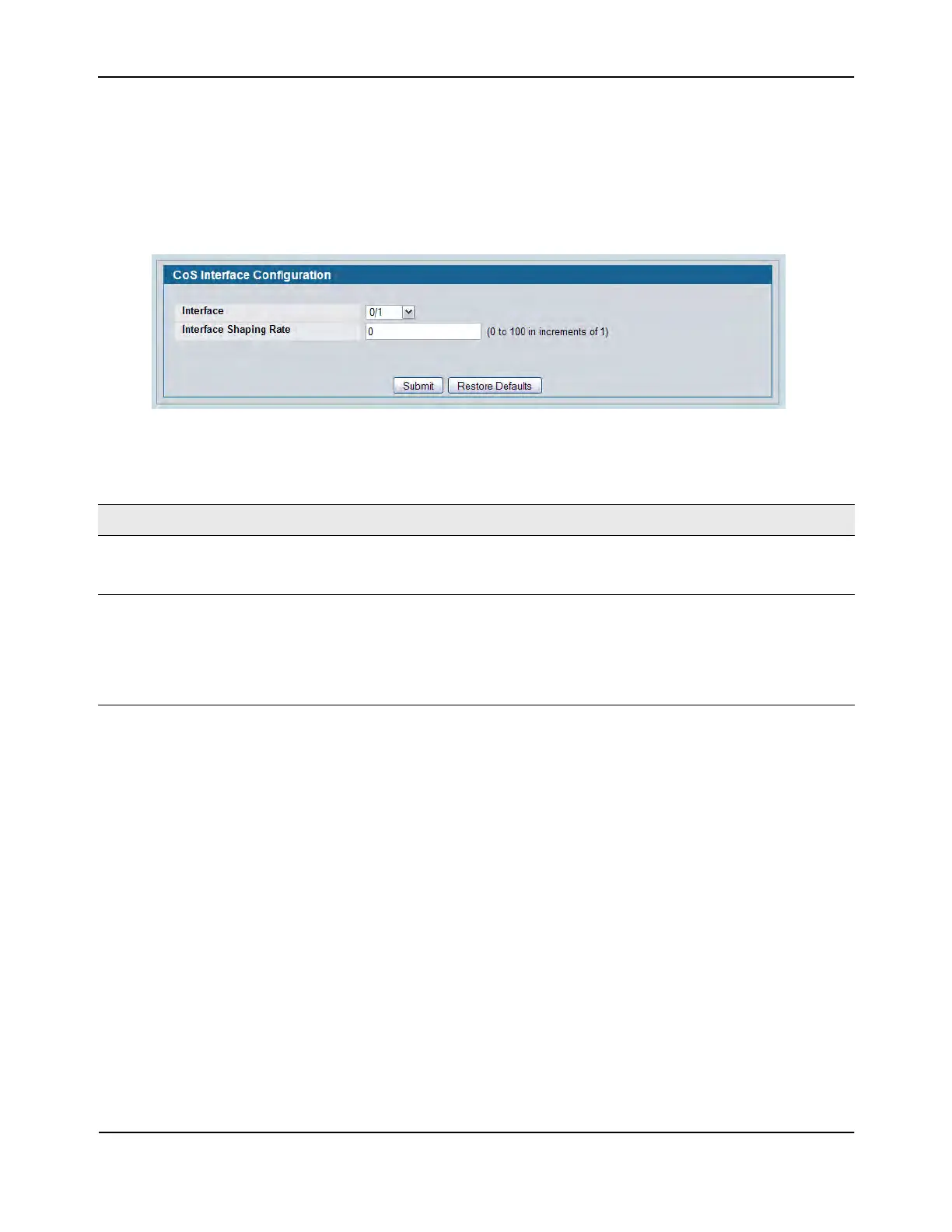

Figure 221: Interface Configuration
• If you make changes to the page, click Submit to apply the changes to the system. Click Restore Defaults
to reset all interfaces to the default trust value.
Table 202: Interface Configuration Fields
Field Description
Interface Selects the CoS configurable interface to be affected by the Interface Shaping
Rate. Select Global to apply a rate to all interfaces. Select an individual port to
override the global setting.
Interface Shaping Rate Sets the limit on how much traffic can leave a port. The limit on maximum
transmission bandwidth has the effect of smoothing temporary traffic bursts
over time so that the transmitted traffic rate is bounded. The specified value
represents a percentage of the maximum negotiated bandwidth. The default
value is zero (0). Valid values are 0-100, in increments of 1. A value of 0 means
the maximum is unlimited.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
