D-Link DWL-8610AP User Manual

RADIUS Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 413
D-Link UWS User Manual
RADIUS Server Configuration
From the RADIUS Authentication Server Configuration page, you can add a new RADIUS server, configure
settings for a new or existing RADIUS server, and view RADIUS server status information. The RADIUS client on
the switch supports up to 32 named authentication and accounting servers.
To access the RADIUS Server Configuration page, click LAN > Security > RADIUS > RADIUS Authentication
Server Configuration in the navigation menu.
If there are no RADIUS servers configured on the system, or if you select Add from the RADIUS Server Host
Address menu, a subset of the fields described in the following table are available. After you enter the RADIUS
host address and click Submit, the additional configuration fields appear.

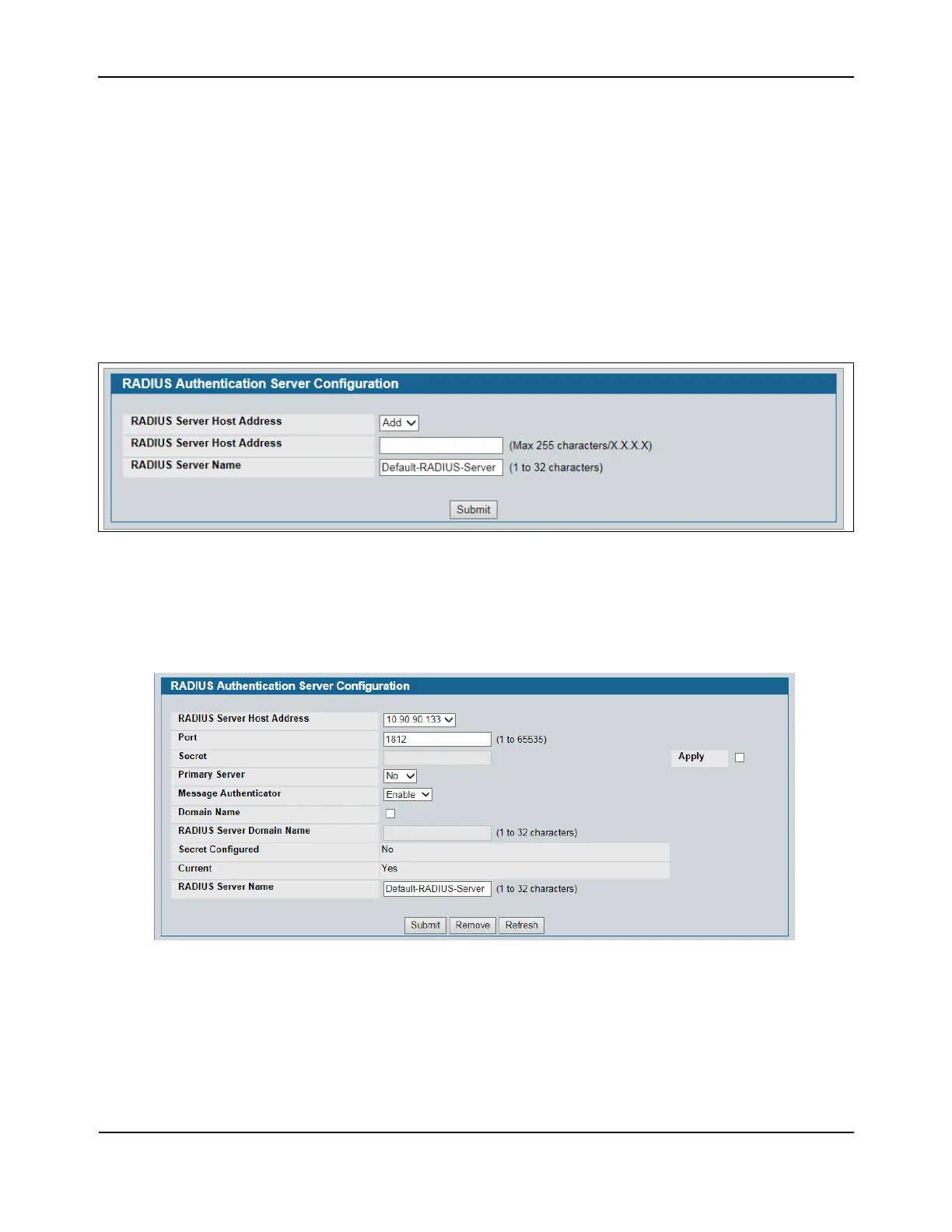

Figure 282: RADIUS Server Configuration—Add Server
If at least one RADIUS server is configured on the switch, and a host address is selected in the RADIUS Server
Host Address field, then additional fields are available on the RADIUS Server Configuration page.
Figure 283: RADIUS Server Configuration—Server Added

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
