Configuring the Wireless Distribution System
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 645
D-Link UWS User Manual
When you add a new WDS-Managed AP group or click the group name, the page refreshes and fields to
configure the group setting appear.

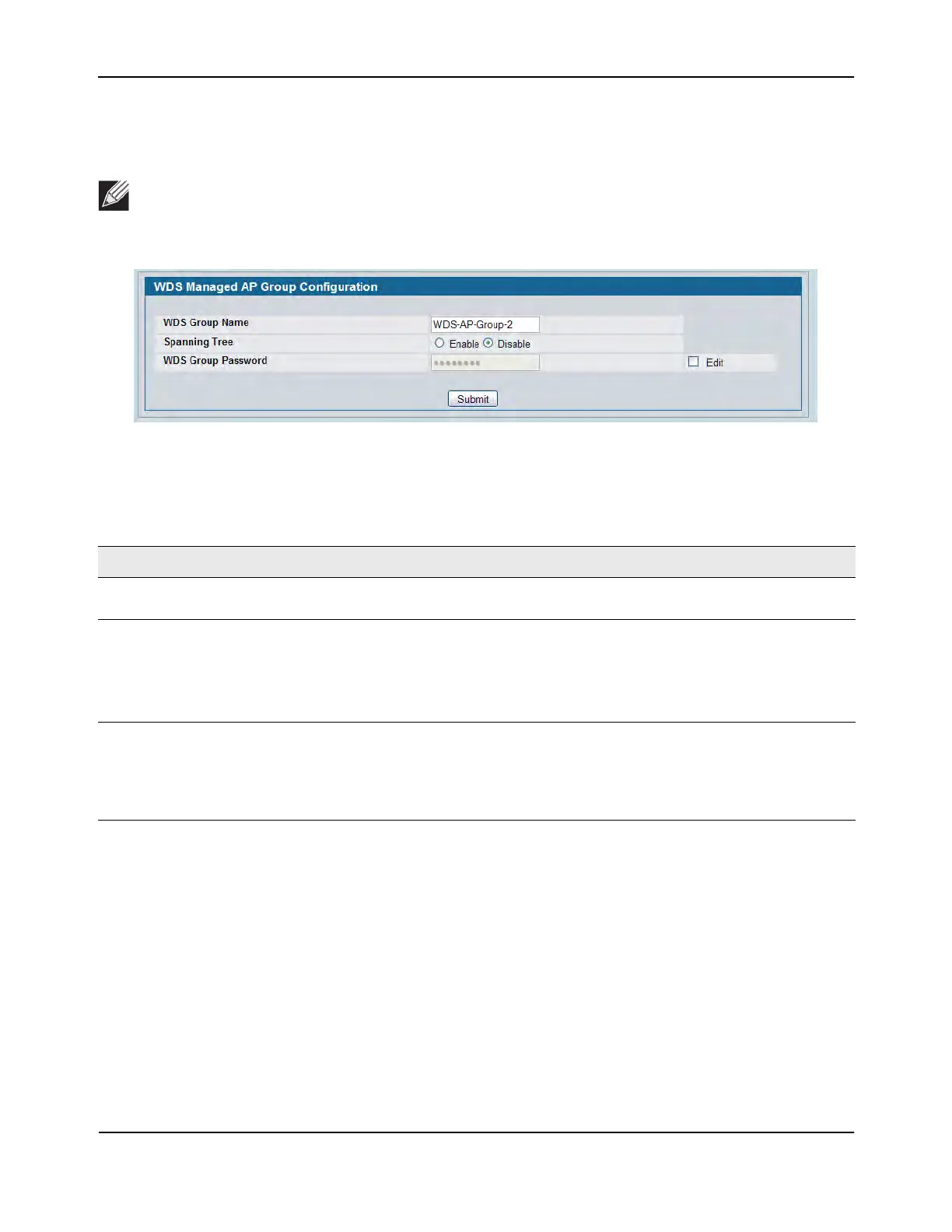

Figure 403: Edit WDS Managed AP Group Settings
The following table shows the fields available to configure a WDS managed AP group.
Command Buttons
The page includes the following buttons:
• Submit—Updates the switch with the values you enter.
Note: After you change WDS-Managed AP group settings, make sure you push the configuration to
other switches in the cluster.
Table 369: Edit WDS Managed AP Group Settings
Field Description
WDS Group Name A descriptive name of the WDS AP group. From this field, you can modify the name of
an existing group, if desired.
Spanning Tree Specifies whether to enable spanning tree on all APs in this WDS AP group.
Spanning tree must be enabled if there are any potential loops in the network. For
example if a satellite AP has links to two root APs then spanning tree must be enabled.
Note: The spanning tree protocol running on the APs interacts with the spanning tree
protocol running on the edge switches to which the APs are connected.
WDS Group
Password
Password used for securing the WPA2-Personal security on the WDS Link. Range: 8 – 63
ASCII characters. To create or change the password, select the Edit checkbox and type
a password in the available field.
This password must match the passwords set on the satellite APs in this group. By
default, the password is AP-Group-n, where n is the AP group ID.
