D-Link DWL-8610AP User Manual

Visualizing the Wireless Network
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 669
D-Link UWS User Manual
Setting Up the Graph
To start the WLAN Visualization tool, click WLAN Visualization > Launch... This opens a new browser window
and starts the Java applet.
The first time you launch the WLAN Visualization tool, there is no background image, and all discovered WLAN
components are ungraphed. The screen is split into two panes. The left pane has four container views that are
used to hold un-graphed components. The right pane is an area where graph definitions are shown. This graph
pane is initially blank and must be defined before WLAN components can be placed.
Creating a New Graph
You can create a graph for each floor of each building within the wireless system. Graphs can be created and
edited only when Live Visualization is disabled. To disable Live Visualization, click the Live Visualization control
button so that it flashes red.

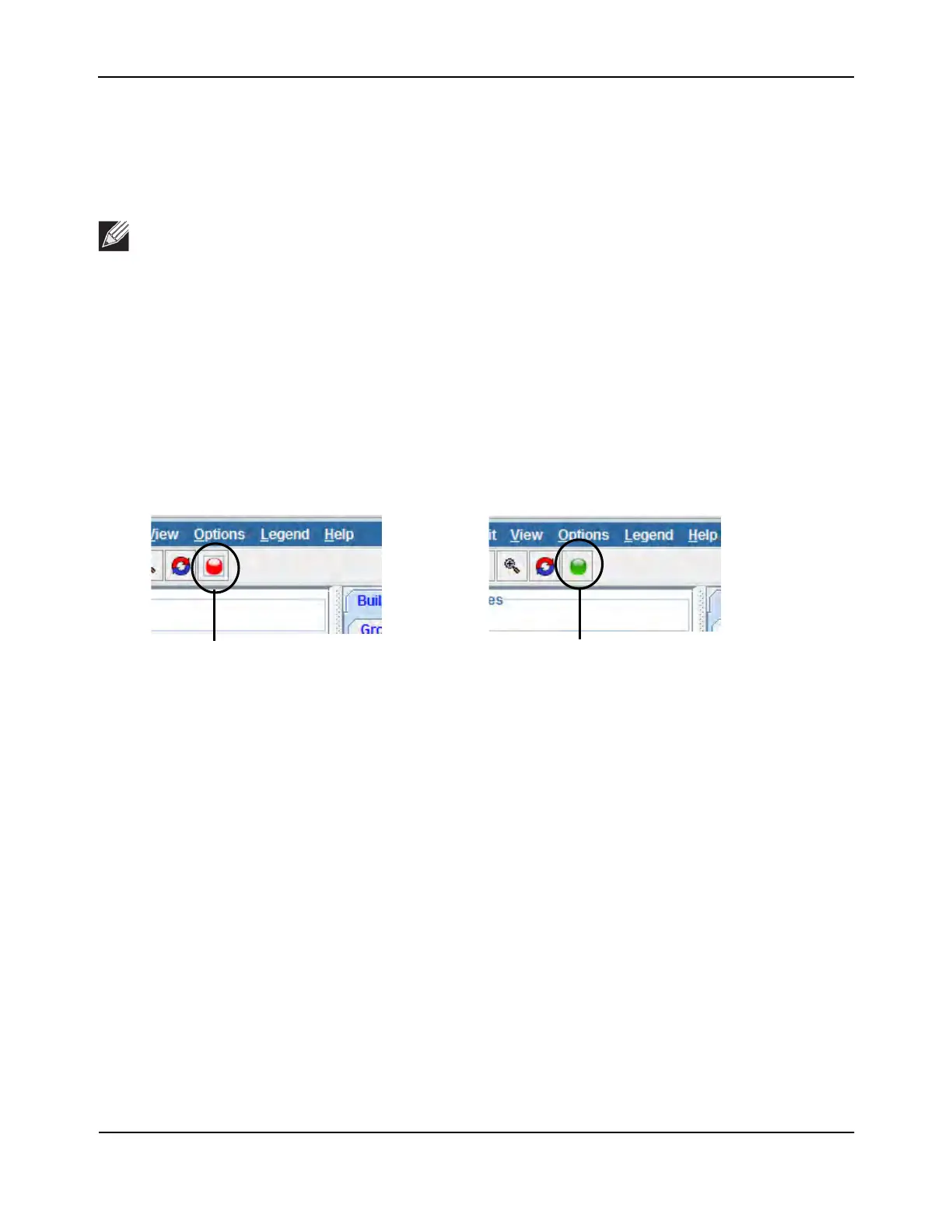

Figure 421: Live Visualization Control
To create a new graph and load the background image, launch the WLAN Visualization tool and use the
following steps.
1. Ensure that Live Visualization is disabled (red).
2. From the WLAN Visualization menu bar, click Edit > New Graph.
The New Graph Definition dialogue box opens.
3. Enter a name to identify the building and floor, and select the appropriate numbers for the building and
floor.
4. Select the image to use as the background.
For information about how to upload an image to use as a graph background, see “Importing and
Configuring a Background Image” on page 668
Note: Your browser must allow pop-up windows to open from the switch.
Live Visualization Disabled Live Visualization Enabled

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
