MAC Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 366
D-Link UWS User Manual
MAC ACL Rule Configuration
Use the MAC ACL Rule Configuration page to define rules for MAC-based ACLs. The access list definition
includes rules that specify whether traffic matching the criteria is forwarded normally or discarded. A default
'deny all' rule is the last rule of every list.
To display the MAC ACL Rule Configuration page, click LAN > QoS > Access Control Lists > MAC Access Control
Lists > Rule Configuration in the navigation menu.
The fields available on the page depend on whether the rule action is permit or deny, and whether you select
Create Rule or an existing rule from the Rule field.

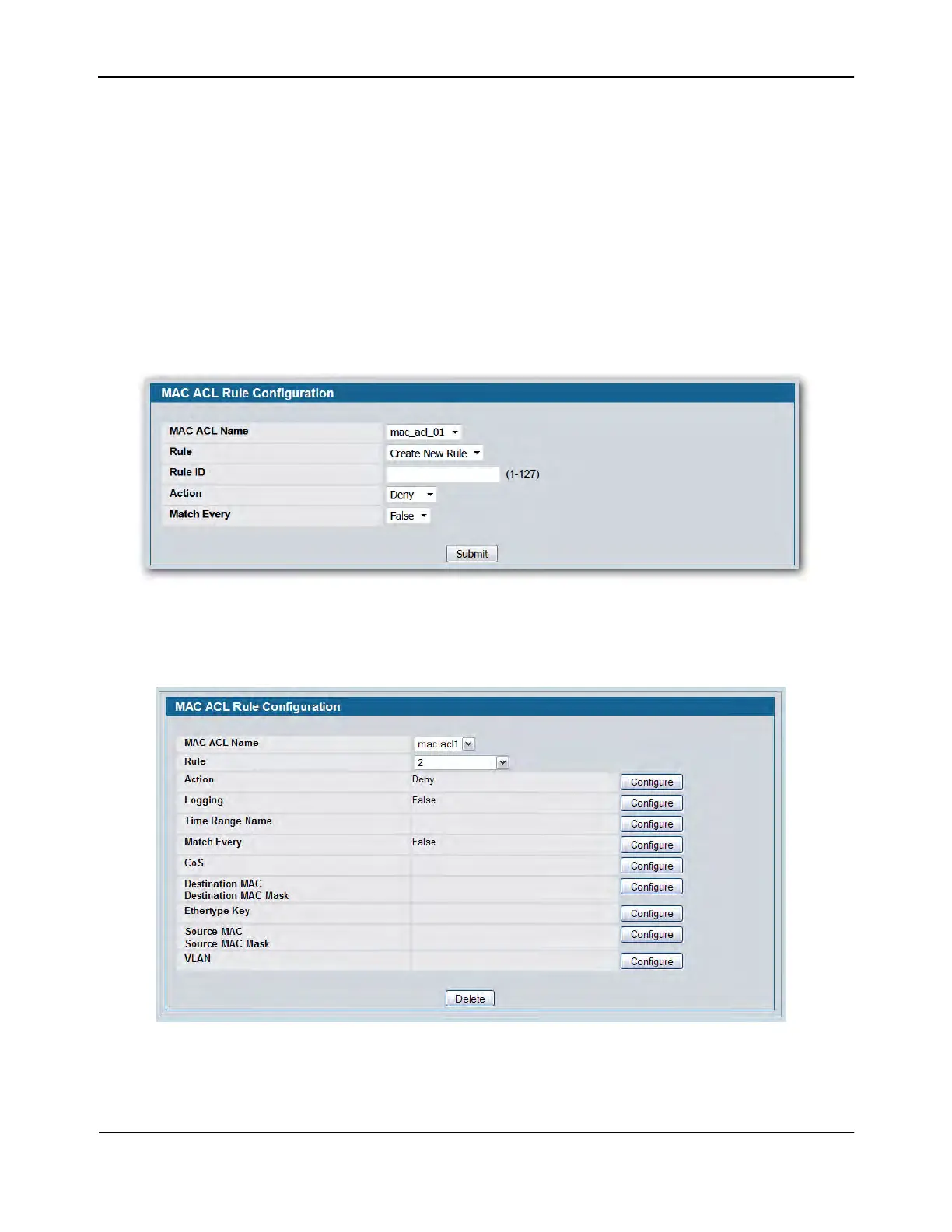

Figure 245 shows the fields available when Create New Rule is selected in the Rule field.
Figure 245: MAC ACL Rule Configuration (Create Rule)
Figure 246 shows the fields available when you configure a MAC ACL rule with a Deny action.
Figure 246: MAC ACL Rule Configuration (Deny Action)

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
