Virtual Router Redundancy Protocol (VRRP)
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 329
D-Link UWS User Manual
VRRP Route Tracking Configuration
Use VRRP Route Tracking Configuration to track specific route IP states within the router that can alter the
priority level of a virtual router for a VRRP group.
To display the page, click LAN > L3 Features > VRRP > Virtual Router Configuration in the navigation tree, then
click the Track Route button.

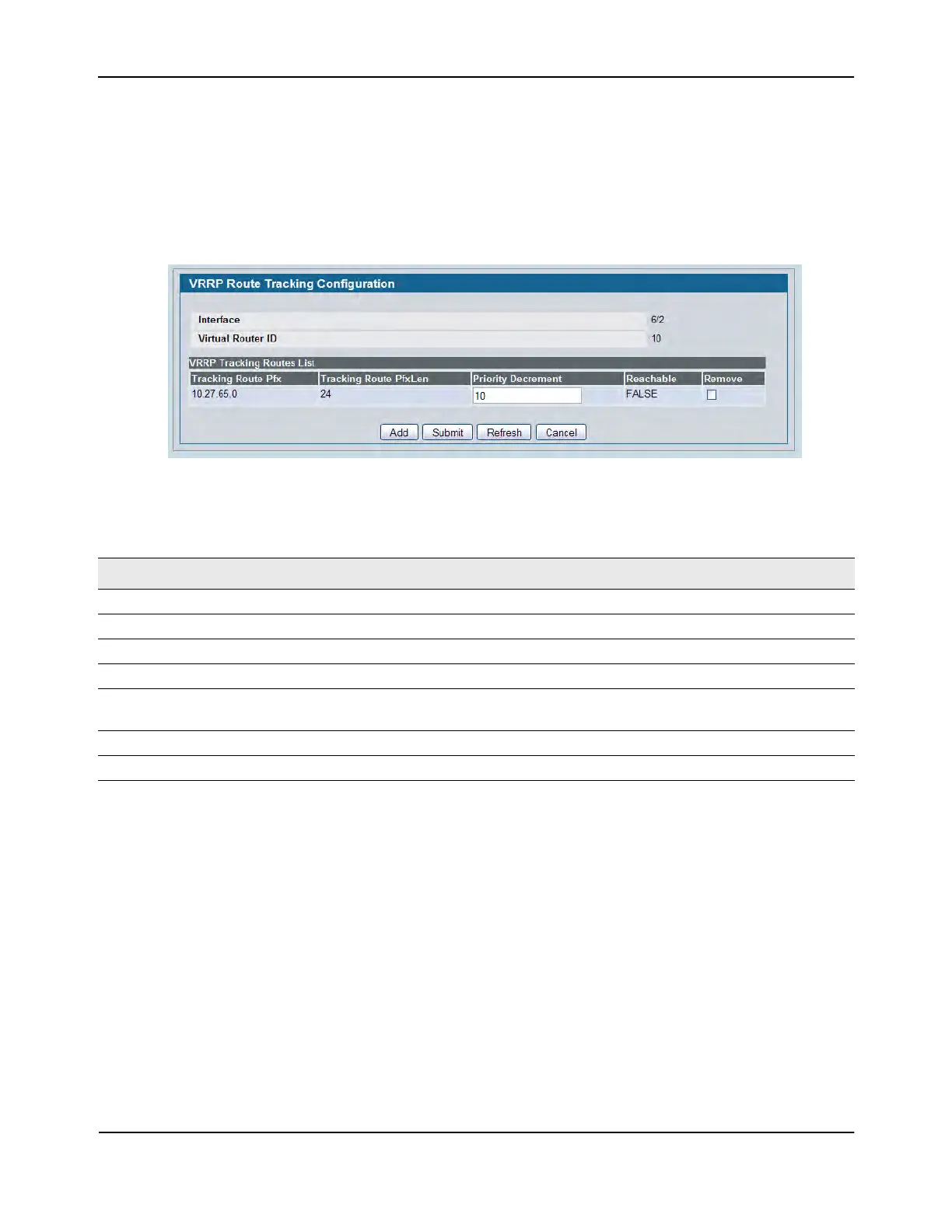

Figure 214: VRRP Route Tracking Configuration
• Click Add to proceed to the VRRP Route Tracking page.
• Click Submit to send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a Save configuration is
performed.
• Click Refresh to refresh the page with the most current data from the switch.
• Click Cancel to return to the Virtual Router Configuration page.
Table 195: VRRP Route Tracking Configuration Fields
Field Description
Interface The interface associated with the Virtual Router ID.
Virtual Router ID The Virtual Router ID for which tracking data is to be displayed.
Tracking Route Pfx The prefix of the tracked route.
Tracking Route PfxLen The prefix length of the tracked route.
Priority Decrement Enter the priority decrement for the tracked route. The valid range is 1-254.
The default value is 10.
Reachable The reachability of the tracked route.
Remove Removes the selected tracking routes from the VRRP tracked list.
