D-Link DWL-8610AP User Manual

Configuring Advanced Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 640
D-Link UWS User Manual
Provisioning
Use the Switch Provisioning page to request provisioning information from a switch in the cluster. After the
new switch receives the provisioning information, it can join the cluster.

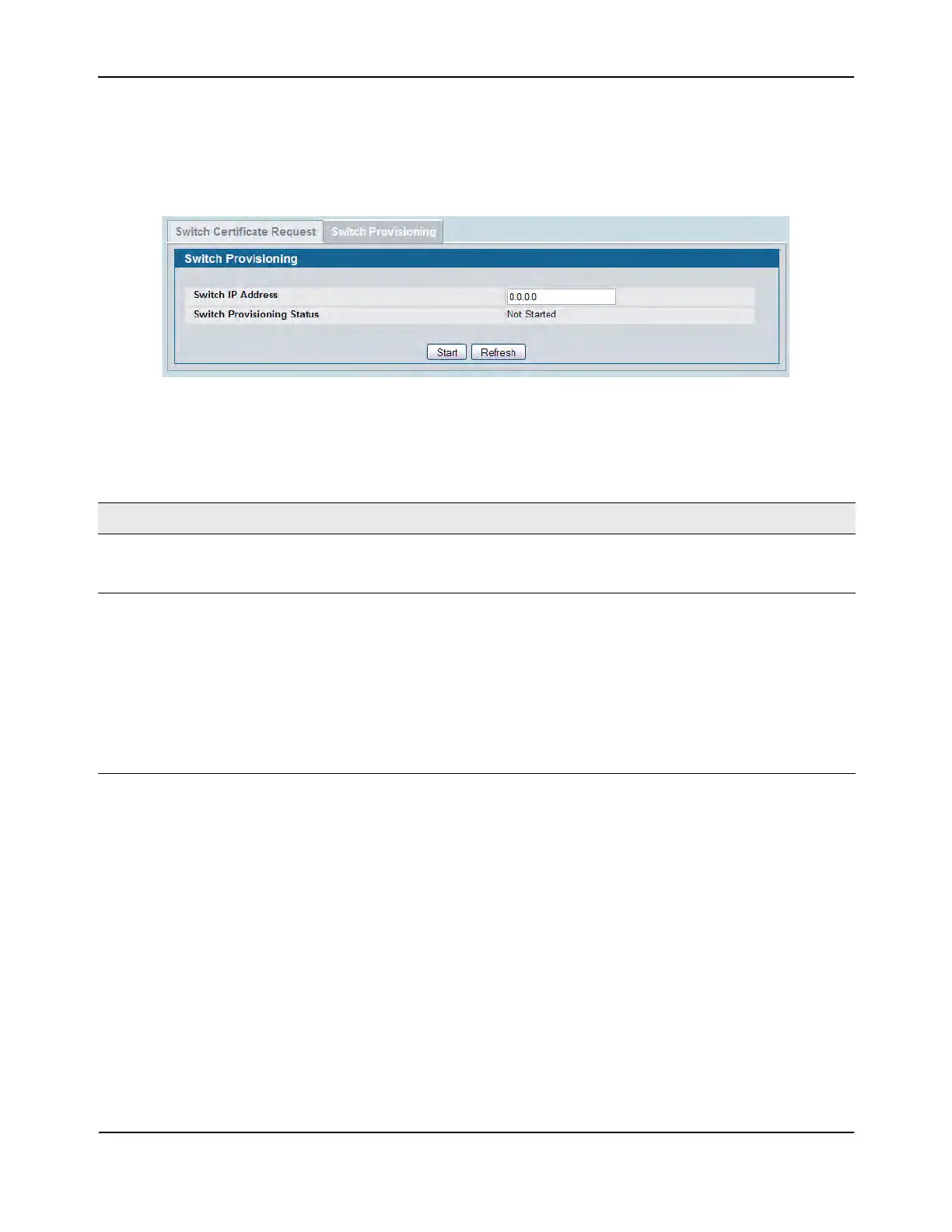

Figure 400: Switch Provisioning
The following table shows the fields available on the Switch Provisioning page.
Command Buttons
The page includes the following buttons:
• Start—Initiates the provisioning request for the switch.
• Refresh—Updates the page with the latest information.
Table 367: Switch Provisioning
Field Description
Switch IP Address Enter the IP address of the switch in a cluster to which a new switch
establishes a connection to obtain provisioning information. The
provisioning information enables the new switch to join the cluster.
Switch Provisioning Status Shows the status of the provisioning, which is one of the following:
• Not Started
• Success—The provisioning sequence completed successfully.
• Connection Failed—Can't establish TLS connection with the cluster
switch.
• Provisioning Failed—The switch in the cluster did not respond with
expected messages. This can happen if the switch is running code
that does not support switch provisioning or the switch
provisioning mode is disabled on the switch in the cluster.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
