D-Link DWL-8610AP User Manual

Switch Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 64
D-Link UWS User Manual
Defining System Information
1. Open the System Description page.
2. Define the following fields: System Name, System Contact, and System Location.
3. If the SNTP Time has synchronized, you can click the Synchronize system time with NTP time to apply the
SNTP time to system time
4. Click Submit.
The system parameters are applied, and the device is updated.
Switch Configuration
From the Switch Configuration page, you can control the IEEE 802.3x flow control mode for the switch.
IEEE 802.3x flow control works by pausing a port when the port becomes oversubscribed and dropping all
traffic for small bursts of time during the congestion condition. This can lead to high-priority and/or network
control traffic loss. When 802.3x flow control is enabled, lower speed switches can communicate with higher
speed switches by requesting that the higher speed switch refrains from sending packets. Transmissions are
temporarily halted to prevent buffer overflows.
To display the Switch Configuration page, click LAN > Administration > Switch Configuration in the navigation
tree.

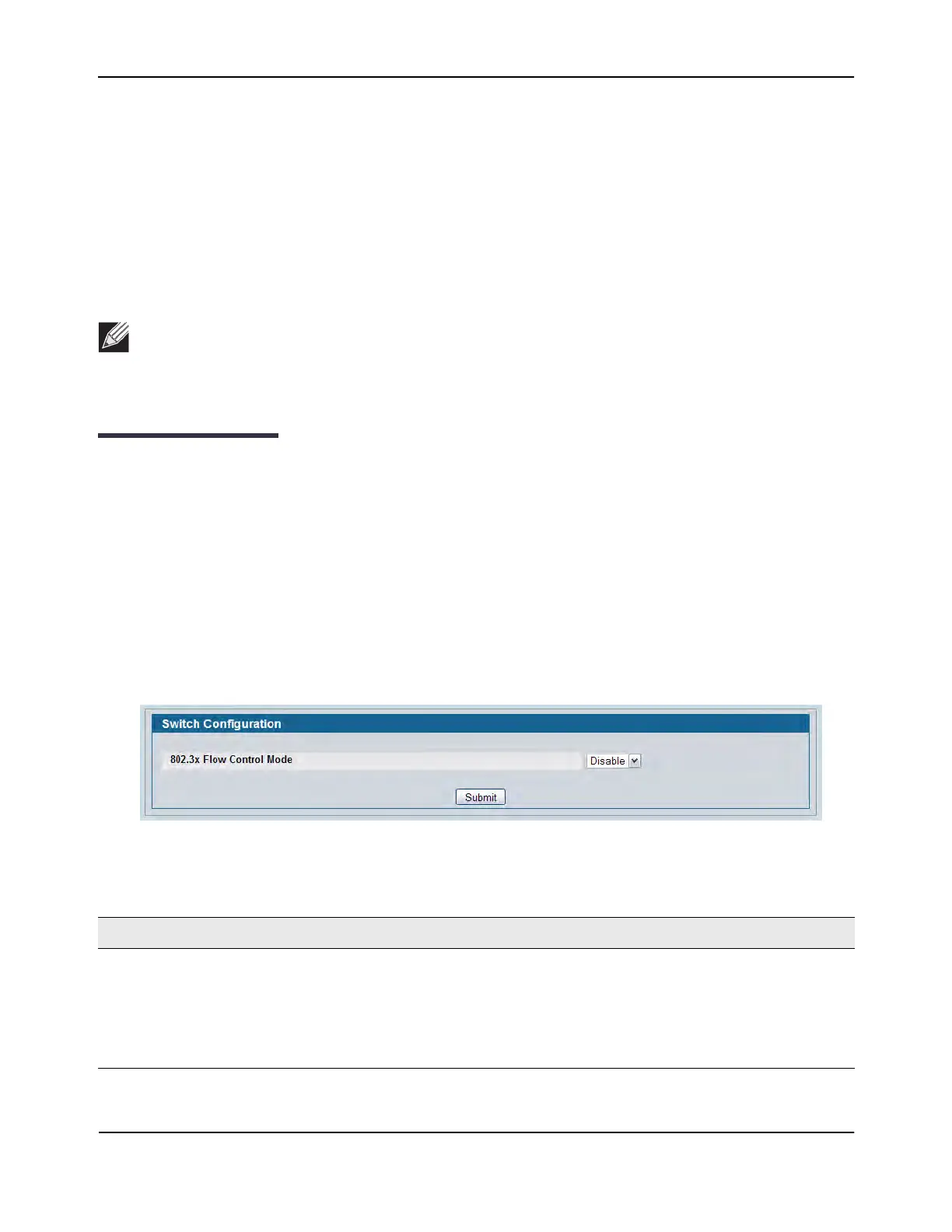

Figure 8: Switch Configuration
Note: If you want the switch to retain the new values across a power cycle, you must perform a
configuration save, but the System Time does not need a save to retain the new values across a
power cycle.
Table 4: Switch Configuration Fields
Field Description
IEEE 802.3x Flow
Control Mode
Enables or disables IEEE 802.3x flow control on the system. The factory default is
disabled.
• Enable: Enables flow control so that the switch can communicate with higher
speed switches.
• Disable: Disables flow control so that the switch does not send pause packets if
the port buffers become full.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
