Peer Switch
The Peer Switch Configuration feature allows you to send a variety of configuration information from one
switch to all other switches. In addition to keeping the switches synchronized, this function allows you to
manage all wireless switches in the cluster from one switch. The Peer Switch Configuration Request Status
page provides information about the status of the configuration upgrade on the switches in the cluster.

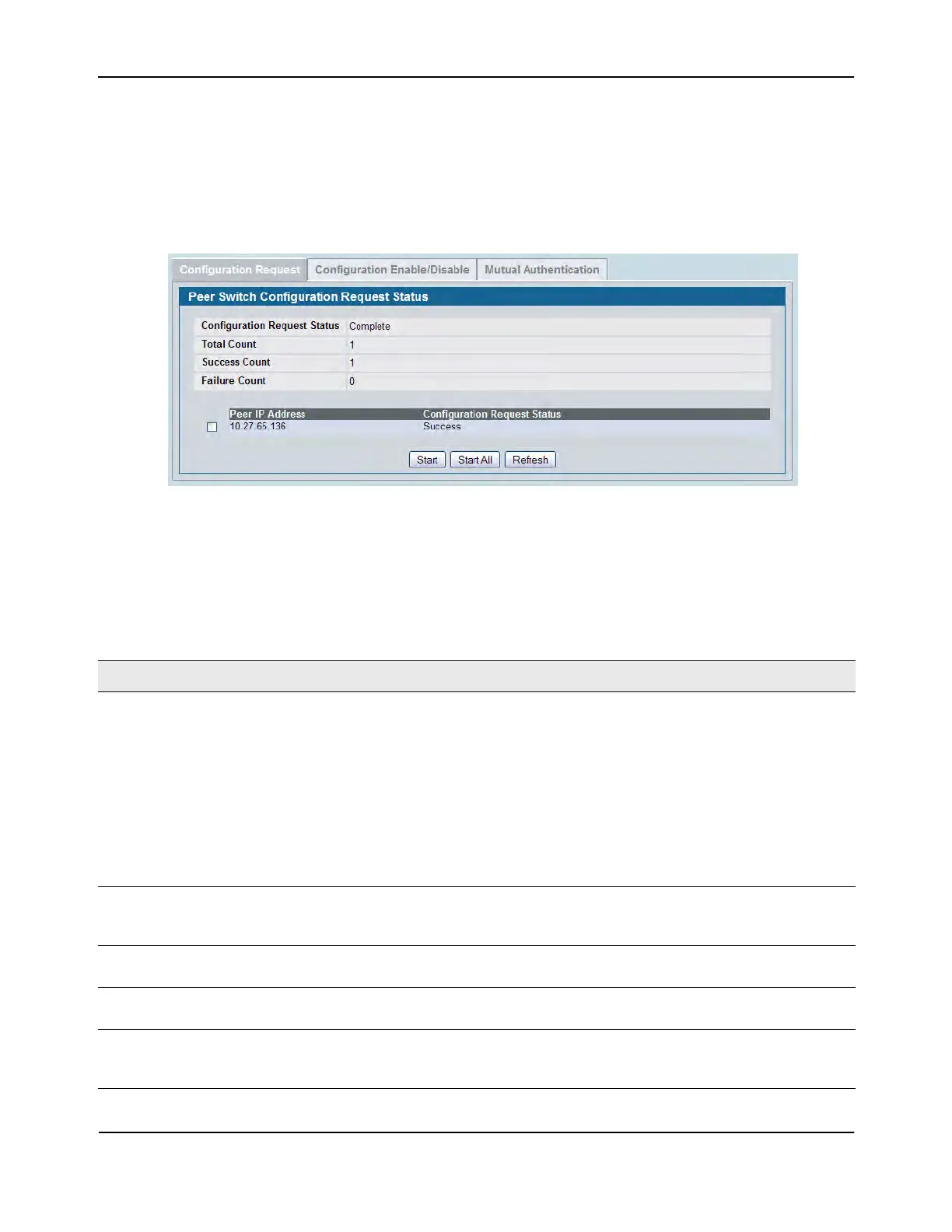

Figure 392: Peer Switch Configuration Request Status
To initiate a configuration update on a specific peer switch, select the box next to the IP address of the peer
switch to update, and then click Start. To update all peer switches, click Start All.
The following table describes the fields on the Peer Switch Configuration Request Status page.
Table 359: Peer Switch Configuration Request Status
Field Description
Configuration Request Status Indicates the global status for a configuration push operation to one or
more peer switches. The status can be one of the following:
• Not Started
• Receiving Configuration
• Saving Configuration
• Success
• Failure—Invalid Code Version
• Failure—Invalid Hardware Version
• Failure—Invalid Configuration
Total Count Indicates the number of peer switches included at the time a
configuration download request is started, the value is 1 if a download
request is for a single switch.
Success Count Indicates the total number of peer switches that have successfully
completed a configuration download.
Failure Count Indicates the total number of peer switches that have failed to
complete a configuration download.
Peer IP Address If one or more peer switches are present, lists the IP address of each
switch in the cluster and indicates the configuration request status of
that switch.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
