Configuring Dynamic ARP Inspection
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 275
D-Link UWS User Manual
DAI VLAN Configuration
Use the DAI VLAN Configuration page to select the DAI-capable VLANs for which information is to be displayed
or configured.
To display the DAI Configuration page, click LAN > L2 Features>Dynamic ARP Inspection > DAI VLAN
Configuration in the navigation tree.

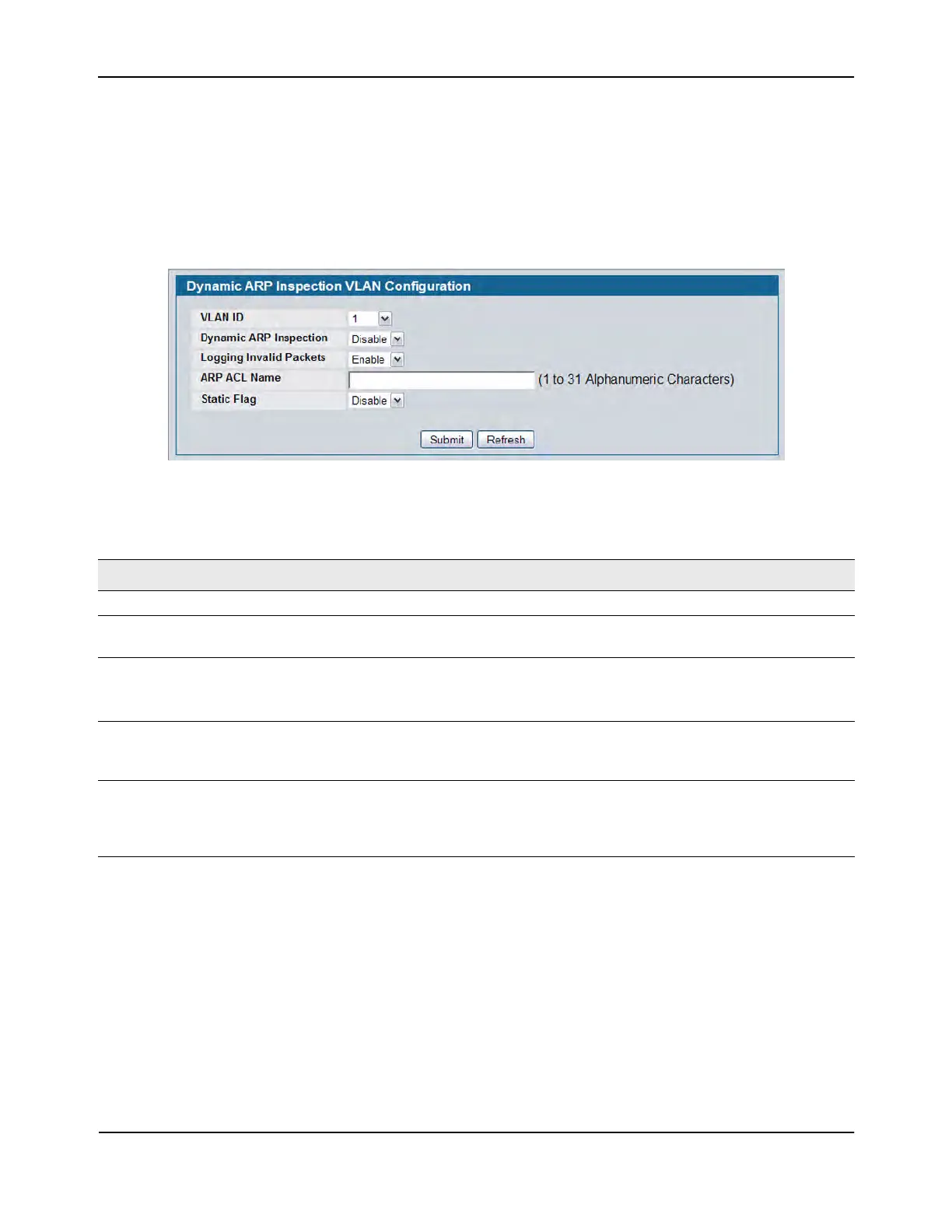

Figure 172: Dynamic ARP Inspection VLAN Configuration
• Click Submit to apply the new configuration and cause the change to take effect. These changes will not
be retained across a power cycle unless a Save configuration is performed.
• Click Refresh to refresh the page with the most current data from the switch.
Table 155: Dynamic ARP Inspection VLAN Configuration
Field Description
VLAN ID Select the VLAN ID for which information is to be displayed or configured.
Dynamic ARP
Inspection
Select whether Dynamic ARP Inspection is Enabled or Disabled on this VLAN. The default
is Disable.
Logging Invalid
Packets
Select whether Dynamic ARP Inspection logging is Enabled or Disabled on this VLAN. The
default is Disable.
ARP ACL Name The name of the ARP Access List. A VLAN can be configured to use this ARP ACL containing
rules as the filter for ARP packet validation. The name can contain 1-31 alphanumeric
characters.
Static Flag Use this flag to determine whether the ARP packet needs validation using the DHCP
snooping database, in case the ARP ACL rules do not match. If Enabled, then the ARP
Packet will be validated by the ARP ACL Rules only. If Disabled, then the ARP Packet needs
further validation by using the DHCP Snooping entries. The default is Disable.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
