Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 386
D-Link UWS User Manual
CP Configuration
From the CP Configuration page, you can view summary information about captive portals on the system, add
a captive portal, and configure existing captive portals.
Use the CP Summary page to create or delete captive portal configurations. The switch supports 10 CP
configurations. CP configuration 1 is created by default and can not be deleted. Each captive portal
configuration can have unique guest or group access modes and a customized acceptance use policy that
displays when the client connects.
To view summary information about existing captive portals, or to add or delete a captive portal, click LAN >
Security > Captive Portal > CP Configuration.

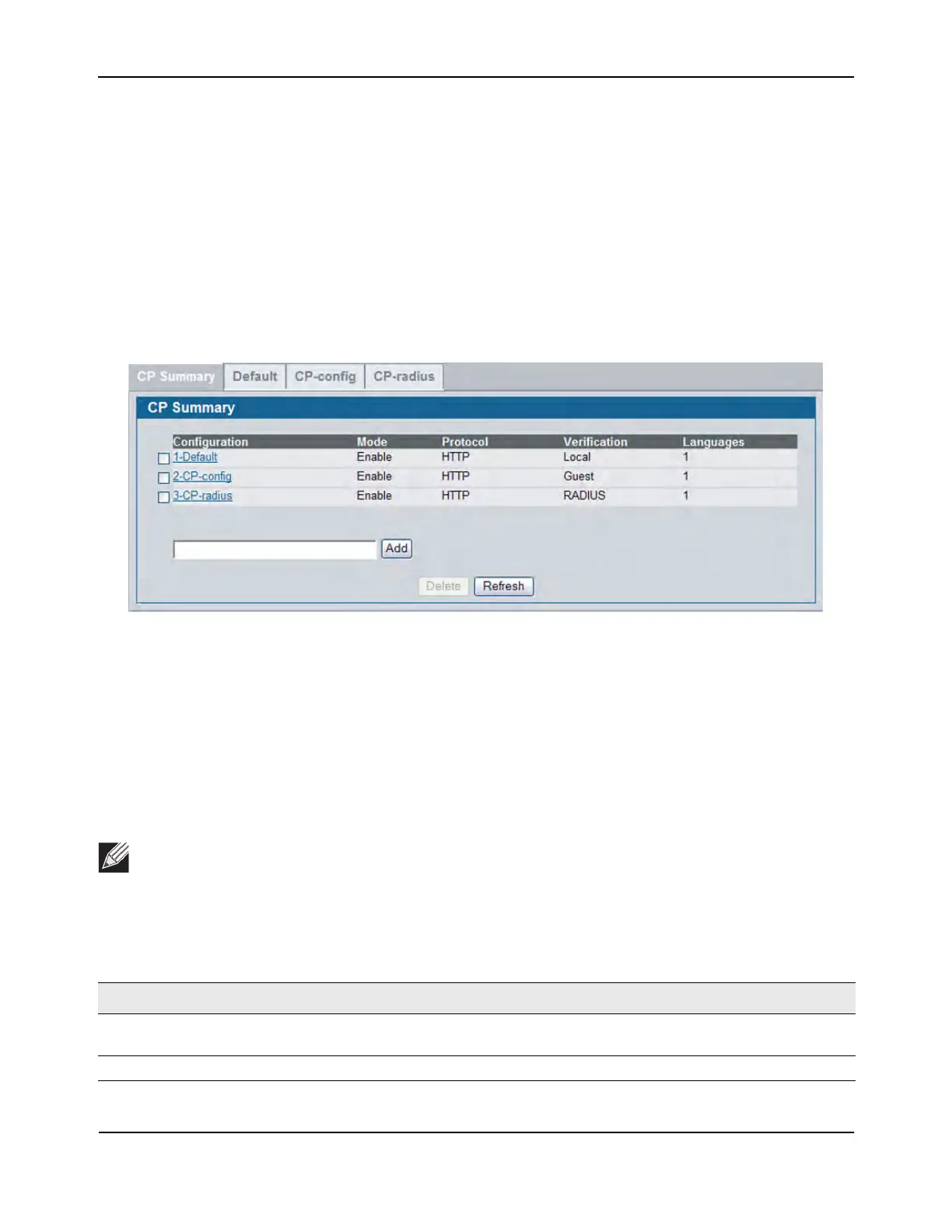

Figure 260: Captive Portal Summary
To create a CP configuration, enter the configuration name in the text box and click Add. After you add the
configuration, the CP Configuration page for that configuration appears and a new tab with the name of that
configuration is created.
To delete an existing CP, select the check box for the CP to remove, and then click Delete.
To configure the settings for an existing CP, click the name in the Configuration column or click the appropriate
tab.
Table 224 describes the fields on the CP Summary page.
Note: In this document, the names captive portal or CP or portal are sometimes used in place of CP
Configuration.
Table 224: Captive Portal Summary
Field Description
Configuration Shows the captive portal ID and name. To access the configuration page for an exiting
CP, click the configuration name.
Mode Shows whether the CP is enabled.
