D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 190
D-Link UWS User Manual
Managing Protocol-Based VLANs
In a protocol-based VLAN, traffic is bridged through specified ports based on the protocol associated with the
VLAN. User-defined packet filters determine whether a particular packet belongs to a particular VLAN.
Protocol-based VLANs are most often used in situations where network segments contain hosts running
multiple protocols.
You can use a protocol-based VLAN to define filtering criteria for untagged packets. By default, if you do not
configure any port-based (IEEE 802.1Q) or protocol-based VLANs, untagged packets are assigned to VLAN 1.
You can override this behavior by defining either port-based VLANs, protocol-based VLANs, or both. Tagged
packets are always handled according to the IEEE 802.1Q standard and are not included in protocol-based
VLANs.
If you assign a port to a protocol-based VLAN for a specific protocol, untagged frames received on that port for
that protocol will be assigned the protocol-based VLAN ID. Untagged frames received on the port for other
protocols will be assigned the Port VLAN ID (PVID), which is either the default PVID (1) or a PVID you have
specifically assigned to the port using the Port VLAN Configuration screen.
Use the Protocol-based VLAN Configuration page to configure which protocols go to which VLANs, and then
enable certain ports to use these settings.
You define a protocol-based VLAN by creating a group. Each group has a one-to-one relationship with a VLAN
ID, can include one or more protocol definitions, and can include multiple ports.
To display the Protocol-Based VLAN Configuration page, click LAN > L2 Features>VLAN > Protocol-based
VLAN > Configuration in the navigation tree.

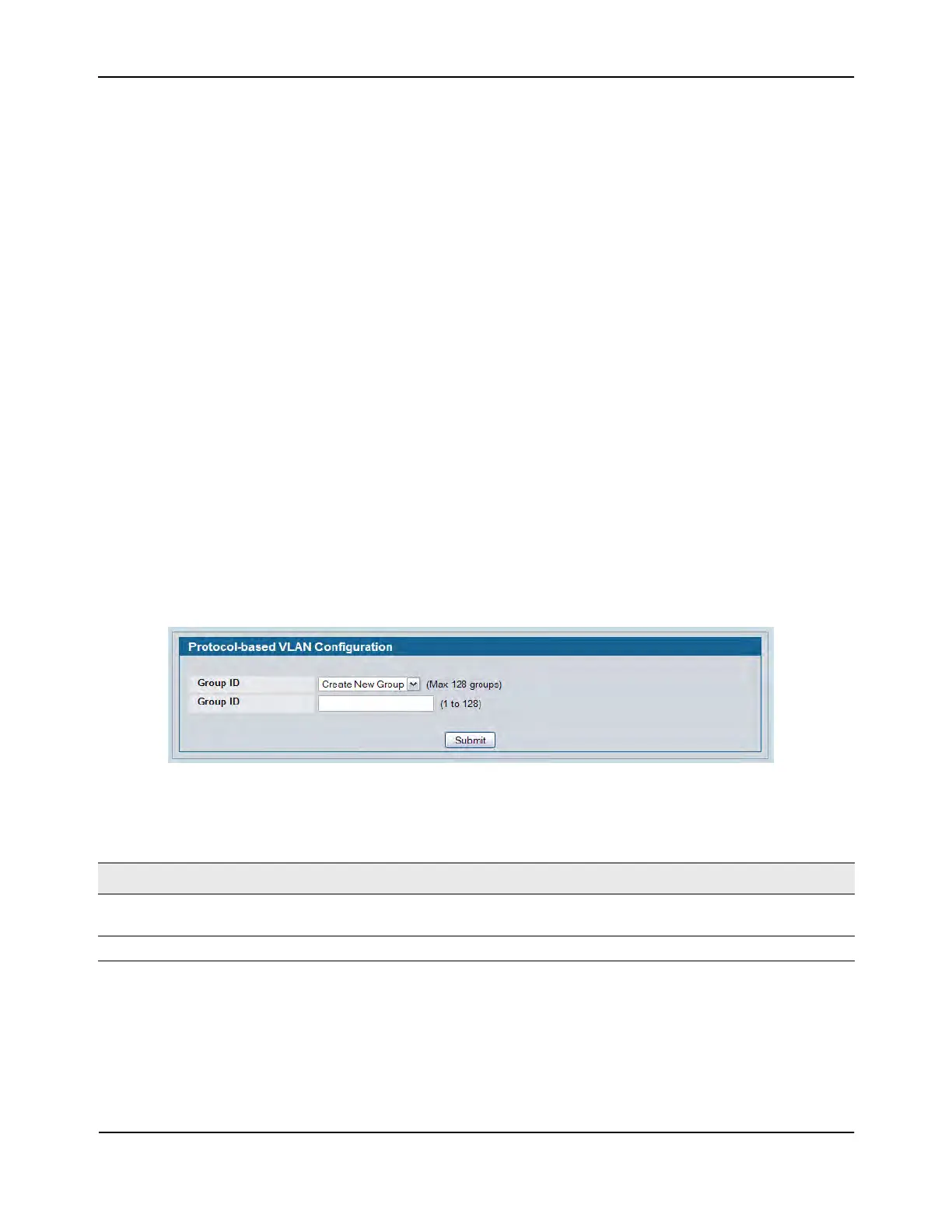

Figure 99: Create Protocol Group
Table 85: Protocol Group Fields (No Groups)
Field Description
Group When no protocol-based VLAN groups exist, only the Create New Group option is
available.
Group ID Specify a number to identify the group to create.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
