D-Link DWL-8610AP User Manual

Configuring MLD Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 228
D-Link UWS User Manual
• If you make any changes on the page, click Submit to apply the new settings to the switch.
VLAN Status
Use the MLD Snooping VLAN Status page to view information about the VLANs on the system that are
configured for MLD snooping.
To access the MLD Snooping VLAN Status page, click Monitoring > MLD Snooping > VLAN Status in the
navigation tree.

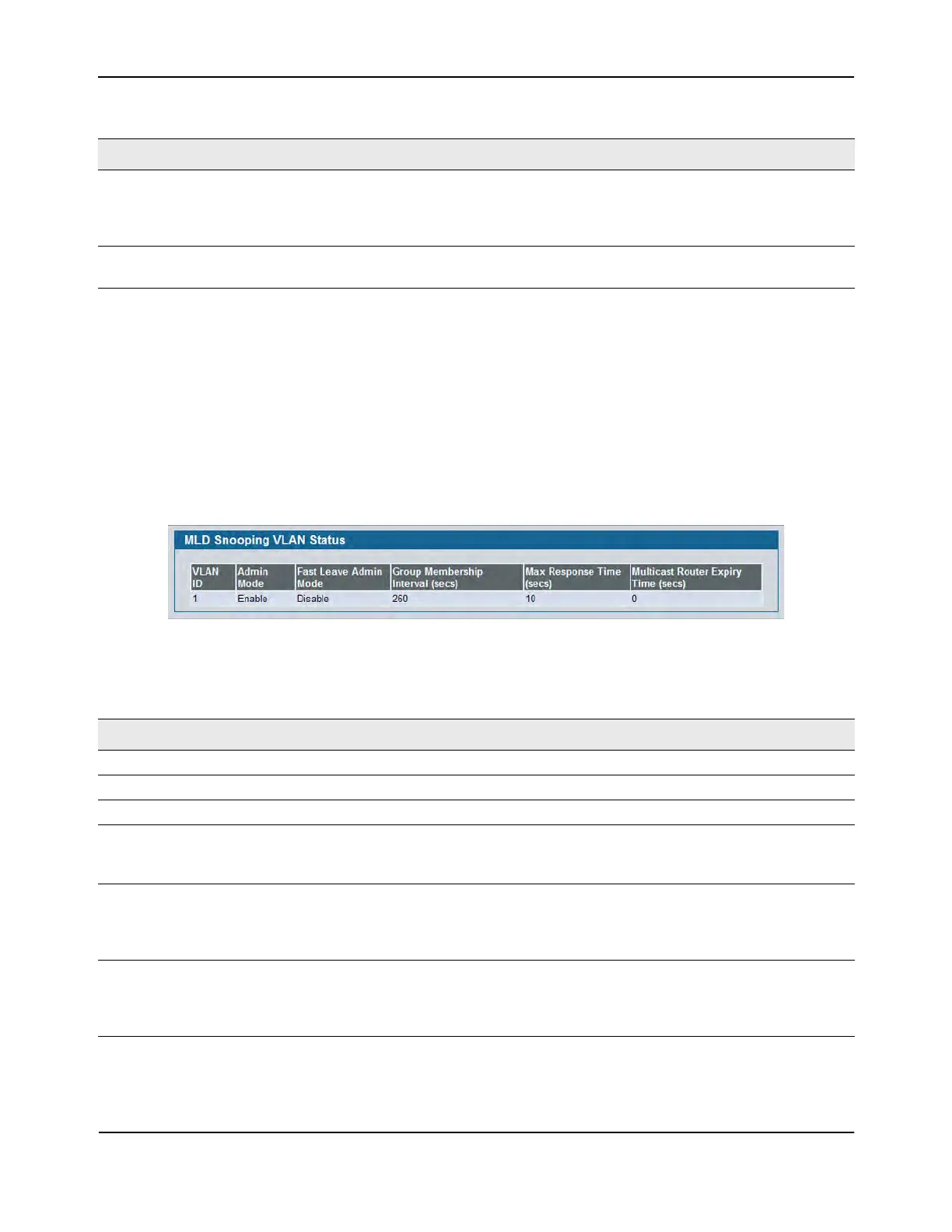

Figure 133: MLD Snooping VLAN Status
• Click Refresh to re-display the page with the latest information from the router.
Multicast Router Present
Expiration Time
Specify the amount of time you want the switch to wait to receive a query on
an interface before removing it from the list of interfaces with multicast
routers attached. Enter a value between 0 and 3600 seconds. The default is 0
seconds. A value of zero indicates an infinite timeout; i.e., no expiration.
Fast Leave Admin Mode Select the Fast Leave mode for the a particular interface from the pulldown
menu. The default is Disable.
Table 117: MLD Snooping VLAN Status Fields
Field Description
VLAN ID Displays the VLAN IDs for which the MLD Snooping mode is Enabled.
Admin Mode Shows the MLD Snooping Mode for the VLAN ID.
Fast Leave Admin Mode Indicates whether MLD Snooping Fast-leave is active on the VLAN.
Group Membership Interval Shows the amount of time in seconds that a switch will wait for a report from
a particular group on a particular interface, which is participating in the VLAN,
before deleting the interface from the entry. The valid range is 2 to 3600.
Maximum Response Time Shows the amount of time the switch waits after it sends a query on an
interface, participating in the VLAN, because it did not receive a report for a
particular group on that interface. The valid range is 1 to 3599. Its value should
be greater than group membership interval value.
Multicast Router Expiry Time Shows the amount of time to wait before removing an interface that is
participating in the VLAN from the list of interfaces with multicast routers
attached. The interface is removed if a query is not received. The valid range
is 0 to 3600.
Table 116: MLD Snooping Interface Configuration Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
