D-Link DWL-8610AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 720
D-Link UWS User Manual

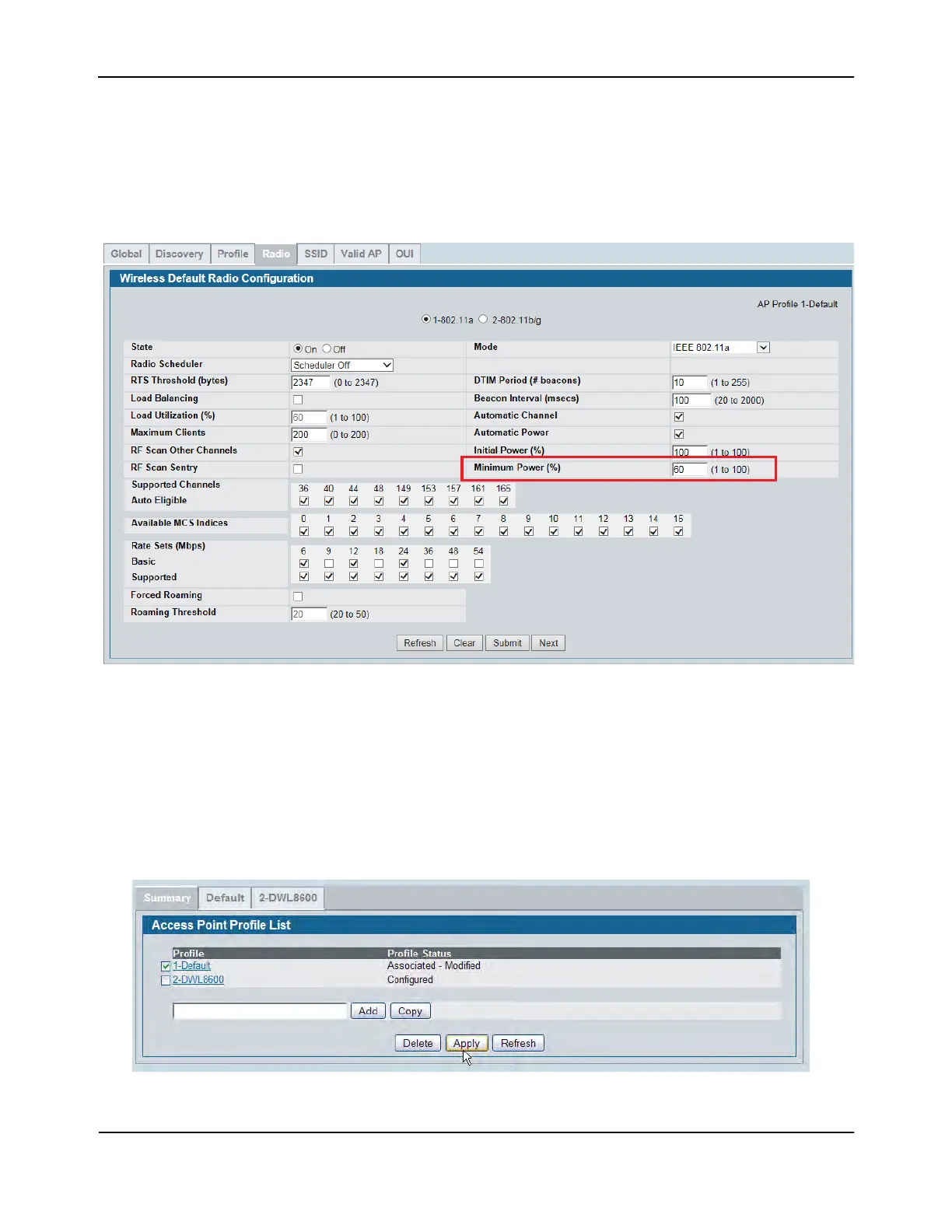

Configuring the Automatic Power Adjustment
This example describes how to run and apply the Automatic Power Adjustment (APA) algorithm.
1. To adjust the minimum power level setting on the AP profile, go to the WLAN > Administration > Basic
Settings > Radio page and set the Minimum Power field to a percentage lower than 100, for example 60%.
2. Click Submit.
3. Optionally, select Radio 2 and configure the Minimum Power setting, and then click Submit.
4. If the APs are already managed, use the following steps to reapply the profile so the new settings take
effect:
a. Go to the WLAN > Administration > Advanced Configuration > AP Profiles page.
b. Select the check box next to the profile you modified.
c. Click Apply.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
