D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 188
D-Link UWS User Manual
VLAN Port Configuration
Use the VLAN Port Configuration page to configure a virtual LAN on a port.
To access the VLAN Port Configuration page, click LAN > L2 Features> VLAN > Port Configuration in the
navigation tree.

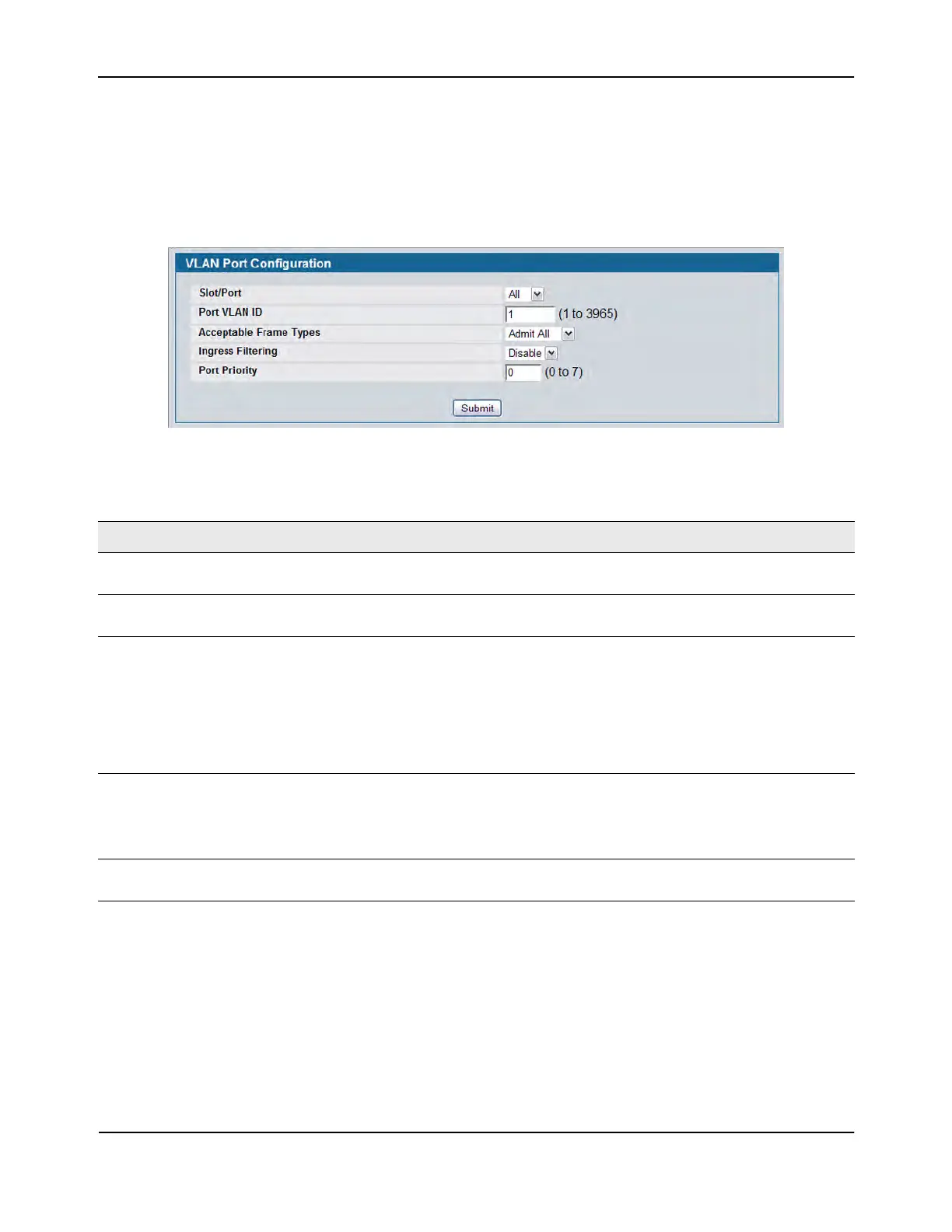

Figure 97: VLAN Port Configuration
• If you change any information on the page, click Submit to apply the changes to the system.
Table 83: VLAN Port Configuration Fields
Field Description
Slot/Port Select the physical interface for which you want to display or configure data.
Select All to set the parameters for all ports to same values.
Port VLAN ID Specify the VLAN ID you want assigned to untagged or priority tagged frames
received on this port. The factory default is 1.
Acceptable Frame Types Specify how you want the port to handle untagged and priority tagged frames.
Whichever you select, VLAN tagged frames will be forwarded in accordance
with the IEEE 802.1Q VLAN standard. The factory default is Admit All.
• VLAN Only: The port will discard any untagged or priority tagged frames it
receives.
• Admit All: Untagged and priority tagged frames received on the port will
be accepted and assigned the value of the Port VLAN ID for this port.
Ingress Filtering Specify how you want the port to handle tagged frames:
• Enable: A tagged frame will be discarded if this port is not a member of the
VLAN identified by the VLAN ID in the tag.
• Disable: All tagged frames will be accepted. The factory default is disable.
Port Priority Specify the default 802.1p priority assigned to untagged packets arriving at
the port.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
