Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 450
D-Link UWS User Manual

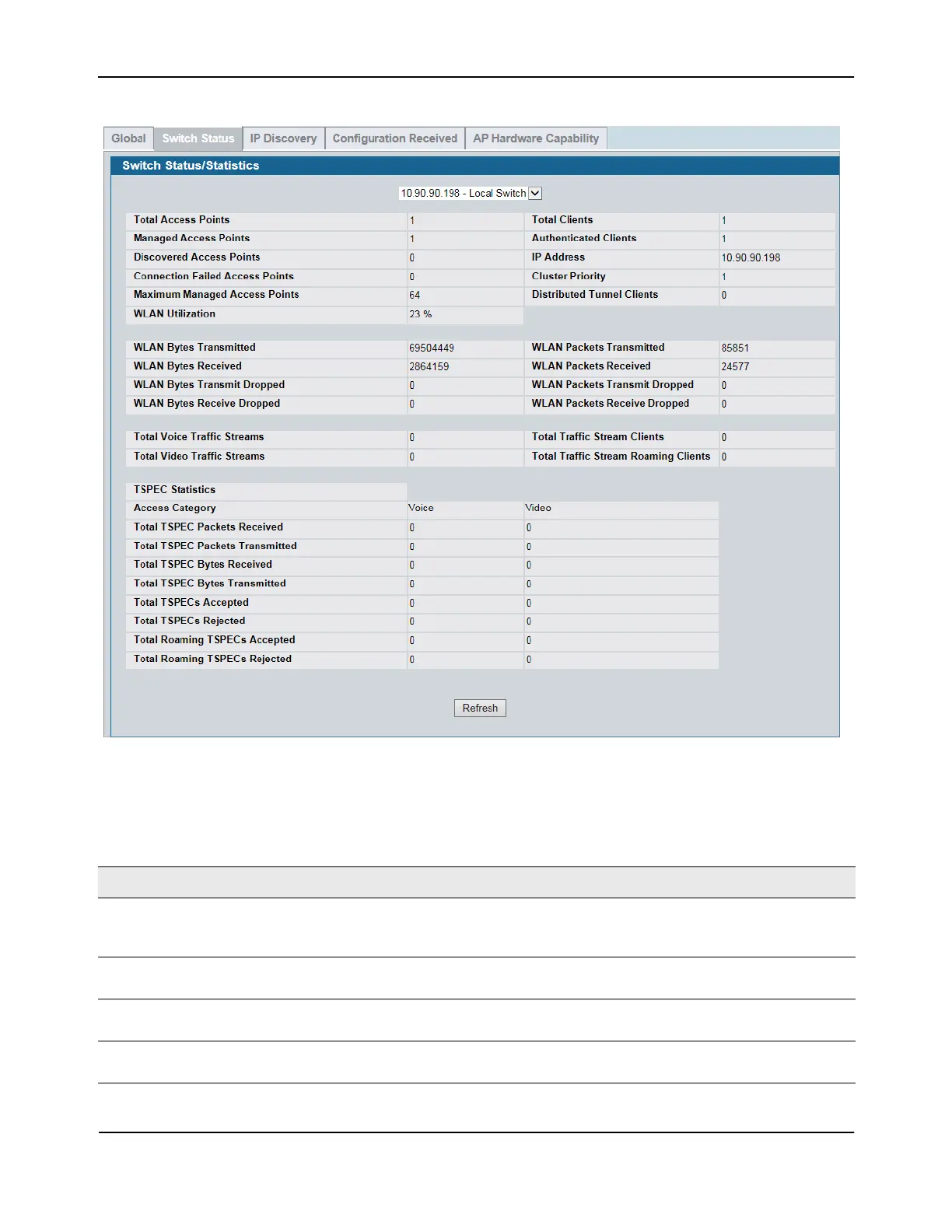

Figure 304: Switch Status/Statistics
Table 258 on page 446 describes the fields on the Wireless Global Status page.
Table 259: Switch Status/Statistics
Field Description
Total Access Points Total number of Managed APs in the database. This value is always equal to the sum
of Managed Access Points, Connection Failed Access Points, and Discovered Access
Points.
Managed Access Points Number of APs in the managed AP database that are authenticated, configured, and
have an active connection with the wireless switch.
Discovered Access
Points
APs that have a connection with the switch, but haven't been completely configured.
This value includes all managed APs with a Discovered or Authenticated status.
Connection Failed
Access Points
Number of APs that were previously authenticated and managed, but currently don't
have connection with the wireless switch.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
