D-Link DWL-8610AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 532
D-Link UWS User Manual
WDS-Managed AP Information
The Wireless Distribution System (WDS)-Managed AP feature allows you to add managed APs to the cluster
using over-the-air WDS links through other managed APs. With WDS, APs may be located outdoors where
wired connection to the data network is unavailable, or in remote buildings that are not connected to the main
campus with a wired network.
The WDS AP group consists of the following managed APs:
• Root AP — Acts as a bridge or repeater on the wireless medium and communicates with the switch via the
wired link
• Satellite AP — Communicates with the switch via a WDS link to the root AP
The WDS links are secured using WPA2 Personal authentication and AES encryption.
For more information about the WDS feature, see “Configuring the Wireless Distribution System” on page 641
WDS Group Status Summary
The WDS Group Status Summary page displays summary information about configured WDS links. At least
one group must be configured for the fields to display. To configure a WDS AP group, use the pages available
within the WLAN > WDS folder.

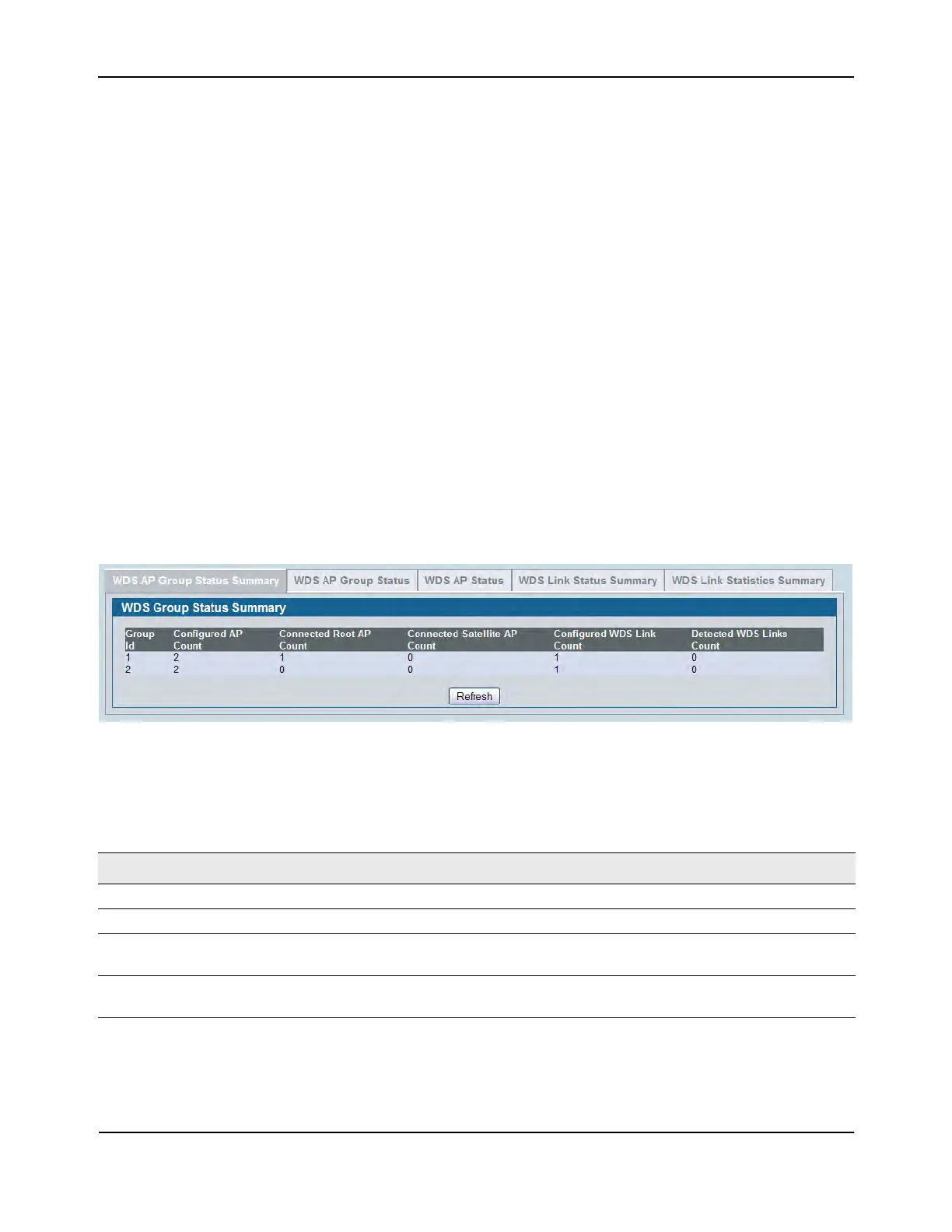

Figure 351: WDS Group Status Summary
The following table describes the fields on the WDS Group Status Summary page.
Table 319: WDS Group Status Summary
Field Description
Group ID Unique number that identifies the WDS AP group
Configured AP Count Number of APs configured in this WDS AP group
Connected Root AP
Count
Number of root APs currently being managed by the switch that are members of this
WDS AP group.
Connected Satellite AP
Count
Number of satellite APs currently being managed by the switch that are members of
this WDS AP group.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
